Enclosure & Accessories

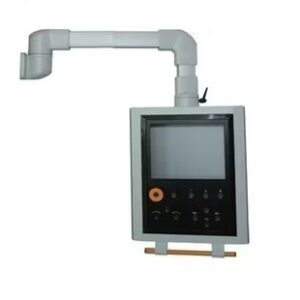

XNCP60 / 105 / 155 / 180 series cantilever control box

Effective mounting depth :
CP60： 60mm (back mounted front plate); 66mm (front mounted front plate)
CP105: 105mm (back mounted front plate); 111mm (front mounted front plate)
CP155: 152.5mm (back mounted front plate); 158.5mm (front mounted front plate)
CP180: 176.5mm (back mounted front plate); 182.5mm (front mounted front plate)

The max customized size : Front plate width<700mm; Front plate height<800mm

Protection grade : Back opening door: IP54; Backplate fixed by screw : IP65

Material: profiles and Handle: aluminum alloy 6063
Angle parts and Handle fixation: die casting aluminum alloy 102

Color:
profiles and Handle: natural colour of anodic aluminum oxide
Angle parts and Handle : rock grey, similar to RAL7012
Back opening door (backplate): 3mm aluminum plate
Surface spraying: silver grey

ASK FOR PRICE

XNEB Smart Control Box Series

Material : Cold rollled steel sheet
Surface Treatment : Phosphating Coated for Box body and door plate, power coating for outside, color is RAL7035 orange peel texture, galvanized mounting plate.
Protection Grade : IP56 (acc. to GB/T 4208-2017)
Standard Configuration : Door Plate, box body, Sealing Strip, grounding set, mounting plate, door lock
Plate Thickness : Box Body : 1.2-1.5mm Door Plate : 1.5mm Mounting Plate : 2.5mm

ASK FOR PRICE

XNGB Vertical Control Box Series

Material : Cold rollled steel sheet
Surface Treatment : Phosphating Coated for Box body and door plate, power coating for outside, color is RAL7035 orange peel texture, galvanized mounting plate.
Protection Grade : IP56 (acc. to GB/T 4208-2017)
Standard Configuration : Door Plate, box body, Sealing Strip, grounding set, mounting plate, door lock (Switch Lock)
Plate Thickness : Box Body : 1.5mm Door Plate : 2.0mm Mounting Plate : 2.5mm

ASK FOR PRICE

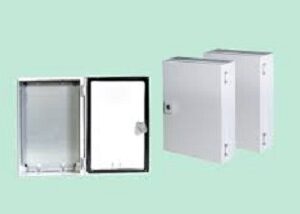

XNGB Wall Mounted Box Series

Material : Cold rollled steel sheet
Surface Treatment : Phosphating Coated for Box body and door plate, power coating for outside, color is RAL7035 orange peel texture, galvanized mounting plate.
Protection Grade : IP56 (acc. to GB/T 4208-2017)
Standard Configuration : Door Plate, box body, Sealing Strip, grounding set, mounting plate, door lock
Plate Thickness : Box Body : 1.5mm, Door Plate : 2.0mm Mounting Plate : 2.5mm

ASK FOR PRICE

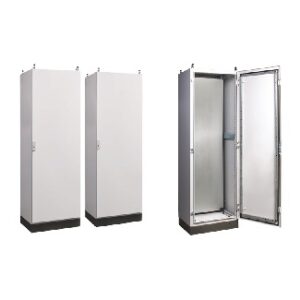

XNKP combined electrical cabinet series

Material : Cold rollled steel sheet
Surface Treatment : Phosphating coated for cabinet, powder coating for outside, colour is RAL7035 orange Peel texture, galvanized mounting Plate.
Protection Grade : IP54 (acc. to GB/T 4208-2017)
Standard Configuration : Front door, back plate, mounting plate, cabinet body, sealing strip, door lock, side plate (optional)
Plate Thickness : Frame: 9-fold profiles 1.5mm Door plate: 2.0mm Back plate and side plate: 1.5mm Mounting plate: 2.5mm

ASK FOR PRICE

ASK FOR PRICE

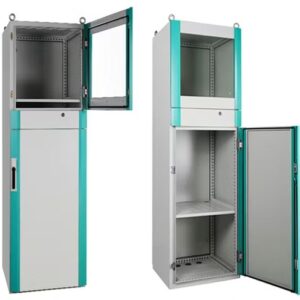

XNPC Computer Cabinet series

Material : Cold rolled steel sheet
Surface treatment : Phosphating coated for cabinet, powder coating for outside, main body in colour RAL7035 texture with decoration strip in colour RAL5018 texture, the colour of laminated plate and cabinet body is same.
Protection grade : IP54 (acc. to GB/T 4208-2017）
Standard configuration : Cabinet body, back door plate, front upper glass door, front lower steel door, keyboard drawer, sealing strips, laminated plate, door lock, casters (optional)
Plate thickness : Decoration strip: Cold rolled steel sheet Door plate: 1.5mm Laminated plate: 2.0mm Frame: 9-fold profiles 1.5mm

ASK FOR PRICE
