Cable Entry System, Electrical, Industrial Solution

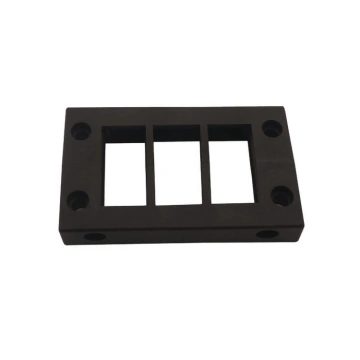

10 Cable Entry Frame (XNL 10)
Cable Entry Frame (XNL 10)
Material : PA 66 Halogen Free
Colour : Black
Temperature : -40° C to 140° C (Static)
IP Rating : IP54 / IP65
Flame Class : UL94: V0
Cut-Out Size : 36*65mm
Frame Height : 17mm
₹8,000.00 ₹10,500.00
Cable Entry Frame (XNL 10)
Part No. : XNL 10/ 3 – XN Small & Medium
| Mounting options | Screw type mounting, Snap-in with XNL-SNAP |
| For max. no. of cables | 9 |
| Max. cable diameter | 35 mm |
| Length | 100 mm |
| Width | 62 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Suitable for grommets | 2 x XN small, 1 x XN large |
Part No. : XNL 10/6 – XN Small
| Mounting options | Screw type mounting, Snap-in with XNL-SNAP |
| For max. no. of cables | 24 |
| Max. cable diameter | 15 mm |
| Length | 100 mm |
| Width | 62 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Suitable for grommets | 6 x XN small |
