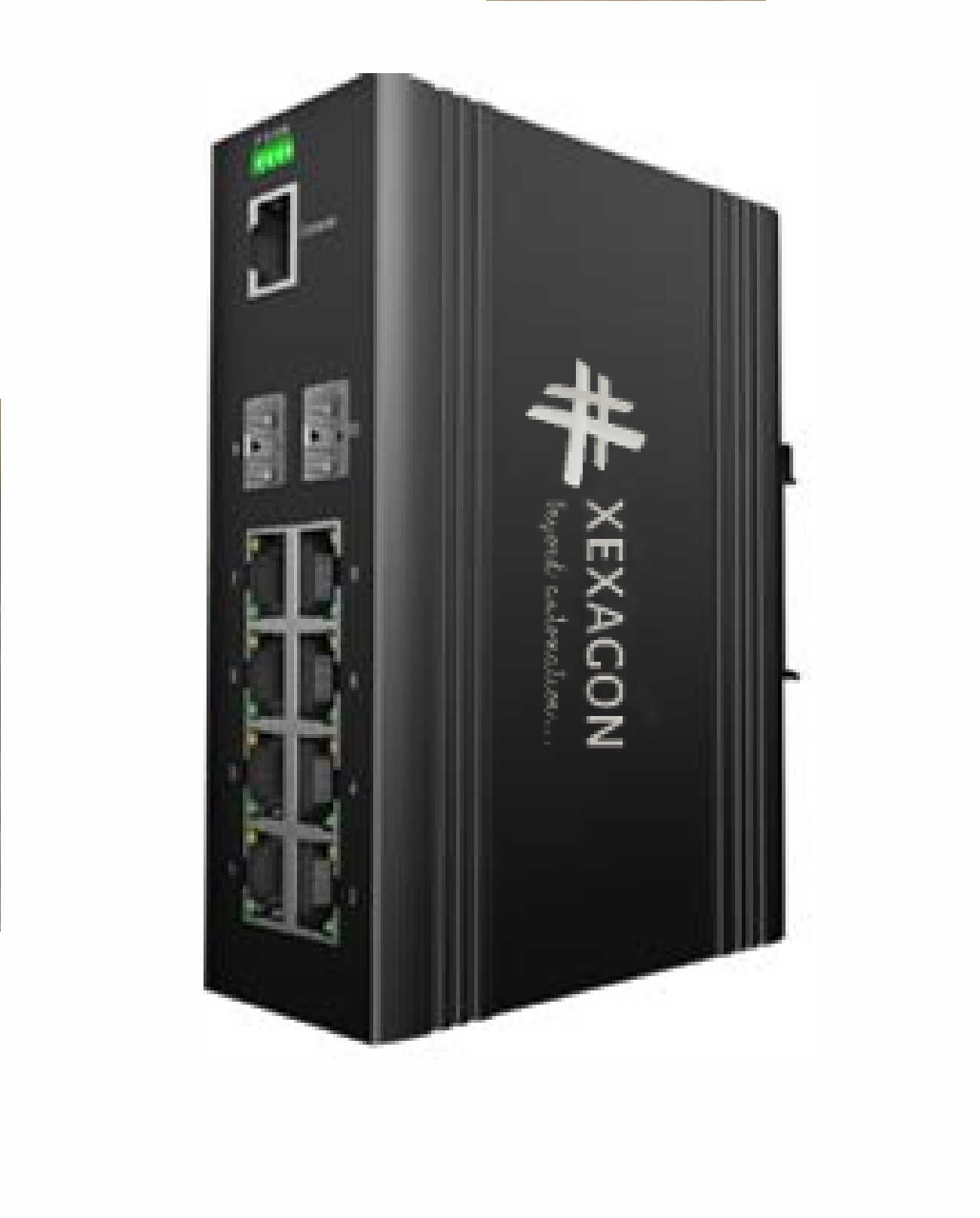

2*1000 Base-X + 8*10/100/1000Base-T Managed Industrial Ethernet Switches
Delivery Time :- 3-4 week
XNTN-9000-75-2GX8GT-M
2*1000 Base-X, 8*10/100/1000Base-T
Managed Industrial Ethernet Switches
Input Voltage: DC12~58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours
₹19,000.00 ₹24,700.00
| Provider Mode Ports | |||
| Fixed port | 2*1000 Base-X， 8*10/100/1000 Base-T | ||
| Management Port | Support Console | ||
| Power interface | Phoenix terminal, dual power input | ||
| LED Indicators | PWR，Link/ACT LED | ||
| Cable Type & Transmission Distance | |||
| Twisted-pair | 0-100m（CAT5e,CAT6） | ||
| Monomode optical fiber | 20/40/60/80/100KM | ||
| Multimode optical fibre | 550m | ||
| Network Topology | |||
| Ring topology | Support | ||
| Star topology | Support | ||
| Bus topology | Support | ||
| Tree Topology | Support | ||
| Hybrid topology | Support | ||
| Electrical Specifications | |||
| Input voltage | DC12~58V | ||
| Total Power consumption | ＜10W | ||
| Layer 2 Switching | |||
| Switching capacity | 20G | ||
| Packet forwarding rate | 14.88Mpps | ||
| MAC address table | 8K | ||
| Buffer | 4.1M | ||
| Forwarding delay | <10us | ||
| MDX/MIDX | Support | ||
| VLAN | Support 256 | ||
| GARP VLAN | Support | ||
| Protocol VLAN | Support | ||
| Voice VLAN | Support | ||
| Surveillance VLAN | Support | ||
| MAC VLAN | Support | ||
| Ether channle/ 802 .3ad | Support | ||
| LACP | Support | ||
| Interface Speed | Support | ||
| Duplex Mode | Support | ||
| Flow control | Support | ||
| Jumbo Frame | Support | ||
| DHCP Client | Support | ||
| SNTP Client | Support | ||
| Port Statistics | Support | ||
| Protected Ports | Support | ||
| EEE | Support | ||
| ERPS | Support | ||
| LLDP | Support | ||
| LLDP 802.1 TLV | Support | ||
| MSTP / RSTP / STP | Support | ||
| STP BPDU Filter | Support | ||
| STP BPDU guard | Support | ||
| STP Port Fast | Support | ||
| IGMP Snooping | Support | ||
| MLD Snooping | Support | ||
| MVR | Support | ||
| Layer 3 Function | |||
| IPV4 management address | Support | ||
| IPV6 management address | Support | ||
| Static Routes IPv4 | 32 | ||
| Static Routes IPv6 | 32 | ||
| ARP | Support | ||
| Loopback Interface | Support | ||
| DHCP Server | Support | ||
| DNS Server | Support | ||
| Convergence | |||
| ACL | Support MAC standard/extended ACL Support IPV4 standard/extended ACL Support IPV6 standard/extended ACL |
||
| QoS | Support QOS retagging Support port trust Support port speed limit Support exit queue speed limit Support SP and WRR scheduling algorithms Support COS mapping, DSCP mapping and IP priority mapping |
||
| Management | |||
| CLI | Support | ||
| Management IP | Support IPv4/IPv6 | ||
| Telnet/SSH | Support | ||
| WEB management | Support | ||
| SNMP | Support SNMPv1/v2c/v3 | ||
| User Management | Support | ||
| System Log | Support | ||
| Configuration File Download/Upload | Support | ||
| Upgrade Firmware | Support | ||
| RMON | Support | ||
| Security | |||
| Manage channel configuration | Support | ||
| AAA authentication | Support | ||
| 802.1X authentication | Support | ||
| MAC-Based authentication | Support | ||
| WEB-Based authentication | Support | ||
| DoS anti-attack | Support | ||
| Dynamic ARP check | Support | ||
| DHCP Snooping | Support | ||
| IP Source Guard | Support | ||
| Port Security | Support | ||
| Protected Ports | Support | ||
| Storm control | Support | ||
| Equipment diagnosis | |||
| RAM Log | Support | ||
| Flash log | Support | ||
| Port Mirror | Support | ||
| Ping | Support | ||
| Traceroute | Support | ||
| Ethernet port test | Support | ||
| Optical module information | Support | ||
| UDLD protocol | Support | ||
| Environment | |||
| Operating temperature | -40℃~+75℃ The device is tested for 4 hours at temperatures in 85°C |
||
| Storage temperature | -40℃~+85℃ | ||
| Relative humidity | 5%~95% （non-condensing） | ||
| Thermal methods | Fanless, natural cooling | ||
| MTBF | 100,000 hours | ||
| Mechanical Dimensions | |||
| Product size | 46X104X143mm | ||
| Installation Method | DIN-rail | ||
| Weight | 0.55KG | ||
| EMC&INGRESS PROTECTION | |||
| IP Level | IP40 | ||
| Surge protection of Power | 4KV/2KV | ||
| Surge protection of Ethernet port | 4KV/2KV | ||
| ESD | 8K/15K | ||
| Free fall | 0.5m | ||
| Authentication | |||
| Authentication | CCC/CE/FCC/RoHS | ||
| Accessories | |||
| Accessories | Device, Terminals, Specification, Certificate Adapter(optional) |
||
