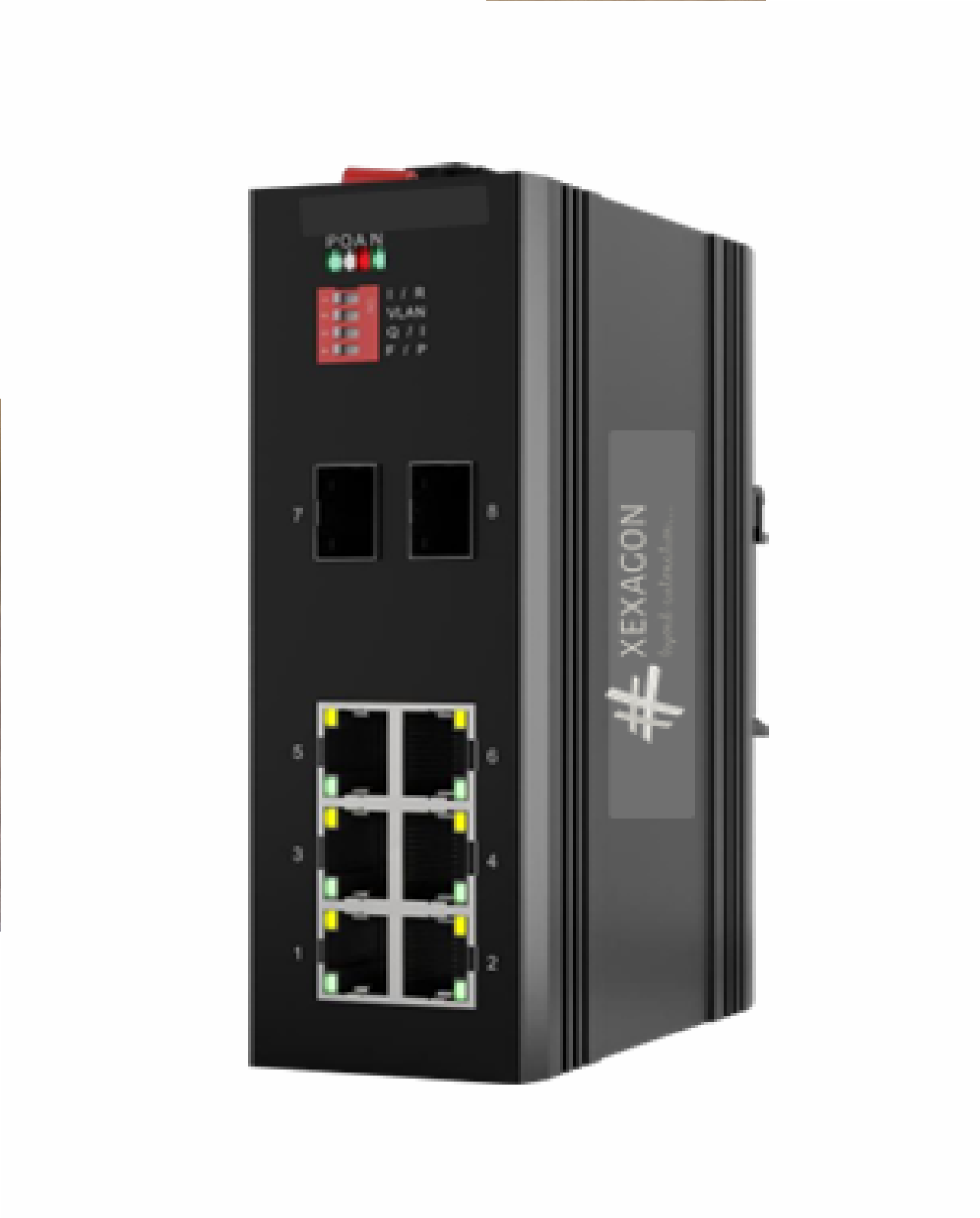

2*100Base-FX + 6*10/100Base-TX Managed Ethernet Switch
Delivery Time :- 3-4 week
XNTN-9000-65-2FX6TX
2*100Base-FX, 6*10/100Base-TX
Industrial Ethernet Switches
Input Voltage: DC12~58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hour
₹16,500.00 ₹21,450.00
| Provider Mode Ports | |||
| Fixed port | 2*100 Base-FX， 6*10/100Base-TX | ||
| Power interface | Phoenix terminal, redundant dual power supply | ||
| LED Indicators | PWR，OPT ,NMC，ALM | ||
| Dialing instructions (NoN-PoE) | |||
| 1 I/R | Port Isolation | ||
| 2 VLAN | VLAN Isolation | ||
| 3 Q/I | QoS | ||
| 4 F/P | Flow Control | ||
| Dialing instructions (PoE) | |||
| 1 I/R | Auto Restart | ||
| 2 VLAN | VLAN Isolation | ||
| 3 Q/I | QoS | ||
| 4 F/P | Priority power supply and QoS | ||
| Cable Type & Transmission Distance | |||
| Twisted-pair | 0-100m（CAT5e,CAT6） | ||
| Monomode optical fiber | 20/40/60/80/100KM | ||
| Multimode (optical) fiber | 550m | ||
| Network Topology | |||
| Ring topology | Unsupported | ||
| Star topology | Support | ||
| Bus topology | Support | ||
| Tree Topology | Support | ||
| Hybrid topology | Support | ||
| Electrical Specifications | |||
| Input voltage | DC12-58V | ||
| Total Power consumption | <6W | ||
| Voltage Alarm | Support | ||
| Layer 2 Switching | |||
| Switching capacity | 5.6G | ||
| Packet forwarding rate | 4.16 Mpps | ||
| MAC address table | 8K | ||
| Buffer | 1M | ||
| Forwarding delay | <5us | ||
| MDX/MIDX | Support | ||
| Flow control | Support | ||
| Jumbo Frame | Support 1632 Bytes | ||
| WatchDog | Support | ||
| Port Isolation | Support | ||
| Environment | |||
| Operating temperature | -40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃ |
||
| Storage temperature | -40℃~+85℃ | ||
| Relative humidity | 5%~95% non-condensing | ||
| Thermal methods | Fanless, natural cooling | ||
| MTBF | 100,000 hours | ||
| Mechanical Dimensions | |||
| Product size | 48X104X143mm | ||
| Installation Method | DIN rail | ||
| Weight | 0.6KG around | ||
| EMC & Ingress Protection | |||
| IP Level | IP40 | ||
| Surge protection of Power | IEC 61000-4-5 Level X（6KV/6KV）（8/20us） | ||
| Surge protection of Ethernet port | IEC 61000-4-5 Level X（4KV/4KV）（10/700us） | ||
| RS | IEC 61000-4-3 Level 3（10V/m） | ||
| EFI | IEC 61000-4-4 Level 3（1V/2V） | ||
| CS | IEC 61000-4-6 Level 3（10V/m） | ||
| PFMF | IEC 61000-4-8 Level 4（30A/m） | ||
| DIP | IEC 61000-4-11 Level 3 （10V） | ||
| ESD | IEC 61000-4-2 Level 4（8K/15K） | ||
| Free fall | 0.5m | ||
| Authentication | |||
| Authentication | CCC, CE, FCC, RoHS | ||
| Accessories | |||
| Accessories | Device, Terminals, Specification, Certificate, power adapter(optional) | ||
Data Sheet
Test / Quality Data
Drawing
