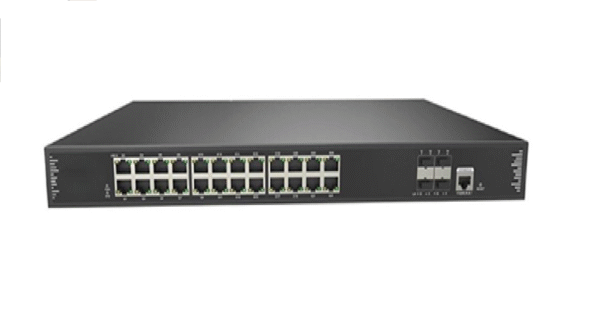

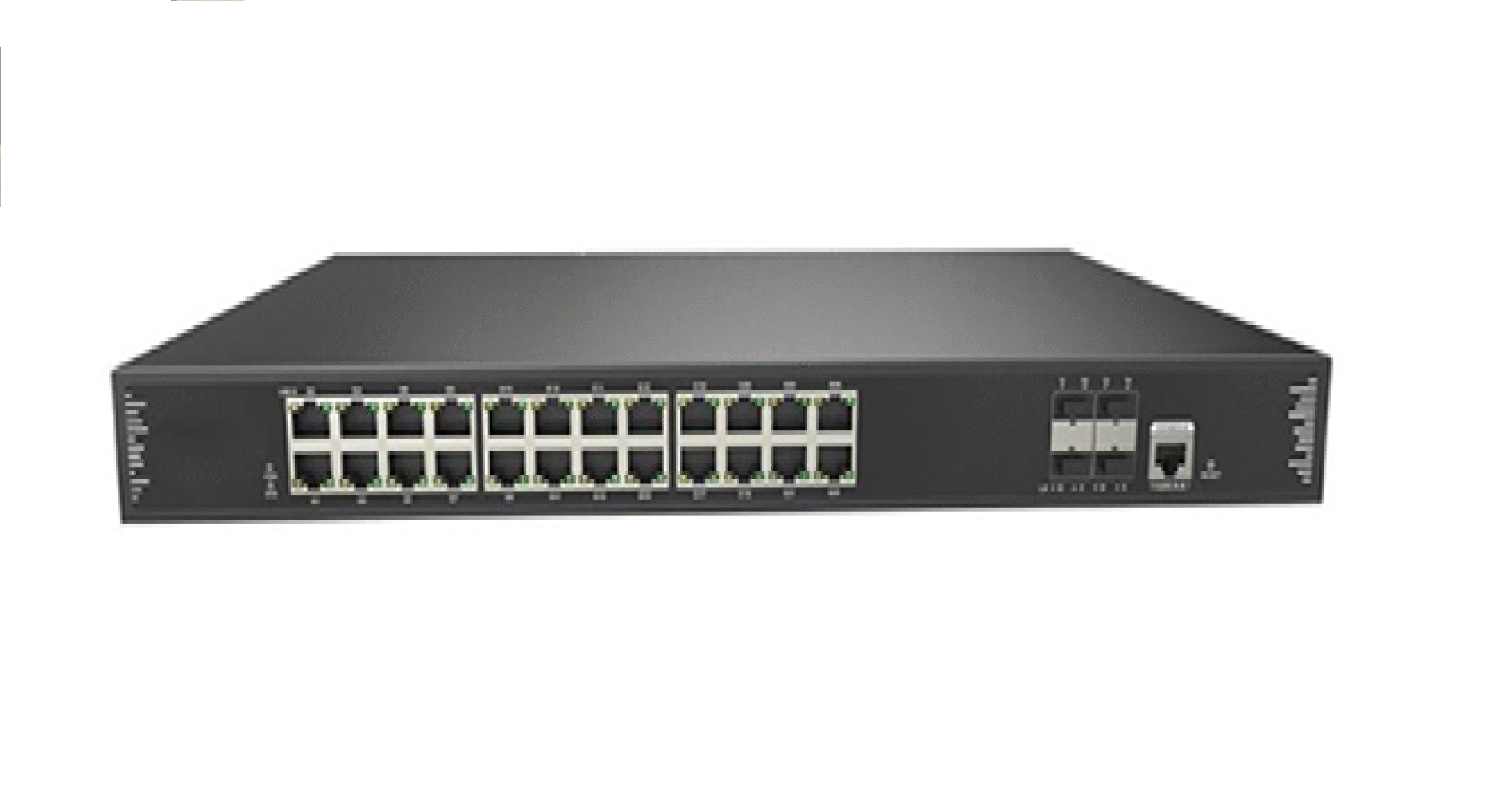

24*10/100/1000 RJ45 ports + 4*1/10G uplink SFP fiber ports Managed Ethernet Switch
Delivery time :- 3-4 week
XN-ONV56028FM
The XN-ONV56028FM is a 10G uplink L2+ managed Ethernet fiber switch independently developed by ONV.
It has 24*10/100/1000Base-T adaptive RJ45 ports and
4*1/10G uplink SFP+ fiber ports. Each port can support wire-speed forwarding.
The XN-ONV56028FM has L2+ network management functions, supports IPV4/ IPV6 management, static routing forwarding,
complete security protection mechanism, perfect ACL/QoS strategy, and rich VLAN functions,
which are easy to manage and maintain.
₹57,950.00 ₹75,335.00
| Model XN-ONV56028FM | ||
| Interface Characteristics | ||
| Fixed Port | 1*Console RS232 port (115200,N,8,1) 4*1/10G uplink SFP+ fiber ports (Data) 24*10/100/1000Base-T RJ45 ports (Data) |
|
| Ethernet Port | Port 1-24 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
| Optical Fiber Port | 1/10G SFP+ optical fiber port, default no include optical module (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
| Optical Fiber Port Expansion |
Turbo overclocking 2.5G optical module expansion and ring network | |
| Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m, 0-300m/ (10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
| Chip Parameter | ||
| Network Management Type |
L2+ | |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-LR/SR, IEEE 802.3x |
|
| Forwarding Mode | Store and Forward (Full Wire Speed) | |
| Switching Capacity | 128Gbps (non-blocking) | |
| Forwarding Rate@64byte |
95.23Mpps | |
| CPU | 800MHz | |
| DRAM | 1Gbit | |
| FLASH | 128Mbit | |
| MAC | 16K | |
| Buffer Memory | 12Mbit | |
| Jumbo Frame | 12000byte | |
| LED Indicator | Power: PWR (Yellow), System: SYS(Yellow), Network: Link/ Act (Yellow), Fiber port: L/A (Green) |
|
| Reset Switch | Yes, press and hold the switch for 10 seconds and release it to restore the factory settings |
|
| Power Supply | ||
| Total PWR / Input Voltage |
60W/ (AC100-240V) | |
| Power Consumption | Standby<20W, Full Load<45W | |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 1.0A | |
| Physical Parameter | ||
| Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 440*290*44.5mm | |
| Net /Gross Weight | 3.4kg / 4.2kg | |
| Installation | Desktop, 1U/19’’ cabinet | |
| Certification & Warranty | ||
| Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30 | ||
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
| Warranty | 3 years, lifelong maintenance. | |
| Network Management Feature | ||
| Interface | IEEE 802.3x flow control (Full duplex) Port exception protection mechanism Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view Limit the speed of the message flow of the inbound and outbound ports, mini granularity is 16Kbps and max 1Gbps |
|
| L3 Feature | ARP protocol, max 1024 entries OSPFv1/v2, OSPFv3, RIPv1/v2, RIPng Static route /default route max 128 entries L2+ network management function, IPV4/IPV6 dual-stack management |
|
| VLAN | VLAN based on MAC, VLAN based on the protocol Port configuration of Access, Trunk, Hybrid, GVRP VLAN protocol (4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration |
|
| LACP dynamic aggregation, Static aggregation Port Aggregation Max 14 aggregation groups and 8 ports per group. |
||
| Spanning Tree | STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
| ERPS Ring Network Support ERPS, recovery time less than 20ms, ITU-T G.8032 | ||
| Multicast | MLD Snooping, Multicast VLAN User quick log out, MVR (Multicast VLAN Registration) IGMP Snooping v1/v2/v3 and 1024 multicast groups at most |
|
| Mirroring | Bidirectional traffic mirroring for basic ports Supports 1-to-multiple mirroring, supports up to 4 port sessions |
|
| QoS | Flow-based redirection, Flow-based rate limiting Queue Scheduling Algorithm (SP, WRR, SP+WRR) 8*Output queues of each port, 802.1p/DSCP priority mapping Flow-based packet filtering, Priority Mark/ Remark, Diff-Serv QoS |
|
| ACL | ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
|
| Power Consumption | Standby<20W, Full Load<45W | |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 1.0A | |
| Physical Parameter | ||
| Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 440*290*44.5mm | |
| Net /Gross Weight | 3.4kg / 4.2kg | |
| Installation | Desktop, 1U/19’’ cabinet | |
| Certification & Warranty | ||
| Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30 | ||
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
| Warranty | 3 years, lifelong maintenance. | |
| Network Management Feature | ||
| Interface | IEEE 802.3x flow control (Full duplex) Port exception protection mechanism Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view Limit the speed of the message flow of the inbound and outbound ports, mini granularity is 16Kbps and max 1Gbps |
|
| L3 Feature | ARP protocol, max 1024 entries OSPFv1/v2, OSPFv3, RIPv1/v2, RIPng Static route /default route max 128 entries L2+ network management function, IPV4/IPV6 dual-stack management |
|
