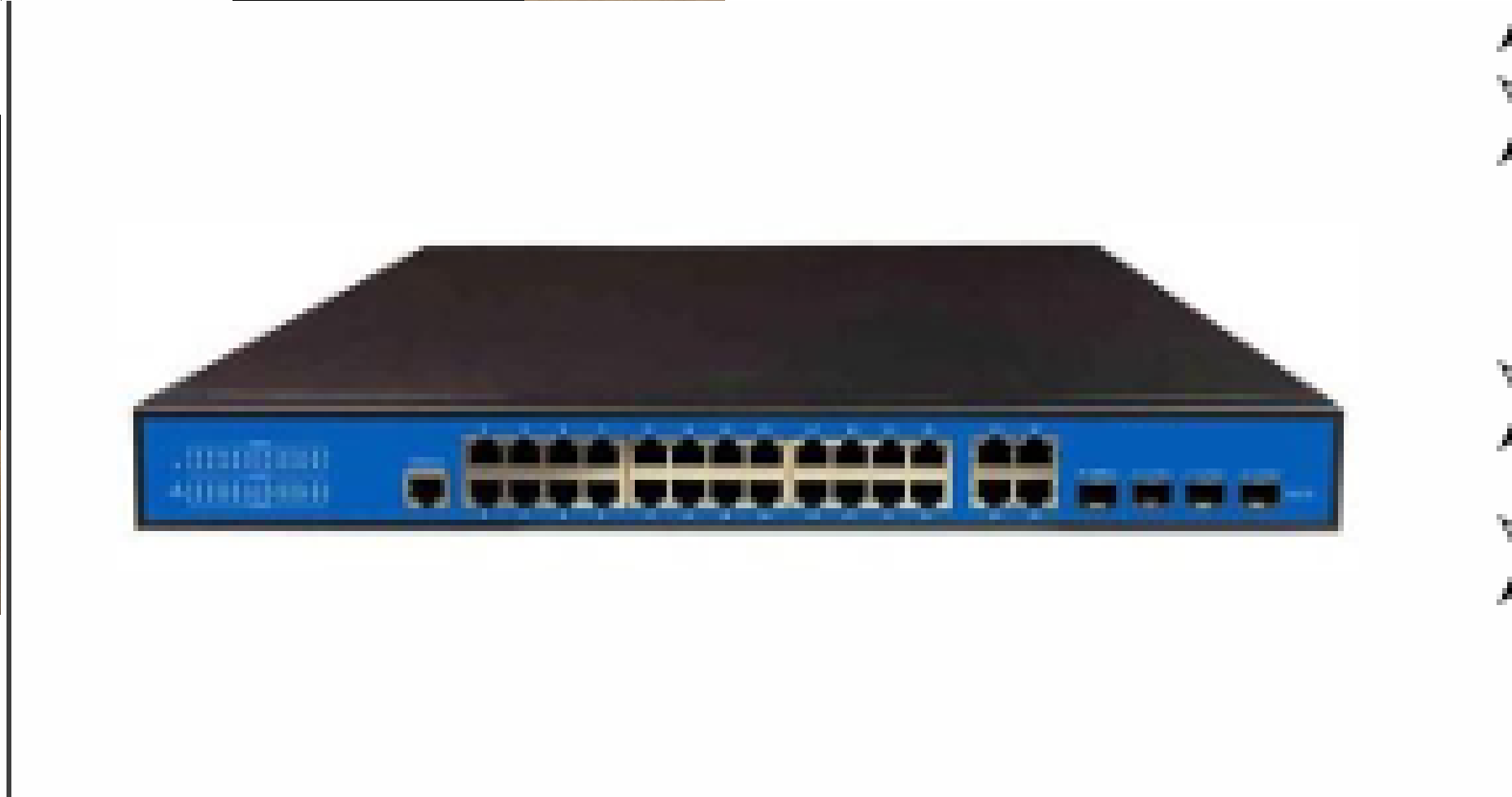

24*GE RJ45 POE + 4*Combo Ports POE Managed Switch
Delivery Time :- 3-4 week
XC-S2924GM-AP
➢24*RJ45 10/100/1000M + 4*1000M Combo Port
PoE Switch,1-24 ports support IEEE 802.3af/at;
➢PoE port support AF/AT intelligent recognition. Standard
power is 15.4W/port, Maximum power: 30W/port;
➢Only support 1,2(+)/3,6(-);
➢Support QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB,
VLAN, ERPS etc.;
➢Switching capacity:56Gbps, MAC table:8K;
➢POE port can be real-time network management, timed
on/off, can force POE working mode, real-time display of
POE port power;
₹59,000.00 ₹76,700.00
| Fixed Port | 24*10/100/1000Base-T PoE ports (Data/Power) 4*100/1000 Combot port (Data) 1 * RS232 console port (115200, N,8,1) |
| Ethernet Port | 10/100/1000Base-T(X), auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
| SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| Optical Cable | Multi-mode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
| Network Management Type |
L2+ |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 56Gbps (Non-blocking) |
| Forwarding Rate@64byte |
26.78Mpps |
| MAC | 8K |
| Buffer Memory | 6M |
| Jumbo Frame | 9.6K |
| LED Indicator | Power: PWR (green), system: SYS (yellow), network: Link (yellow), fiber port :L/A (green), PoE: PoE (green), rate: Speed (green) |
| Reset Switch | Yes, One-button factory reset | ||
| PoE Port | Port 1 to 24, IEEE802.3af/at @ POE | ||
| PoE Management | Total power limit of PoE power supply PoE output power allocation, off& af &at PoE output priority configuration PoE working status Delay start of power supply Scheduling of PoE operation and time |
||
| Power Supply Pin | Default 1/2 (+), 3/6 (-) | ||
| Max Power Per Port | 30W; IEEE802.3af/at | ||
| Total PWR / Input Voltage |
400W (AC100-240V) | 600W (AC100-240V) | |
| Power Consumption | Standby<16W, Full Load<240W | Standby<20W, Full Load<380W | |
| Power Supply | Built-in power supply, AC 100~240V 50-60Hz 4.1A |
Built-in power supply, AC 100~240V 50-60Hz 5.0A |
|
| Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing | ||
| Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing | ||
| Dimension (L*W*H) | 440*290*44.5mm | ||
| Net /Gross Weight | <4.5kg / <5kg | <4.9kg / <5.5kg | |
| Installation | Desktop, 19-inch 1U cabinet | ||
| Lightning protection / protection level |
Lightning protection: 4KV 8/20us; Protection level: IP30 | ||
| Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS | ||
| Warranty | 3 years, lifelong maintenance. | ||
| Interface | IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting |
||
| Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. |
|
| Layer 3 Features | L2+ network management, IPV4/IPV6 management L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs |
| VLAN | 4K VLAN based on port, IEEE802.1q VLAN based on the protocol VLAN based on MAC Voice VLAN, QinQ configuration Port configuration of Access, Trunk, Hybrid |
| Port Aggregation | LACP, Static aggregation Max 9 aggregation groups and 8 ports per group. |
| Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol |
G.8032 (ERPS), Recovery time less than 20ms 250 Ring at most, Max 254 devices per ring. |
| Multicast | MLD Snooping v1/v2, Multicast VLAN IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS | Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | Port-based Issuing ACL, ACL based on port and VLAN |
| L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
| Security | IP-MAC-VLAN-Port binding ARP inspection, Anti-DoS attack AAA & RADIUS, MAC learning limit Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection |
| DHCP | DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Management | One-key recovery Cable Diagnose, LLDP Web Management (HTTPS) NTP, System work log, Ping Test CPU instant utilization status view Console/AUX Modem/Telnet/SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP, SNMP V1/V2C/V3 NMS – smart network management system platform (LLDP+SNMP) |
| System | Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
