Automation, Ethernet Switch, Industrial Solution, MANAGED SWITCH

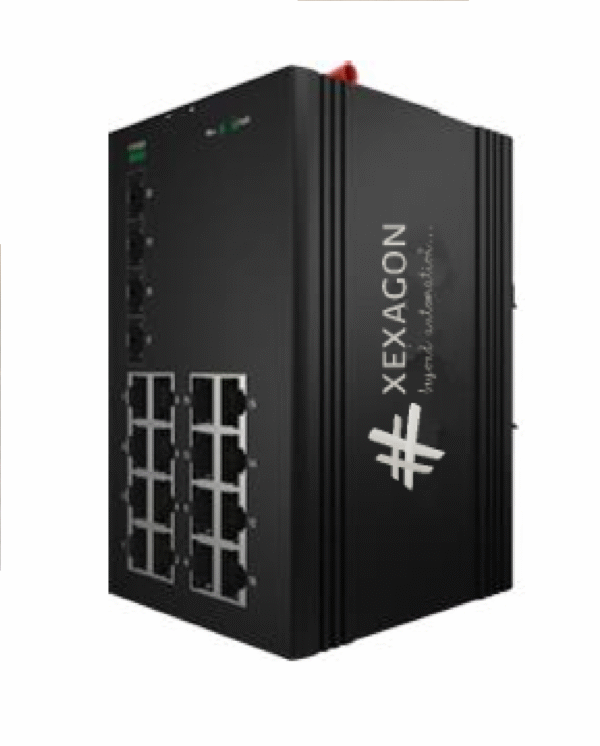

4*10G Base-X +16*10/100/1000Base-T Managed Ethernet Switches
Delivery Time :- 3-4 week
XNTN-9000-75-4GX16GT-V
Input Voltage: DC12~58V(Non-PoE)
Operating Temperature:-40℃ ~ +75℃(Non-PoE),-40℃~+70℃(PoE)
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF:100000Hours
₹38,000.00 ₹49,400.00
| Provider Mode Ports | |
| Fixed port | 4*10G Base-X， 16*10/100/1000 Base-T |
| Management Port | Support Console |
| Power interface | Phoenix terminal, dual power input |
| LED Indicators | PWR，Link/ACT LED |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m（CAT5e,CAT6） |
| Monomode optical fiber | 20/40/60/80/100KM |
| Multimode optical fibre | 550m |
| Network Topology | |
| Ring topology | Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Hybrid topology | Support |
| Electrical Specifications | |
| Input voltage | DC12~58V |
| Total Power consumption | ＜26W |
| Layer 2 Switching | |
| Switching capacity | 128G |
| Packet forwarding rate | 101.2Mpps |
| MAC address table | 16K |
| VLAN | Support 4K |
| Buffer | 12M |
| Forwarding delay | <10us |
| MDX/MIDX | Support |
| Flow control | Support |
| Jumbo Frame | Support 10Kbytes |
| Spanning Tree | Support STP/RSTP/MSTP |
| Ring Protocol | Support ERPS |
| Link Aggregation | Support 12 group |
| Multicast | Support IGMP Snooping |
| Port Mirroring | Support |
| Storm Control | Support |
| Interface Counters | Support |
| QINQ | Support |
| 802.1X | Support |
| Radius/MAC Authentication | Support |
| Port Isolation | Support |
| RMON | Support |
| NTP Client | Support |
| DHCP Client | Support |
| DHCP Snooping | Support |
| Ping/Tracert test | Support |
| Dying gasp | Support |
| DDM | Support |
| Convergence | |
| ACL | Support ACL 500 Support IP standard ACL Support MAC expand ACL Support IP expand ACL |
| QoS | Support QoS re-marking, priority mapping Support SP, WRR queue scheduling Support engress rate-limited, egress rate-limit Support Policy-based QoS |
| Management | |
| CLI | Support |
| Console | Support |
| Management IP | Support IPv4/IPv6 |
| Telnet/SSH | Support |
| WEB management | Support |
| SNMP | Support SNMPv1/v2c/v3 |
| User Management | Support |
| System Log | Support |
| Configuration File Download/Upload | Support |
| Upgrade Firmware | Support |
| Environment | |
| Operating temperature | Non-PoE: -40℃~+75℃ PoE: -40℃~+70℃ |
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95% （non-condensing） |
| Thermal methods | Fanless, natural cooling |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product size | 94*104*143mm |
| Installation Method | DIN-rail |
| Weight | 1KG |
| EMC&INGRESS PROTECTION | |
| IP Level | IP40 |
| Surge protection of Power | IEC 61000-4-5 Level X（6KV/6KV）（8/20us） |
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4（4KV/4KV）（10/700us） |
| RS | IEC 61000-4-3 Level 3（10V/m） |
| EFI | IEC 61000-4-4 Level 3（1V/2V） |
| CS | IEC 61000-4-6 Level 3（10V/m） |
| PFMF | IEC 61000-4-8 Level 4（30A/m） |
| DIP | IEC 61000-4-11 Level 3（10V） |
| ESD | IEC 61000-4-2 Level 4（8K/15K） |
| Free fall | 0.5m |
| Authentication | |
| Authentication | CCC/CE/FCC/RoHS |
| Accessories | |
| Accessories | Device, Terminals, Specification, Certificate Adapter(optional) |
