Automation, Ethernet Switch, Industrial Solution, Unmanged Switch

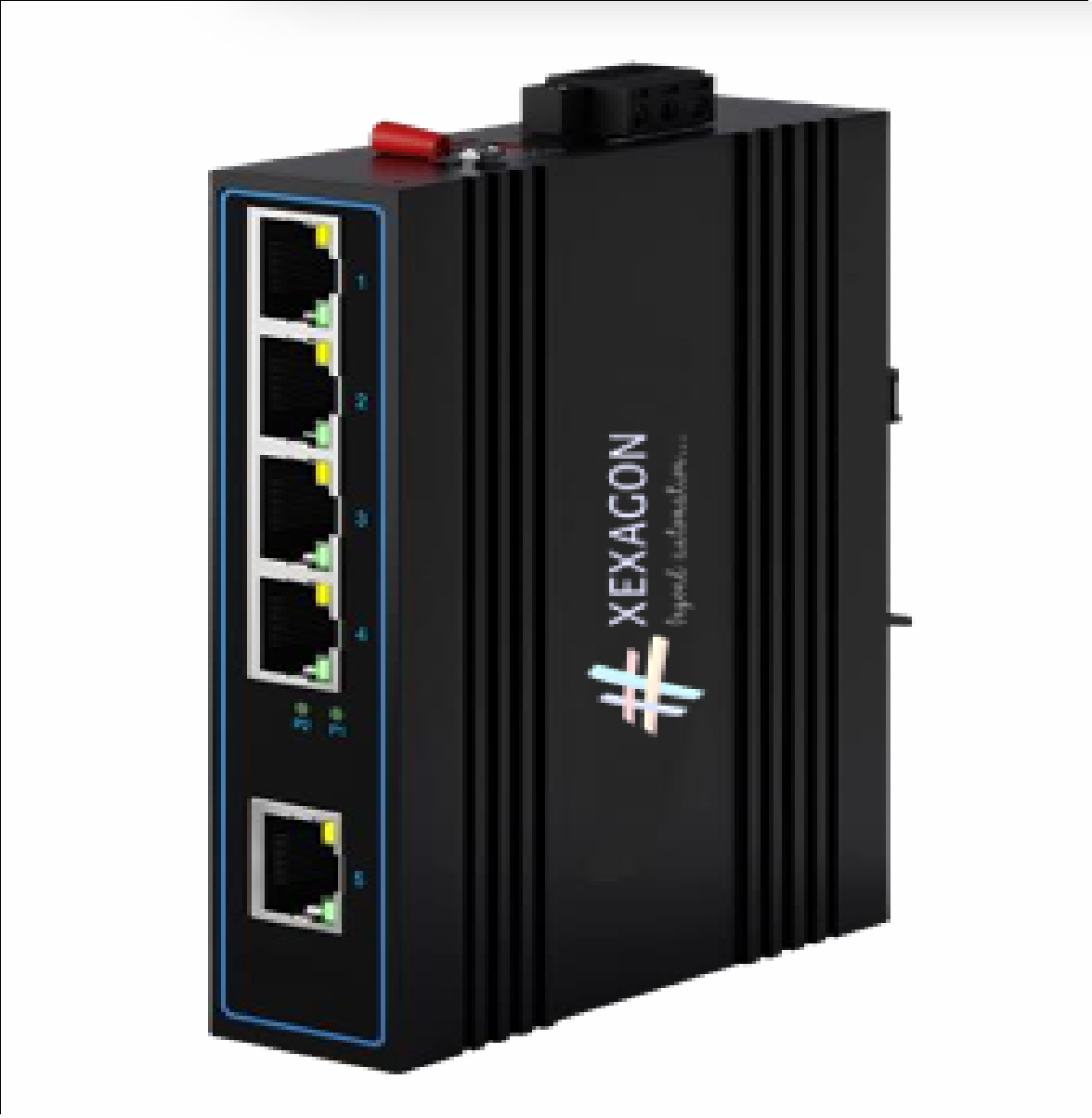

5 PORT UNMANAGED ETHERNET SWITCH
Delivery Time :- 3-4 week
XC-IS0517
5*10/100Base-T
Unmanaged Industrial Switches
Input Voltage: DC12~58V
Operating Temperature: -30℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours
₹2,550.00 ₹3,000.00
| Provider Mode Ports | |
| Fixed port | 5*10/100Base-T |
| Power interface | Phoenix terminal, dual power supply |
| LED Indicators | P1/P2, OPT |
| DIP Switch | |
| 1 LFP | Reserve |
| 2 LGY | Reserve |
| 3 VLAN | Port Isolation |
| 4 BSR | Storm Control Configuration |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m（CAT5e,CAT6） |
| Monomode optical fiber | / |
| Multimode optical fibre | / |
| Network Topology | |
| Ring topology | Unsupported |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Electrical Specifications | |
| Input voltage | DC12~58V |
| Total Power consumption | <5W |
| Layer 2 Switching | |
| Switching capacity | 1G |
| Packet forwarding rate | 0.744Mpps |
| MAC address table | 2K |
| Buffer | 768K |
| Forwarding delay | <5us |
| MDX/MIDX | Support |
| Flow control | Support |
| Jumbo frame | 2K bytes |
| Storm Control | Support |
| Port-Isolation | Support |
| Environment | |
| Operating temperature | -30℃~+75℃ |
| Storage temperature | -30℃~+75℃ |
| Relative humidity | 10%~90% （non-condensing） |
| Thermal methods | Fanless, natural cooling |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product size | 91*118*31mm (W×H×D) |
| Installation Method | DIN-rail |
| Weight | 0.36KG around |
| EMC & Ingress Protection | |
| IP Level | IP40 |
| Surge protection of Power | IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) |
| Surge protection of Ethernet port | IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) |
| RS | IEC 61000-4-3 Level 3（10V/m） |
| EFI | IEC 61000-4-4 Level 3（1V/2V） |
| CS | IEC 61000-4-6 Level 3（10V/m） |
| PFMF | IEC 61000-4-8 Level 4（30A/m） |
| DIP | IEC 61000-4-11 Level 3（10V） |
| EMI | CLASS A |
| ESD | IEC 61000-4-2 Level 4（8K/15K） |
| Free fall | 0.5m |
