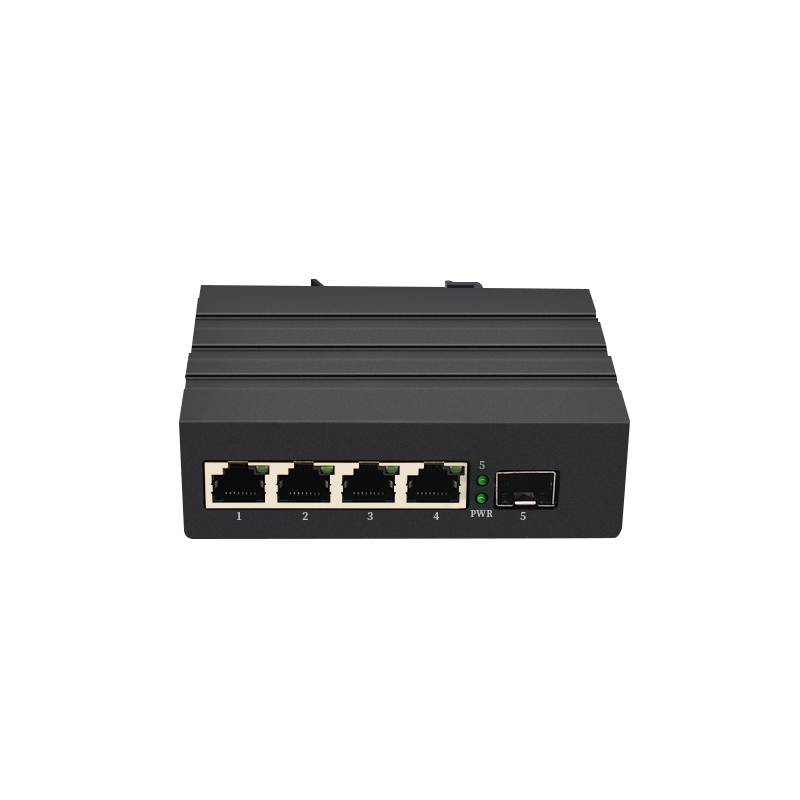

5 Port Unmanaged Industrial Ethernet Switch
Model No :- XNHT-CISF401
This is a 5-port 100M unmanaged industrial switch which provides 4 10/100Base-TX RJ45 Ethernet port and 1 100Base-SX/LX SC optical port.
₹2,288.00 ₹2,974.00
This is a 5-port 100M unmanaged industrial switch which provides 4 10/100Base-TX RJ45 Ethernet port and 1 100Base-SX/LX SC optical port.
Product Features
- 4 10/100Base-TX RJ45 port, 1 100Base-X optical port;
- Support 10/100mpbs speed adaptation.
- All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X function;
- Support high backplane bandwidth to ensure port line-speed forwarding;
- Supports broadcast storm suppression function to improve network stability;
- Redundant DC power supply;
- IEC Class.A electromagnetic protection level, ultra-high EMC electromagnetic compatibility;
- -40℃～+85℃ wide temperature design ensures that the equipment can adapt to various harsh on-site environments;
- DIN rail type installation;
- IP40 protection level, corrugated high-strength metal casing, fanless, low power consumption design.
Product Parameters
| Standards and protocols | IEEE802.310Base-T
IEEE802.3u100Base-TX IEEE802.3z100Base-SX/LX standards IEEE 802.3x flow control |
| Interface information | RJ45 port: 4 10/100M Base-T X port |
| Single-mode SC optical port: 1 100Base-X optical port | |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions
(length*depth*height): 108 mm× 80 mm× 33 mm |
|
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 450 G | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1Gbps |
| Packet forwarding rate (whole machine) : 0.75 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 512K | |
| Power supply | Input voltage: DC 12 V-57V (dual redundant) |
| Power interface: 3- core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 5 W | |
| indicator light | Port light (fluctuation switch control):
Ø Indicator light: 100M Link/ACT green; |
| Power light: green | |
|
Security properties |
Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)
Signal end: common mode ± 4KV, differential mode ± 2KV Power supply end: common mode ± 4KV, differential mode ± 2KV |
|
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 5 years |
