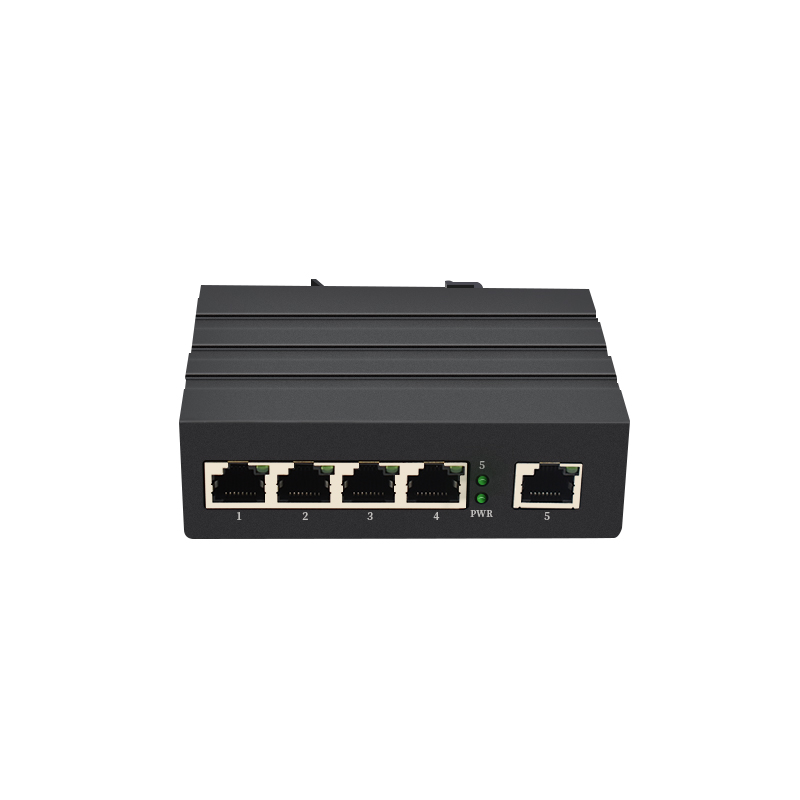

5 Port Industrial Ethernet Switch
Model No :- XNHT- CISF05
This is a 4-port 100M unmanaged industrial switch which provides 5 10/100Base-TX RJ45 Ethernet ports.
₹1,848.00 ₹2,402.00
This is a 4-port 100M unmanaged industrial switch which provides 5 10/100Base-TX RJ45 Ethernet ports.
Industrial switches can be used in various on-site environments and can be flexibly networked. They can be widely used in industrial control automation, road traffic control automation, building automatic control systems, computer room monitoring systems and other industrial application scenarios. They work stably , reliably and efficiently, and can help you create a rock-solid of Industrial Internet of Things.
Product Features
- 5 10/100Base-TX RJ45 port;
- Support 10/100mpbs speed adaptation.
- All ports support half/full duplex auto-negotiation and automatic MDI/MDI-X function;
- Support high backplane bandwidth to ensure port line-speed forwarding;
- Supports broadcast storm suppression function to improve network stability;
- Redundant DC power supply;
- IEC Class.A electromagnetic protection level, ultra-high EMC electromagnetic compatibility;
- -40℃～+85℃ wide temperature design ensures that the equipment can adapt to various harsh on-site environments;
- DIN rail type installation;
- IP40 protection level, corrugated high-strength metal casing, fanless, low power consumption design.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T
IEEE802.3u 100Base-TX IEEE 802.3x flow control |
| Interface information | RJ45 port: 5 10/100M Base-T X port |
| Mechanical properties | Shell material: metal shell |
| Appearance dimensions
(length*depth*height): 108 mm× 80 mm× 33 mm |
|
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: < 450 G | |
| Environmental properties | Working temperature: -40 ℃ ～+ 85 ℃ |
| Storage temperature: -40 ℃ ～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1Gbps |
| Packet forwarding rate (whole machine) : 0.75 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 512K | |
| Power supply | Input voltage: DC 12 V-57V (dual redundant) |
| Power interface: 3- core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 5 W | |
| indicator light | Port light (fluctuation switch control):
Ø Indicator light: 100M Link/ACT green; |
| Power light: green | |
|
Security properties |
Shell protection: IP40 |
| Surge impact IEC61000-4-5 : (optional)
Signal end: common mode ± 4KV, differential mode ± 2KV Power supply end: common mode ± 4KV, differential mode ± 2KV |
|
| Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV | |
| Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| warranty period | 5 years |
