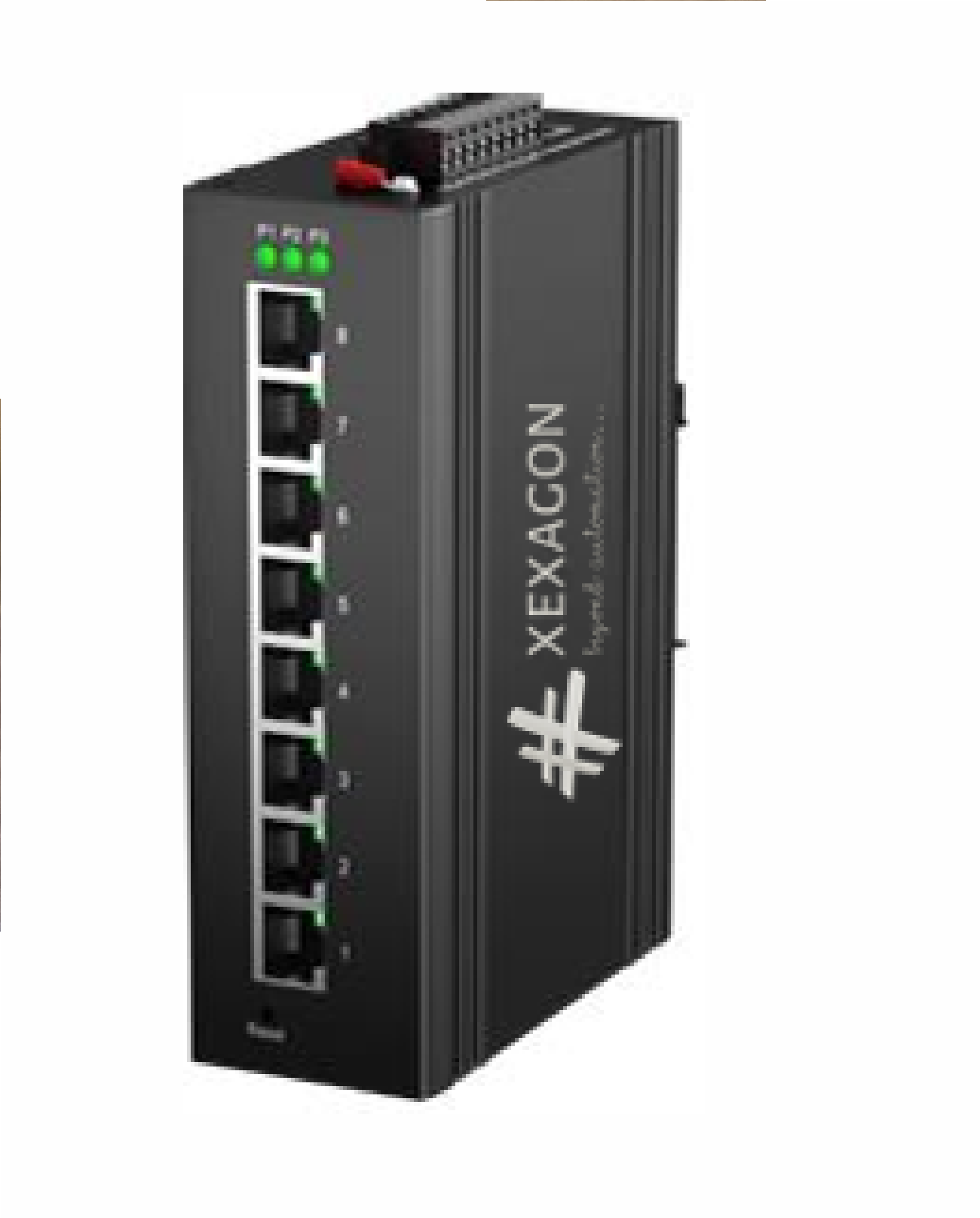

8 PORT MANAGED ETHERNET SWITCH
Delivery Time :- 3-4 week
XNTN-9000-75-8GT-ML
8*10/100/1000Base-T
Lite Managed Industrial Switches
Input Voltage: DC12~58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: RoHS, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours
₹19,000.00 ₹24,700.00
| Provider Mode Ports | |
| Fixed port | 8*10/100/1000 Base-T |
| Management Port | Business port management |
| Power interface | Phoenix terminal+ DC interface |
| LED Indicators | P1,P2,P, sys, Link/ACT LED |
| Cable Type & Transmission Distance | |
| Twisted-pair | 0-100m（CAT5e,CAT6） |
| Network Topology | |
| Ring topology | Support |
| Star topology | Support |
| Bus topology | Support |
| Tree Topology | Support |
| Hybrid topology | Support |
| Electrical Specifications | |
| Input voltage | DC12~58V |
| Total Power consumption | ＜5W |
| Layer 2 Switching | |
| Switching capacity | 16Gbps |
| Packet forwarding rate | 11.9Mpps |
| MAC address table | 4K |
| VLAN | Support 32 |
| Buffer | 2M |
| Ethernet channel | Only static support |
| Forwarding delay | <10us |
| MDX/MIDX | Support |
| Flow control | Support |
| Jumbo frame | Support 9K bytes |
| Duplex mode | Support |
| DHCP client | Support |
| Port statistics | Support |
| EEE | Support |
| Loop inspection/Loop prevention | Support |
| STP/RSTP | Support |
| STP Port Fast | Support |
| IGMP Snooping | Support |
| Reset | Support |
| Convergence | |
| QoS | Support port speed limited Support export queue speed limit |
| Management | |
| User Management | Support |
| Upgrade Firmware | Support |
| Configuration File Download/Upload | Support |
| WEB management | Support |
| Security | |
| Protected ports | Support |
| Storm control | Support |
| Equipment Diagnosis | |
| Port mirroring | Support 1:1, N:1 |
| Environment | |
| Operating temperature | -40℃~+75℃ |
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 5%~95% （non-condensing） |
| Thermal methods | Fanless, natural cooling |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product size | 48X104X143mm |
| Installation Method | DIN-rail |
| Weight | 0.45KG |
| EMC&INGRESS PROTECTION | |
| IP Level | IP40 |
| Surge protection of Power | Common mode 4KV, differential mode 2KV |
| Surge protection of Ethernet port | Common mode 4KV, differential mode 2KV |
| ESD | Contact 8KV, Air 15KV |
| Free fall | 0.5m |
| Authentication | |
| Authentication | CE/RoHS |
| Accessories | |
| Accessories | Device, Terminals, Specification, Certificate Adapter(optional) |
Data Sheet
Test / Quality Data
Drawing
Based on 0 reviews
Be the first to review “8 PORT MANAGED ETHERNET SWITCH”
