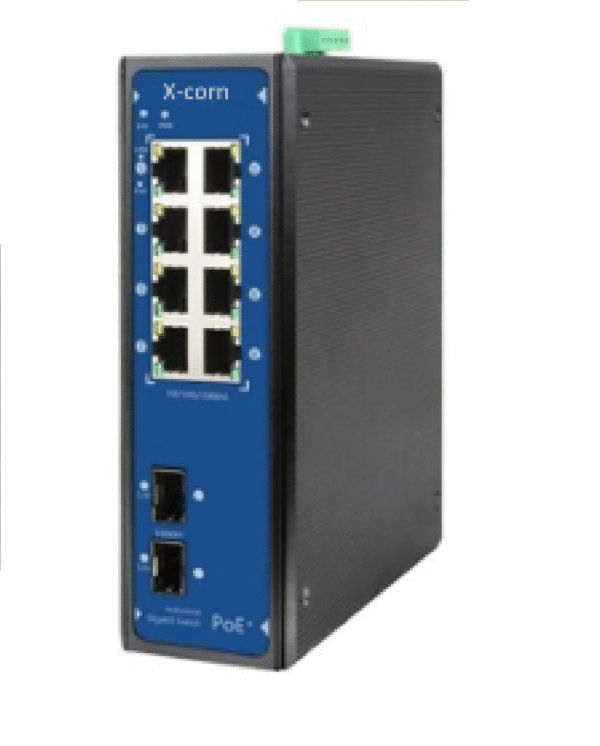

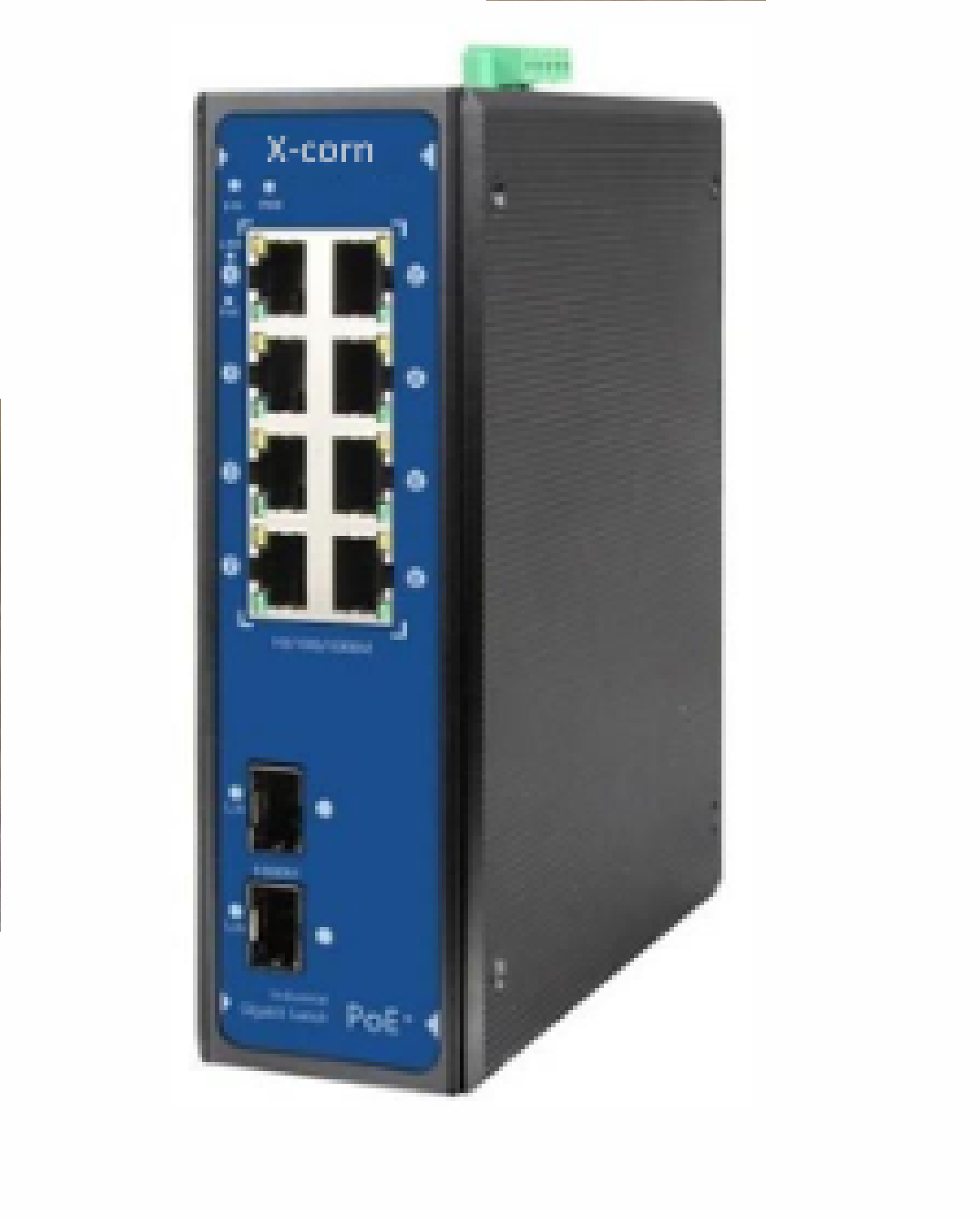

8*10/100/1000M+2*1000M SFP fiber Port Ethernet Switch
, , ,

8*10/100/1000M+2*1000M SFP fiber Port Ethernet Switch

Compare

Delivery Time :- 3-4 week
XC-IS1810

8*10/100/1000M+2*1000MSFPfiberPort
Industrial Ethernet Switch
X-corn
Switchingcapacity:20Gbps,MACtable:16K
Inputvoltage:DC12-48V
Redundantdual power 5-bit industrialterminals
IPprotectionlevel:IP40
Rail-typeinstallation

₹19,030.00 ₹25,240.00

Inquire on WhatsApp
Compare
Add to quote
Model XC-IS1810
Interface 8*10/100/1000Base-TX ports (Data/Power) 2*1000Base-X uplink SFP fiber slot ports (Data)
2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Ethernet Port Feature Port  1-8   support   10/100/1000Base-T(X)  auto-sensing,   full/half  duplex
MDI/MDI-X self-adaption
SFP Port Characteristic Gigabit SFP optical fiber interface, default matching optical modules, need to
buy separately, (optional order mode / multi-mode, single fiber / double fiber
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 20Gbps (Non-blocking)
Forwarding Rate@64byte 14.88Mpps
MAC 8K
Buffer Memory 4M
Jumbo Frame 9.2K
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter)
Optical Cable Multimode: 850nm 0 ~ 500M, 1310nm 0~2KM;
Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Working Voltage 12-48VDC; 5 Pin industrial Phoenix terminal, support anti-reverse
protection.
Power Consumption Standby:<4W; Full load:<30W
LED Indicator Power: PWR (green), Network: Link, link/Act (yellow), Rate: Speed (green)
Operation TEMP / Humidity -40~+75°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Dimension 165*120*52mm
Net /Gross Weight <1.0kg / <1.3 kg
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV
IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable:
±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz  IEC61000-4-12/18(shockwave):CM
2.5kV, DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class B
IEC61000-6-2(Common Industrial Standard)
Mechanical Properties IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti
shock) IEC60068-2-32
(free fall)
Certification CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
