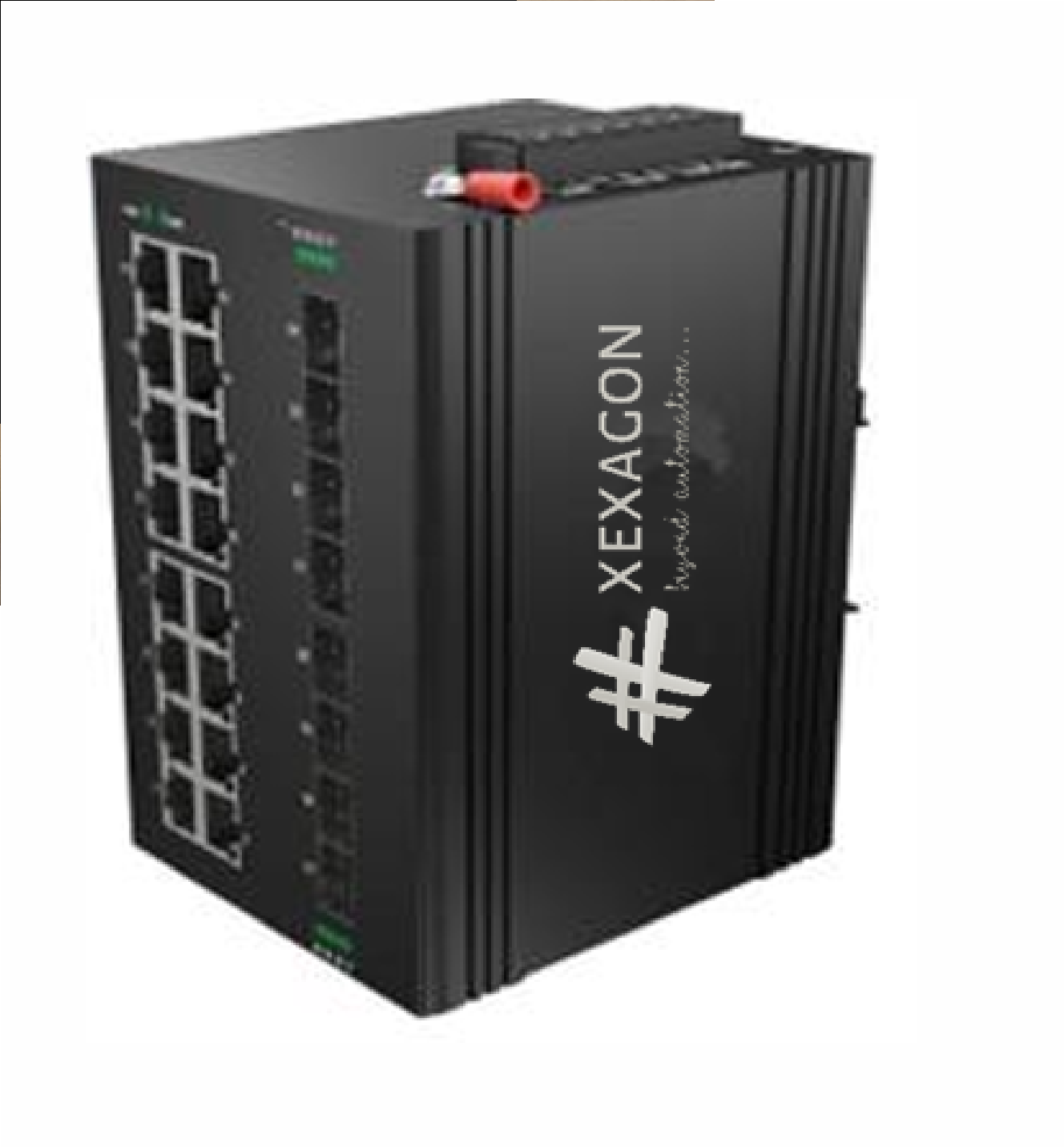

8*1000 Base-X +16*10/100/1000Base-T PoE Managed Switches
, , ,

8*1000 Base-X +16*10/100/1000Base-T PoE Managed Switches

Compare

Delivery Time :- 3-4 week
XNTN-9000-75-8GX16GP-V

Input Voltage: DC12~58V(Non-PoE), DC48~58V(PoE)
Operating Temperature:-40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF:100000 Hours

₹41,000.00 ₹53,300.00

Inquire on WhatsApp
Compare
Add to quote
Provider Mode Ports
Fixed port 8*1000 Base-X，16*10/100/1000 Base-T
Management Port Support Console
Power interface Phoenix terminal, dual power input
LED Indicators PWR，Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair 0-100m（CAT5e,CAT6）
Monomode optical fiber 20/40/60/80/100KM
Multimode optical fibre 550m
Network Topology
Ring topology Support
Star topology Support
Bus topology Support
Tree Topology Support
Hybrid topology Support
Electrical Specifications
Input voltage DC12~58V(Non-PoE), DC48~58V(PoE)
Total Power consumption ＜26W (Non-PoE),  ＜386W (PoE)
PoE Support
PoE port 1-16
PoE Protocol 802.3af，802.3at
Pin Assignment 112+, 36-
PoE Management Support
Layer 2 Switching
Switching capacity 68G
Packet forwarding rate 50.59Mpps
MAC address table 16K
VLAN Support 4K
Buffer 12M
Forwarding delay <10us
MDX/MIDX Support
Flow control Support
Jumbo Frame Support 10Kbytes
Spanning Tree Support STP/RSTP/MSTP
Ring Protocol Support ERPS
Link Aggregation Support 12 group
Multicast Support IGMP Snooping
Port Mirroring Support
Storm Control Support
Interface Counters Support
QINQ Support
802.1X Support
MAC Authentication Support
Port Isolation Support
RMON Support
NTP Client Support
DHCP CLIENT Support
DHCP snooping Support
Ping/tracert test Support
Dying gasp Support
DDM Support
Convergence
ACL Support ACL 500 Support IP standard ACL
Support MAC expand ACL
Support IP expand ACL
QoS Support QoS re-marking, priority mapping Support SP, WRR queue scheduling
Support engress rate-limited, egress rate-limit
Support Policy-based QoS
Management
CLI Support
Console Support
Management IP Support IPv4/IPv6
Telnet/SSH Support
WEB management Support
SNMP Support SNMPv1/v2c/v3
User Management Support
System Log Support
Configuration File Download/Upload Support
Upgrade Firmware Support
Environment
Operating temperature -40℃~+75℃
The device is tested for 4 hours at temperatures in 85°C
Storage temperature -40℃~+85℃
Relative humidity 5%~95% （non-condensing）
Thermal methods Fanless, natural cooling
MTBF 100,000 hours
Mechanical Dimensions
Product size 48X104X143mm
Installation Method DIN-rail
Weight 1KG
EMC&INGRESS PROTECTION
IP Level IP40
Surge protection of Power IEC 61000-4-5   Level X（6KV/6KV）（8/20us）
Surge protection of Ethernet port IEC 61000-4-5   Level 4（4KV/4KV）（10/700us）
RS IEC 61000-4-3   Level 3（10V/m）
EFI IEC 61000-4-4   Level 3（1V/2V）
CS IEC 61000-4-6   Level 3（10V/m）
PFMF IEC 61000-4-8   Level 4（30A/m）
DIP IEC 61000-4-11   Level 3（10V）
ESD IEC 61000-4-2   Level 4（8K/15K）
Free fall 0.5m
Authentication
Authentication CCC/CE/FCC/RoHS
