Cable Entry System, Electrical, Industrial Solution

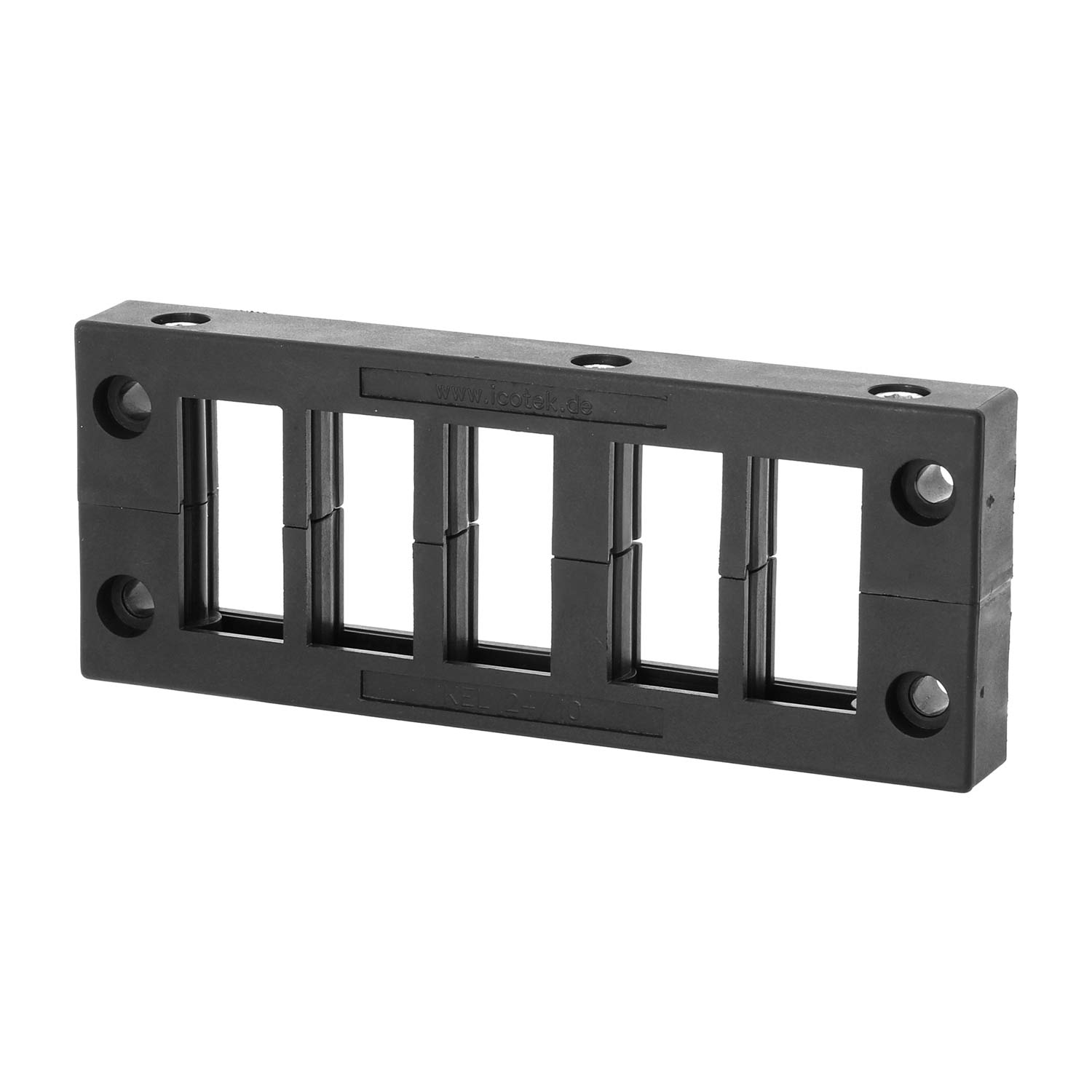

Cable Entry Frame (XNL 24)
Cable Entry Frame (XNL 24)
Material : PA 66 Halogen free
Colour : Black
Temperature : -40° C to 140° C (Static)
IP Rating : IP54 / IP65
Flame Class : UL94: V0
Cut-Out Size : 36 * 112mm
Frame Height : 17mm
₹9,500.00 ₹11,900.00
Cable Entry Frame (XNL 24)
Part No. : XNL 24/4- XN Small & Medium
| Mounting options | Screw type mounting, Snap-in with XN-SNAP |
| For max. no. of cables | 6 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 62 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Suitable for grommets | 2 x XN small, 2 x XN large |
Part No. : XNL 24/7 – XN Small & Medium
| Mounting options | Screw type mounting, Snap-in with XNL-SNAP |
| For max. no. of cables | 25 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 62 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Suitable for grommets | 6 x XN small, 1 x XN large |
Part No. : XNL 24/10 – XN Small
| Mounting options | Screw type mounting, Snap-in with XN-SNAP |
| For max. no. of cables | 40 |
| Max. cable diameter | 15 mm |
| Length | 147 mm |
| Width | 62 mm |
| Height | 22 mm |
| Mounting height | 22 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Suitable for grommets | 10 x XN small |
