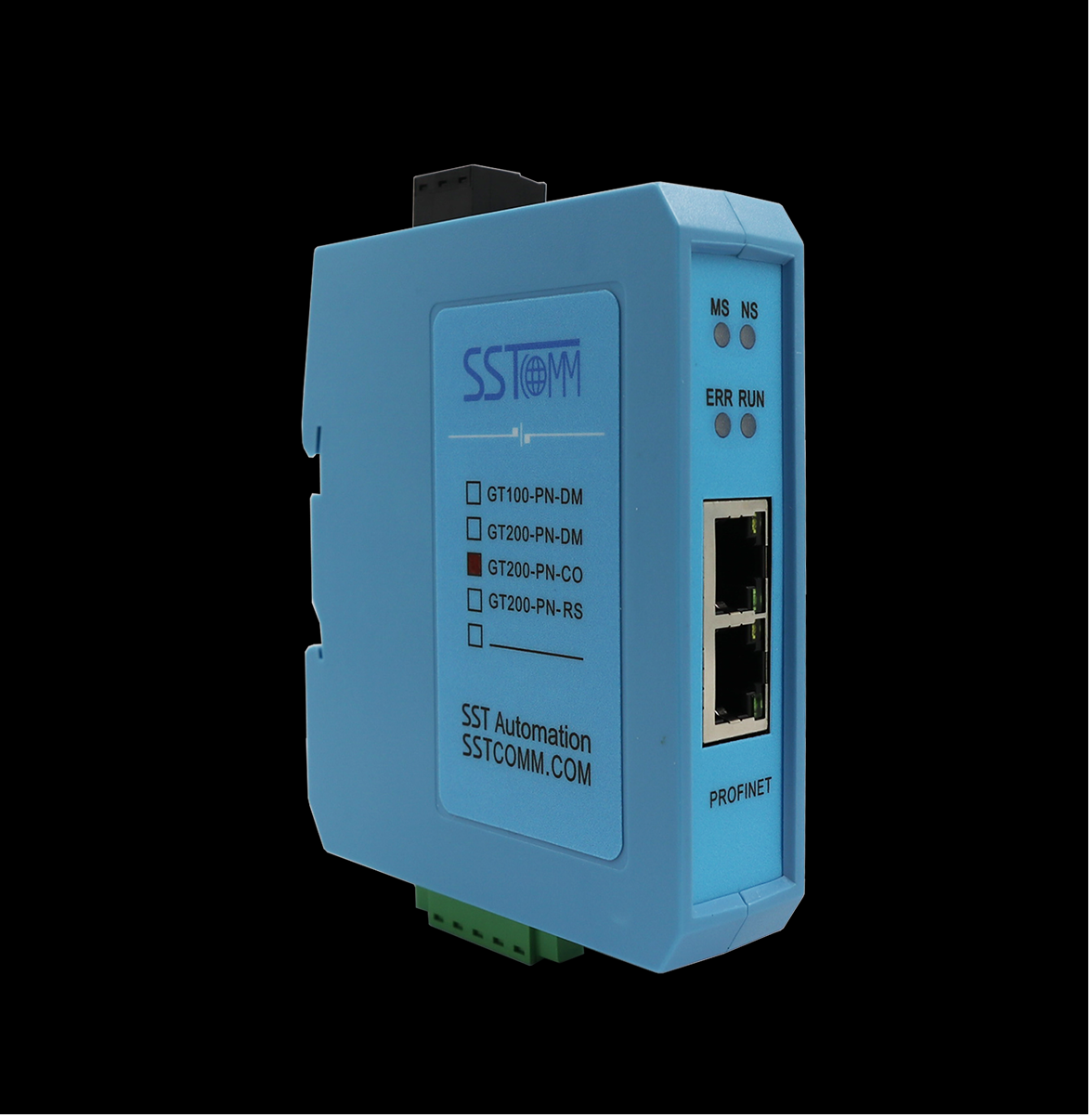

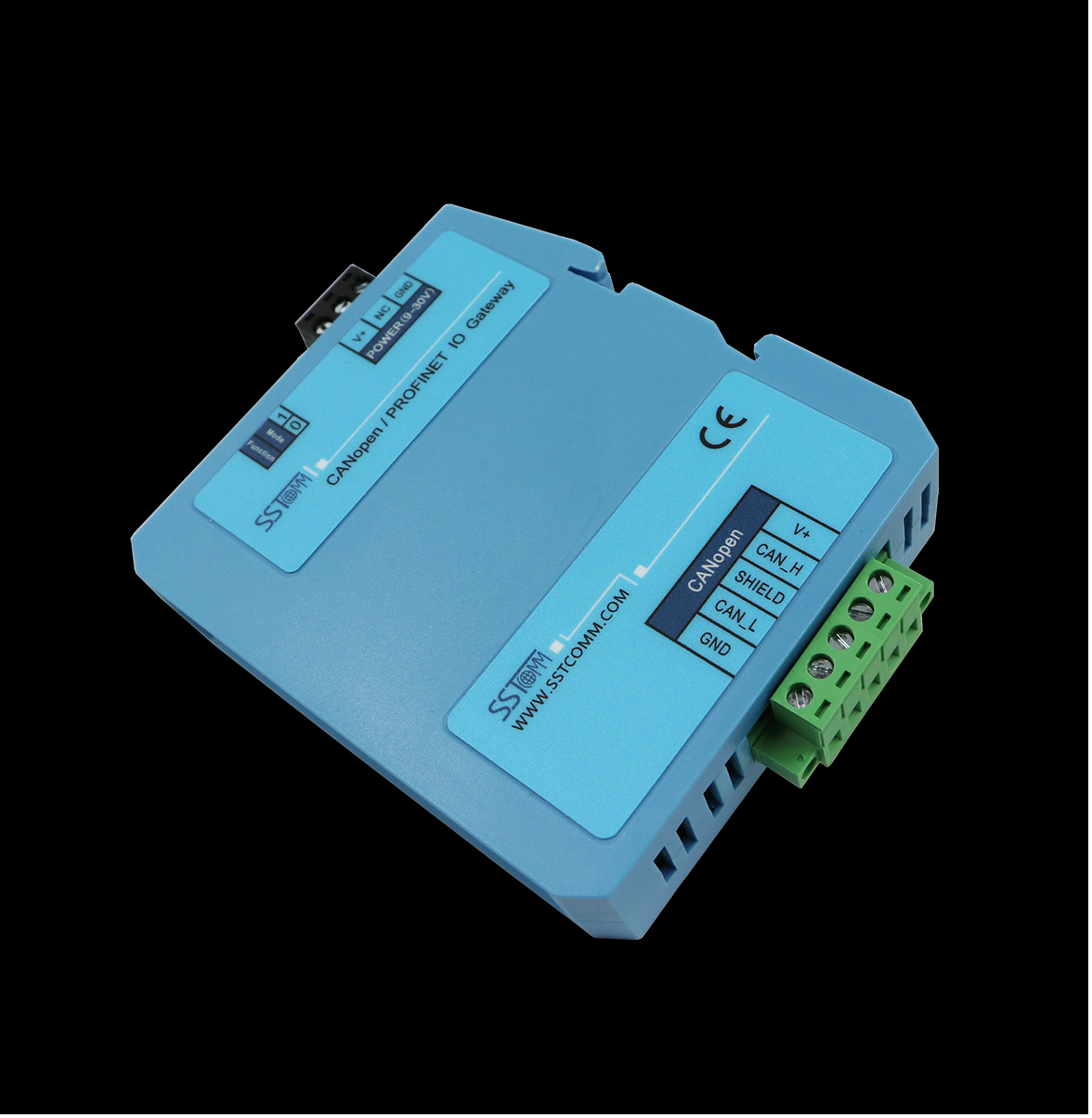

CAN/CANopen PROFINET IO Gateway
Model No : GT200-PN-CO
Make : SSTCOM
₹69,000.00
Compare
The GT200-PN-CO is a CAN/CANopen to PROFINET gateway designed to facilitate the connection of CAN/CANopen devices to Siemens PLCs or other PROFINET network controllers. This gateway supports both CANopen master/slave and generic CAN 2.0A/2.0B protocols with CAN hardware filter enabled.
Technical Specifications:
- PROFINET Features
- Device class: PROFINET device
- Slot capacity: Up to 32 distributed I/O stations
- CAN Features
- Compliance: CAN 2.0A/B protocols
- Frame format support:
- Standard frame (11-bit ID)
- Extended frame (29-bit ID)
- CANopen Features
- Protocol version: DS-301 V4.01 & CiA 303
- Master functionality:
- TPDO/RPDO configuration
- NMT network management
- Slave functionality:
- Maximum PDOs: 100
- Advanced features
- General
- Temperature range: -20°C to +50°C
- Humidity: 5-95% non-condensing
- Input voltage: 24VDC ±42%
- Protection:
- ESD: 15kV HBM
- Galvanic isolation: 3kVrms
- Physical Features
- External dimensions (W*H*D): 1 in*4 in*3.5 in (25mm*100mm*90mm)
- Mounting: 35mm DIN rail
