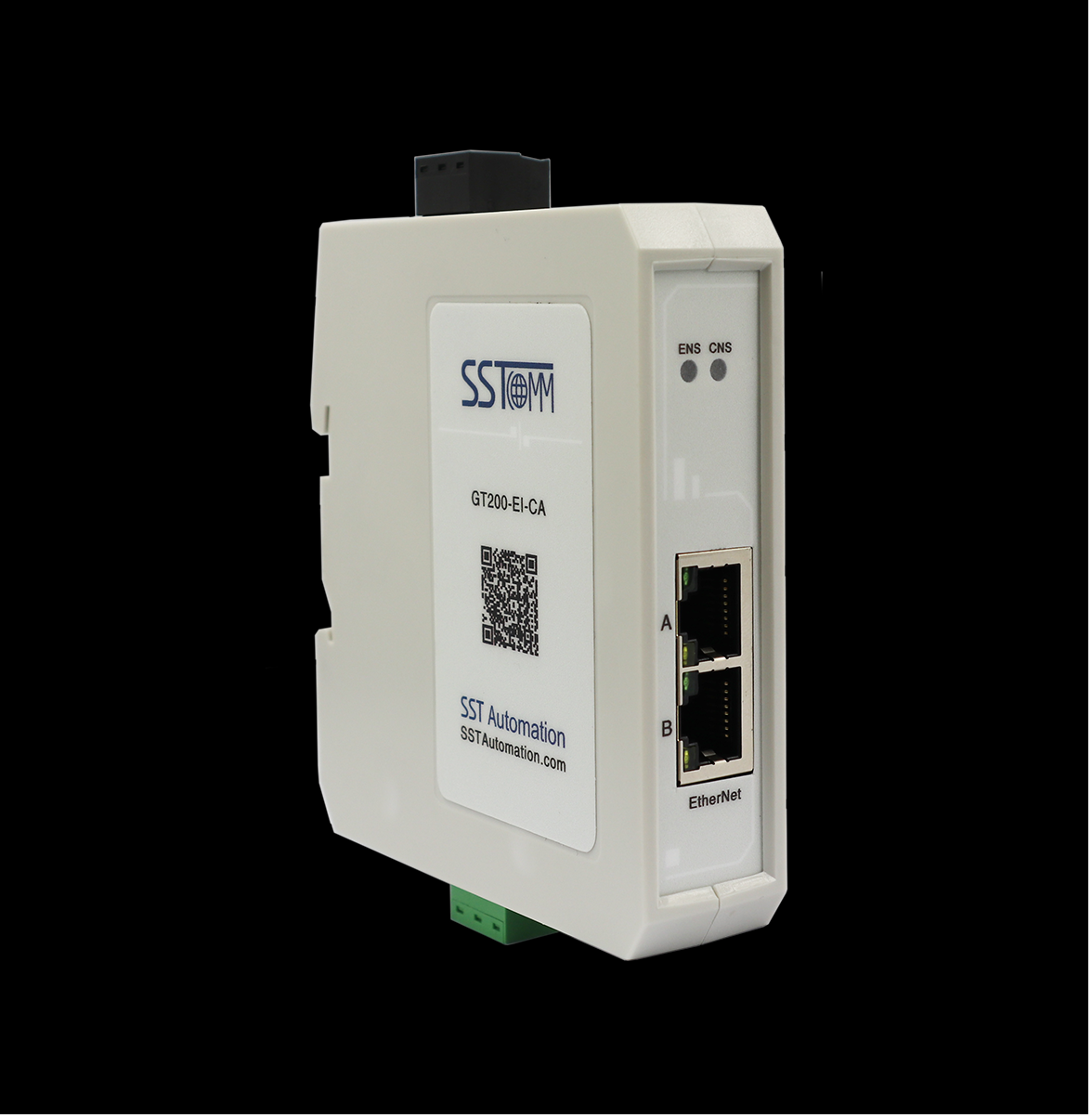

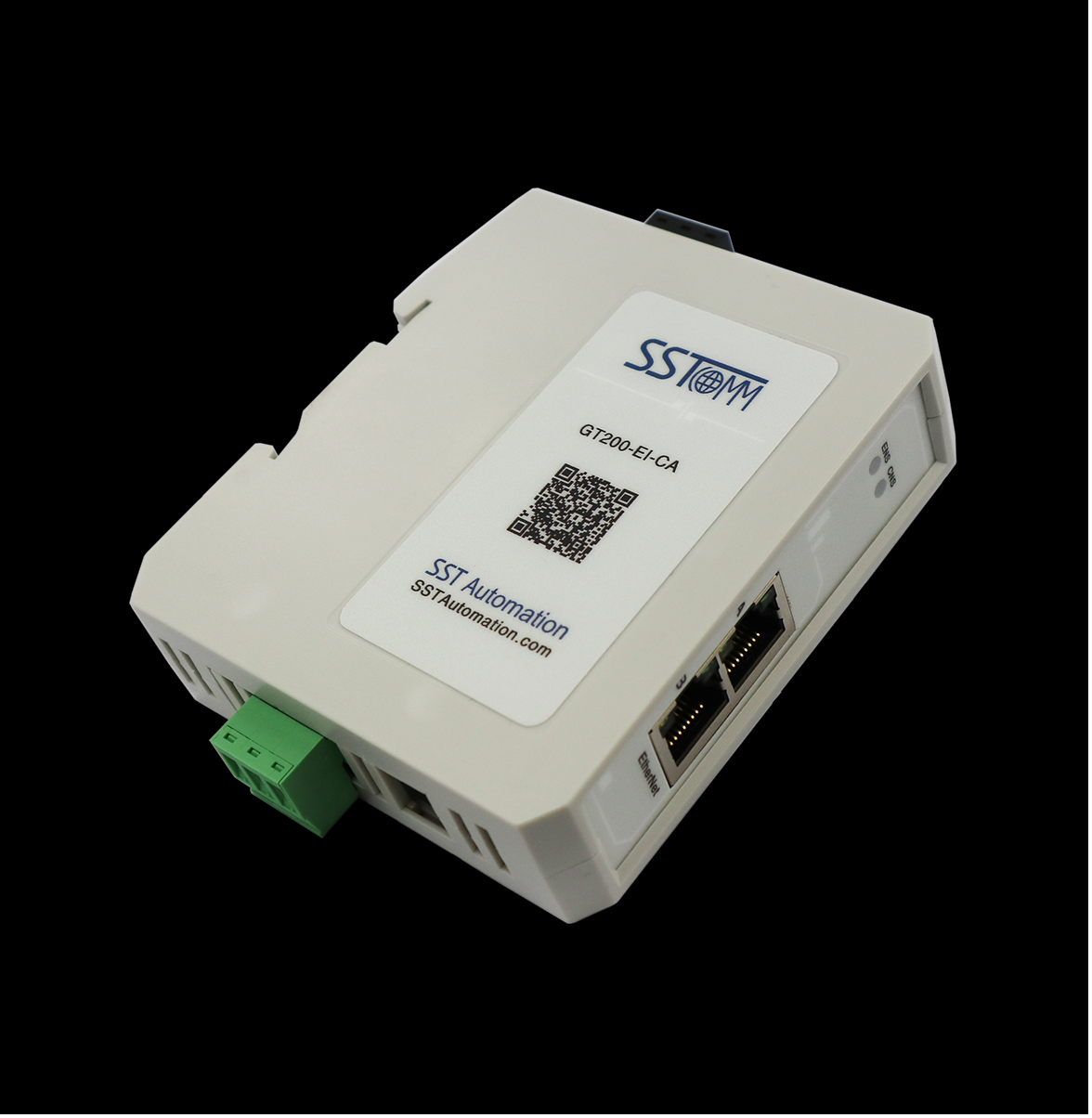

CAN / EtherNet/IP Gateway

Technical Specification:

• Supports one channel CAN 2.0A/2.0B. CAN baud rate: 10kbit/s, 20kbit/s, 50kbit/s, 100kbit/s, 125kbit/s, 250kbit/s, 500kbit/s, 1Mbps.
• Supports CAN ID filtering function, Supports Producer Frames, Producer Frames and Query&Response Frames, with a maximum of 64 consumer frames.
• Two 10/100M self-adaptive network ports, built-in switch function. Support daisy chain connection and cascade.
• Ethernet supports OVDA standard EtherNet/IP communication protocol.Support 500/256/128/64/32/16/8 bytes.
• Power supply: 24VDC ( 9V-30V),80mA (24VDC).
• Operating Temp: -40°F to 158°F ( -40°C to 70°C), Rel. Humidity: 5% -95%, non-condensing.
• External dimensions (W*H*D): 1 in*4 in*3.5 in (25mm*100mm*90mm).
• Installation: 1.38 in (35 mm) DIN rail.
• Protection class: IP20.
• Easy-to-use configuration software SST-EC-CFG
