Automation, EtherNet/IP Series, Industrial Solution, Protocol Converter

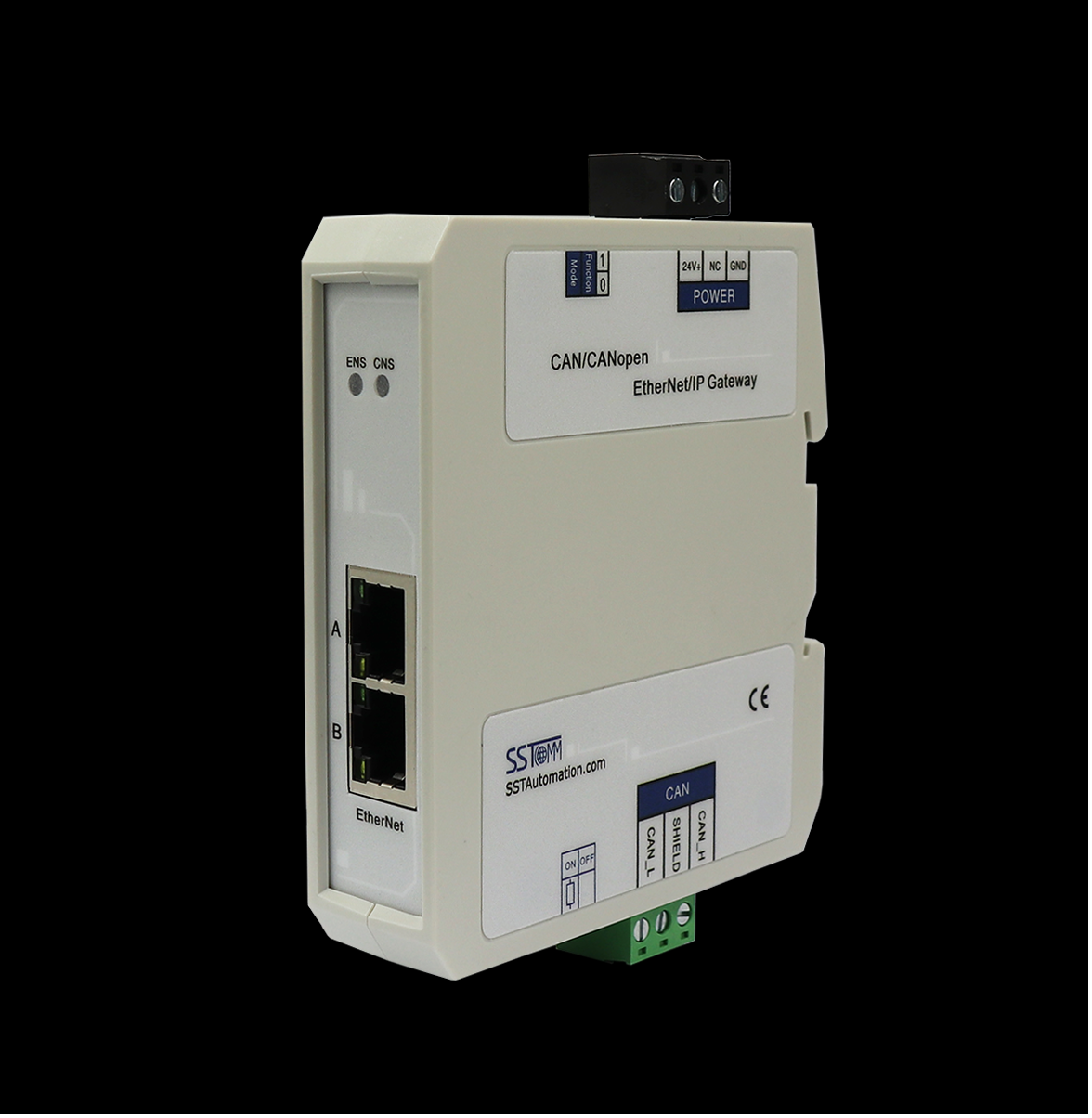

CANopen / EtherNet/IP Gateway
Delivery Time: 3-4 week
GT200-EI-CO V4.5
The GT200‑EI‑CO is a high-performance gateway that seamlessly connects CANopen devices to EtherNet/IP networks, acting as both a CANopen master and an EtherNet/IP adapter for efficient, real-time data exchange. It features a compact design with separate 3-pin terminals for CAN communication and power supply, simplifying installation and wiring in industrial environments.
₹63,257.00 ₹78,318.00
Technical Specification:
- Supports one channel CAN 2.0A. CAN baud rate: 10kbit/s, 20kbit/s, 50kbit/s, 100kbit/s, 125kbit/s, 250kbit/s, 500kbit/s, 1Mbps.
- DS-301 V4.01 and CiA Draft Recommendation 303 compliant.
- Supports CANopen terminal output data processing, SDO sending cycle, SDO command initiated by EIP terminal, SDO command failure repetition times, SDO command polling delay time and other functions.
- Supports NMT_RESET command configurable function.
- Ethernet supports OVDA standard EtherNet/IP communication protocol, supports 510/504/256/128/64/32/16/8 bytes.
- Supports TCP and UDP port communication.
- The CAN 3-pin terminal only includes the CAN interface without power supply.
- Isolated power supply interface: 24VDC ( 11V-30V).
- Operating Temp: -4°F to 140°F ( -20°C to 60°C), Rel. Humidity: 5% -95%, non-condensing.
- External dimensions (W*H*D): 1 in*4 in*3.5 in (25mm*100mm*90mm).
Data Sheet
Test / Quality Data
Drawing
There are no reviews yet.
