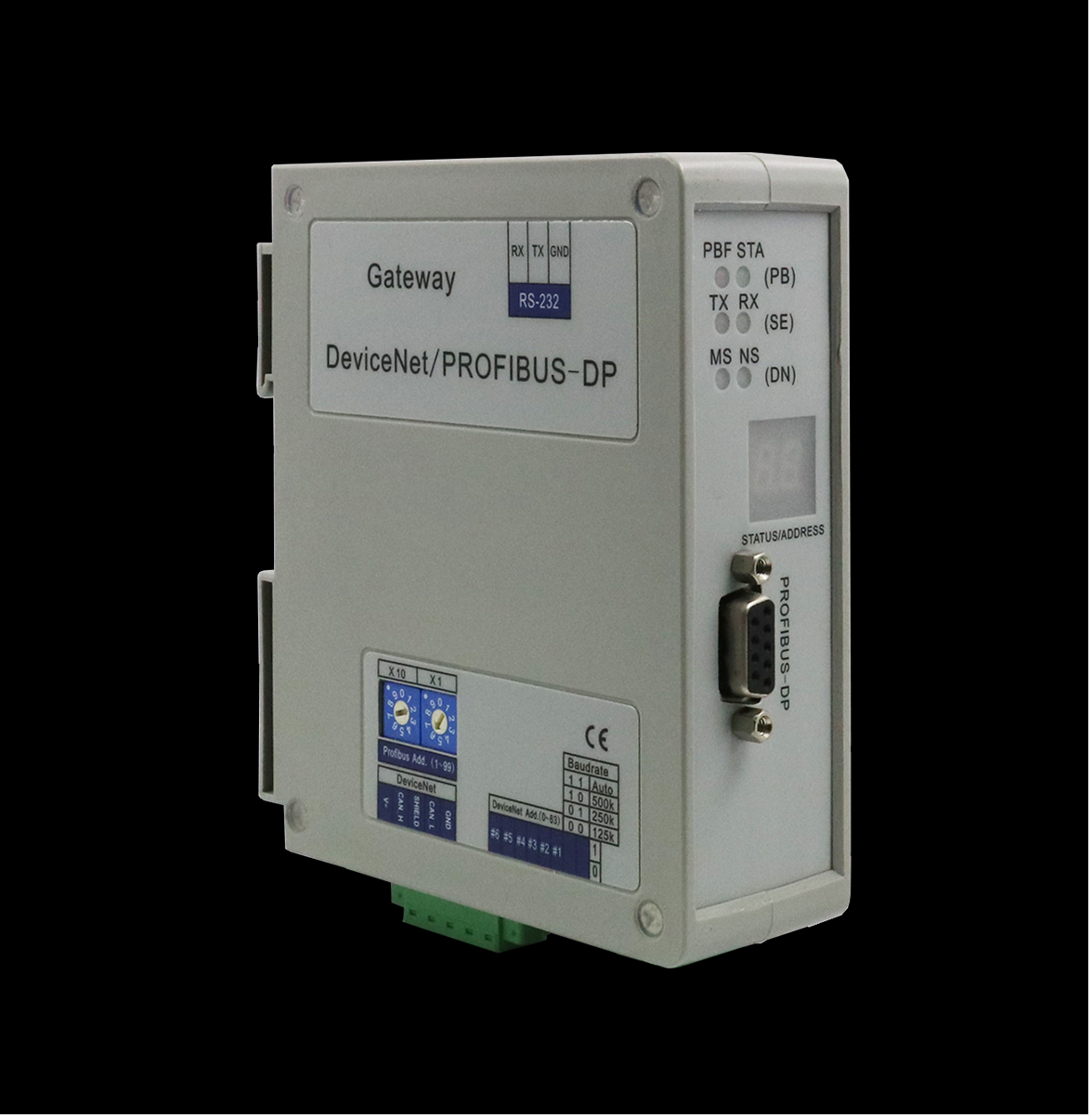

DeviceNet (Adapter) / PROFIBUS DP Gateway

Technical Specification:

1.   Acts as a PROFIBUS DP device and able to connect with the PROFIBUS DP controller, such as Siemens PLC. Automatic baud rate detection on PROFIBUS DP(9600bit/s~12Mbit/s).

2.   2.5KV galvanic isolated on PROFIBUS DP and DeviceNet interfaces.

3.   Acts as Group 2 Only Server on DeviceNet network and supports DeviceNet I/O polling.

4.   Supports Hyper Terminal in configuration mode.

5.   Real-time, the delay of data exchange is millisecond.

6.   Power Supply: 11V-30VDC,DeviceNet network power is available.

7.   Operating Temp.:-4ºF to 140ºF(-20ºC to 60ºC);

Rel.Humidity:5%-95% RH non-condensing.

8.   Dimension W*H*D:1.6 in*5 in*4.33 in (40mm*125mm*110mm).

9.   Mounting: DIN Rail Mounting(35mm)
