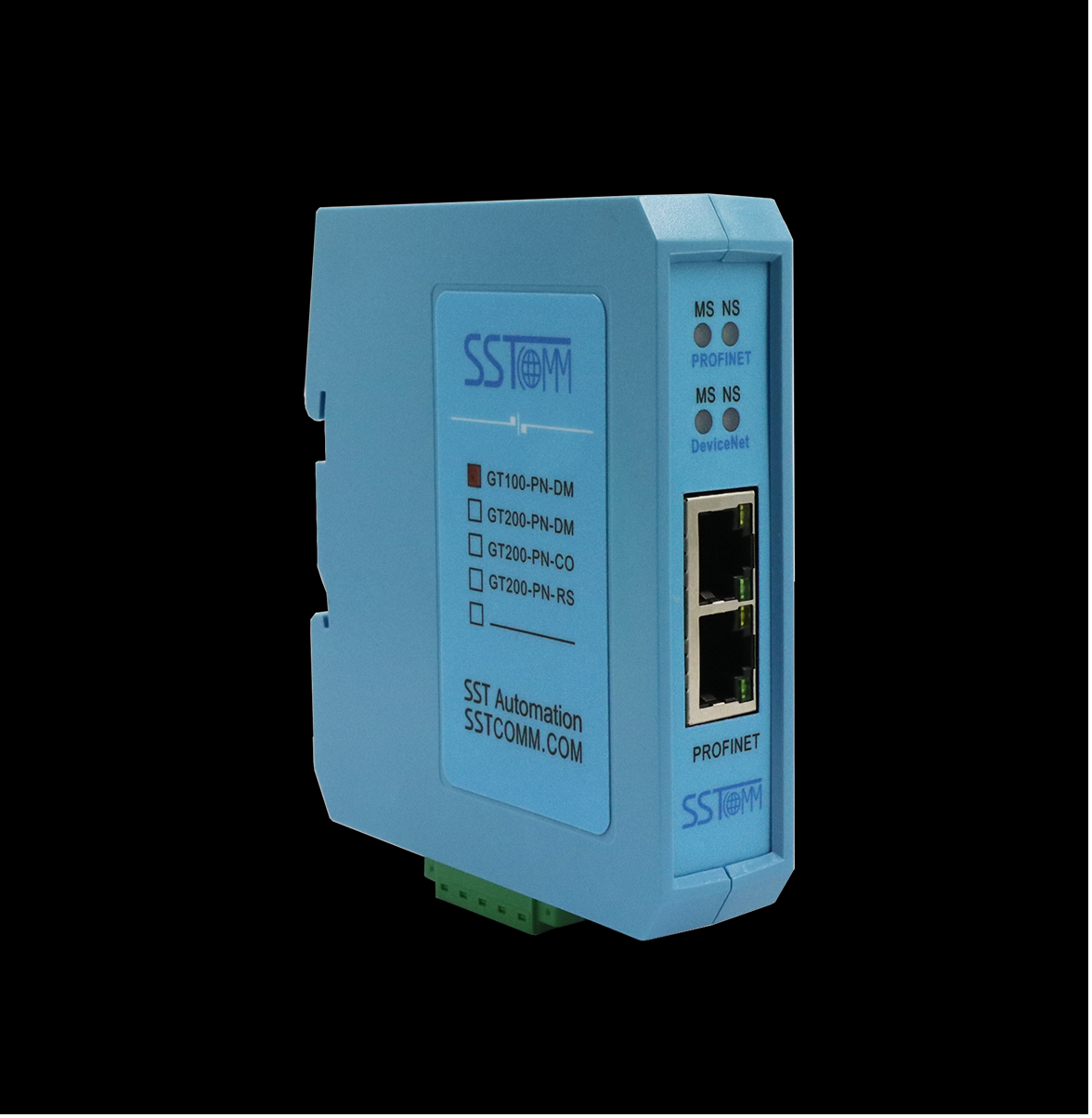

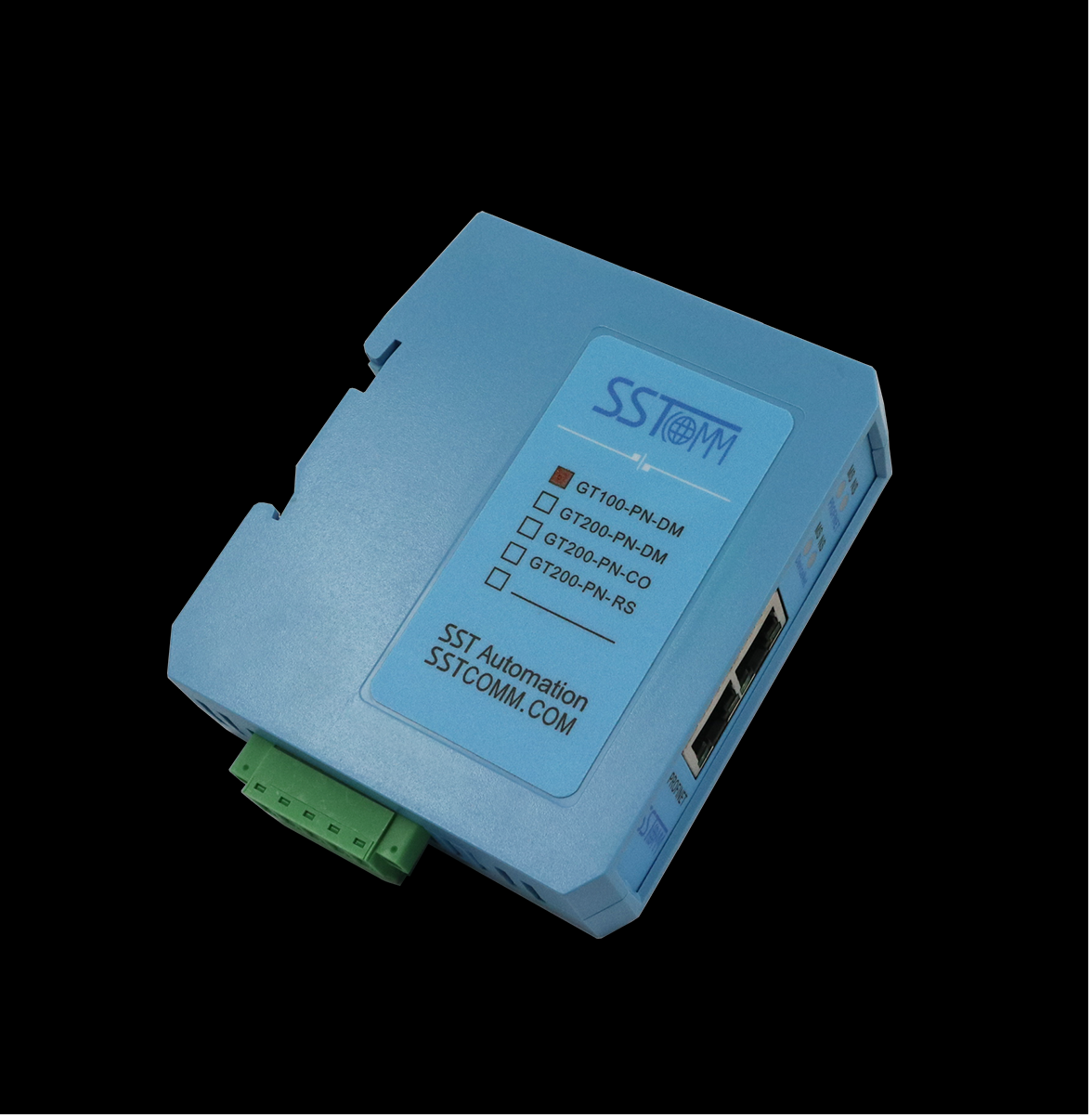

DeviceNet / PROFINET IO Gateway

Technical Specification:

1. Protocol conversion between PROFINET and DeviceNet.
2. Act as DeviceNet scanner or adapter at DeviceNet side.
3. Support connecting one DeviceNet adapter, the maximum number of input and output bytes of DeviceNet:

    Maximum number of input bytes: 128Bytes.

    Maximum number of output bytes: 112Bytes.

4. Support connecting one DeviceNet scanner, the maximum number of input or output bytes of DeviceNet:

    Maximum number of input or output bytes: 224Bytes.

5. Supports standard PROFINET I/O RT protocol;
6. PROFINET: supports up to 32 slots, the length of input/output bytes can be set by STEP7;
7. Free configuration software SST-DNET-COM. It can scan DeviceNet adapter station online through SST-DNET-COM software, quickly obtain its I/O parameters and configuration parameters, support online debugging function.
8. DeviceNet baud rate: 125K, 250K and 500K.
9. Built-in electrostatic protection: 15 KV ESD; Communication interface isolation: 3KV;
10. Power supply: 24VDC (11V-30V), 90mA (24VDC).
11. Operating Temp.: -40°F to 185°F (-40 ºC to 85 ºC), Rel. Humidity: 5%-95%, non-condensing.
12. Dimension (W*H*D): 1 in*4 in*3.5 in (25mm*100mm*90mm).
13. Mounting: DIN Rail Mounting (35mm).
