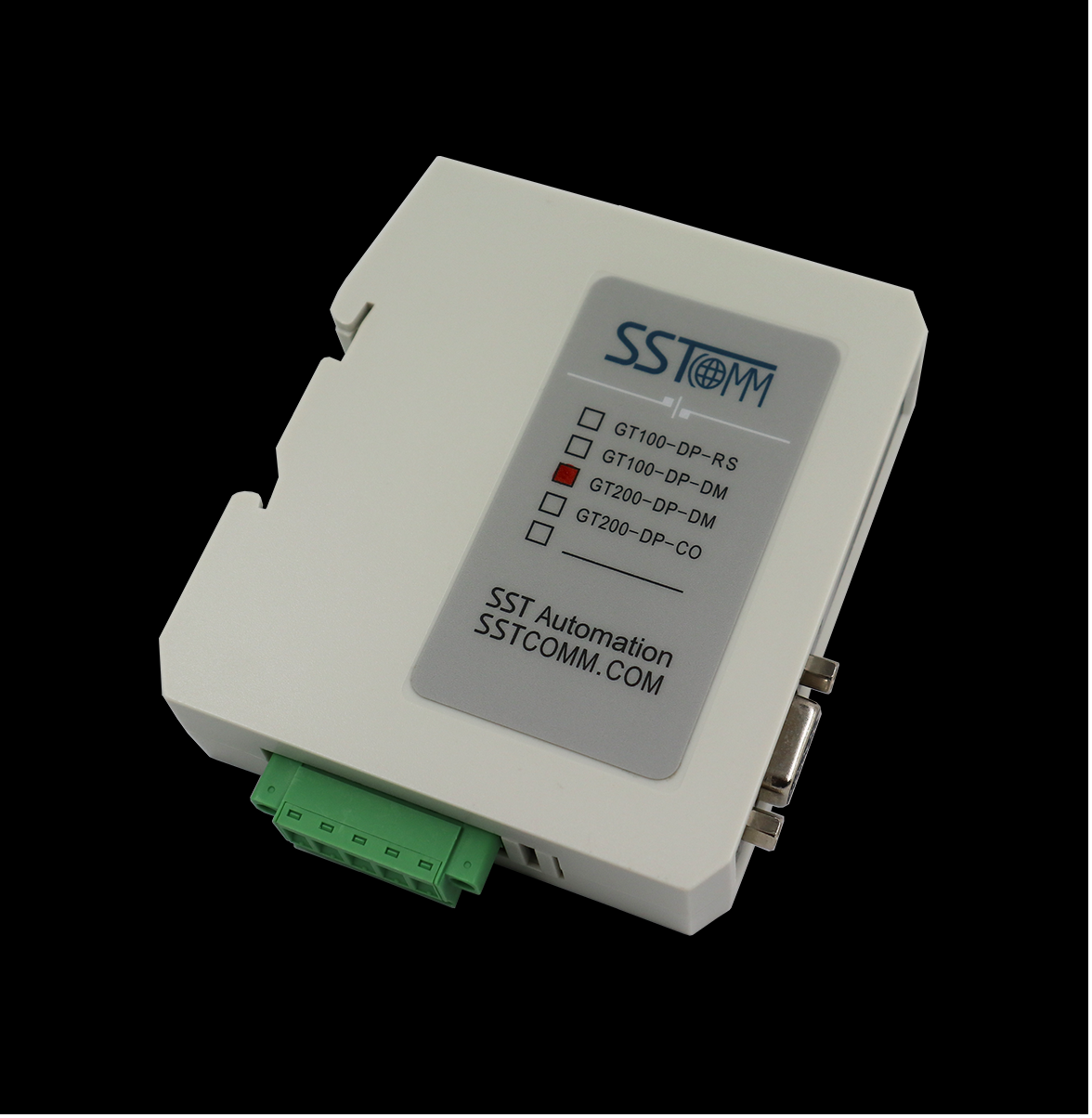

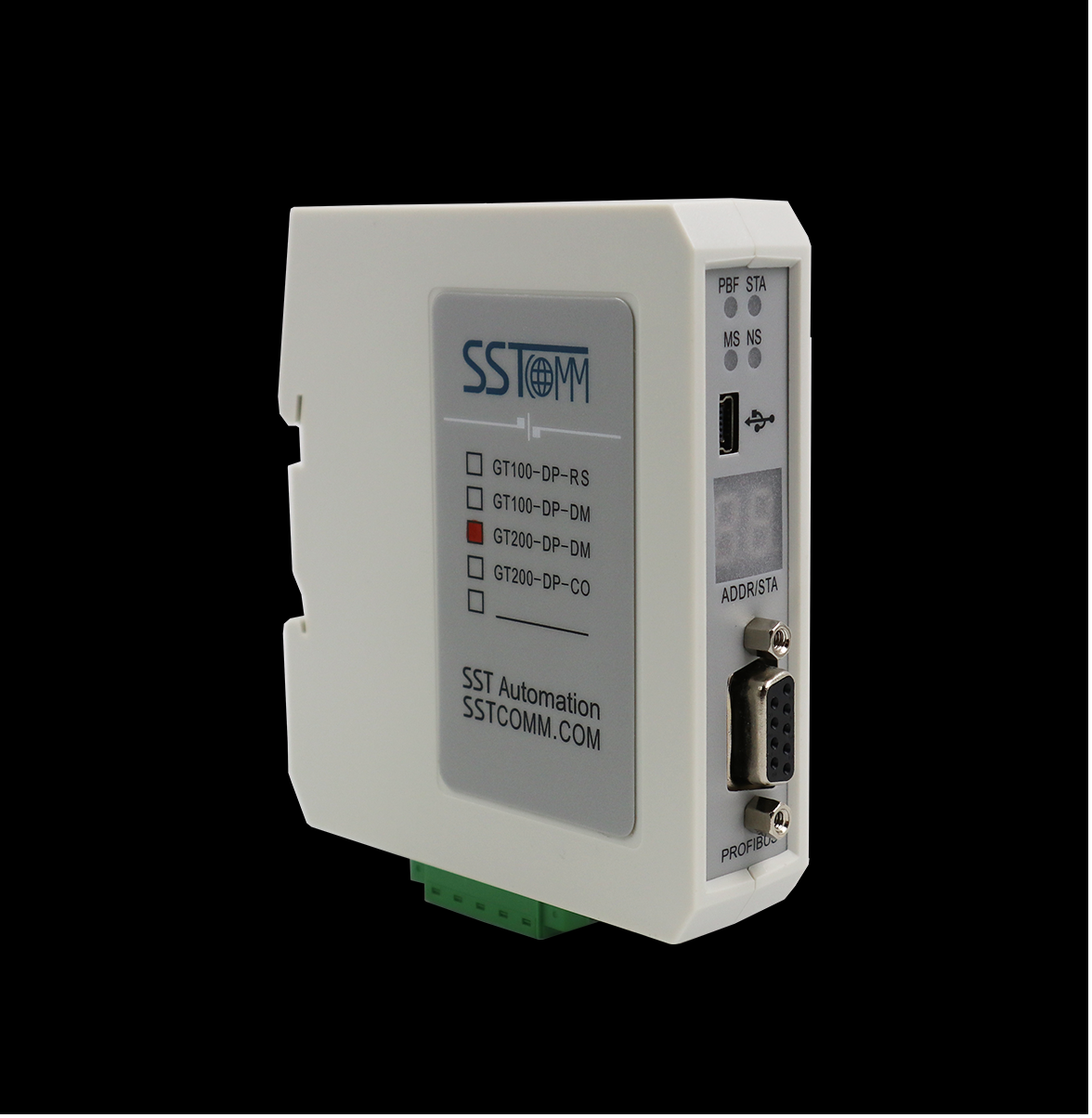

DeviceNet (Scanner) / PROFIBUS DP Gateway
Model No. GT200-DP-DM
Make: SSTCOM
₹138,160.00
Compare
The gateway GT200-DP-DM provides a seamless connection between multiple DeviceNet devices and the PROFIBUS DP network.
Technical Specification:
1. Acts as a PROFIBUS DP slave device and able to connect with the PROFIBUS DP controller, such as Siemens PLC. Baud rate is self-adaptive, maximum baud rate is 6Mbps.
2. 2.5KV galvanic isolated on PROFIBUS DP and DeviceNet interfaces.
3. Acts as scanner on DeviceNet network and supports DeviceNet I/O polling. It can scan DeviceNet adapter station online through SST-DNET-COM software, quickly obtain its I/O parameters and configuration parameters, support online debugging function.
4. DeviceNet baud rate: 125K, 250K, 500K bps.
5. PROFIBUS DP: Max Input: 244 bytes, Max Output: 244 bytes.
6. Power Supply: 24VDC (11V-26VDC). The power supply and the DeviceNet network are wired on the same five-pin terminal.
7. Operating temperature:-4°F to 140°F (-20 ºC to 60 ºC).
Humidity: 5%-95% (non-condensing).
8. Dimensions (W*H*D):1 in*4 in*3.5 in (25mm*100mm*90mm).
9. Installation: 1.4in(35mm) DIN RAIL.
