Cable Entry System, Electrical, Industrial Solution

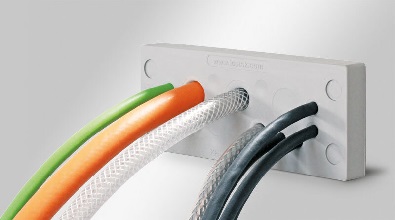

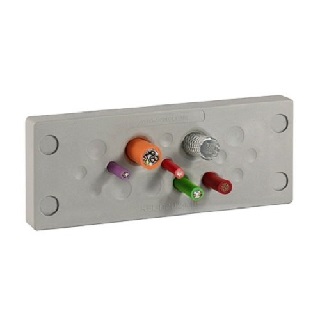

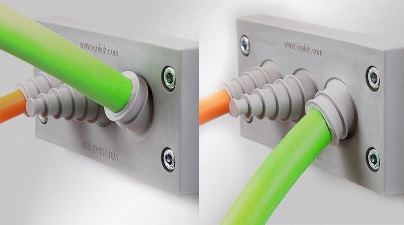

DPU Cable Entry Plate
DPU Cable Entry Plate
Material : Elastomer (Base Frame : PP)
Temperature : -40° C to 100° C
IP Rating : IP66/IP67/IP68
Flame Class : UL94: V0 , Self-Extinguishing
Property : Halogen Free Silicon Free
Height : 14mm
Cut-Of-Size : 112*36mm
For Wall Thickness : 1.5 – 2mm
₹3,000.00 ₹4,500.00
DPU Cable Entry Plate
Part No. : DPU 24/13
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 13 |
| Max. cable diameter | 20.5 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 10 x 3.2 – 6.3 mm 3 x 16 – 20.5 mm |
Part No. : 24/14
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 14 |
| Max. cable diameter | 10.5 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 5 x 3.2 – 6.3 mm 2 x 4 – 7.5 mm 3 x 5.5 – 10.5 mm 1 x 8 – 12.5 mm 3 x 12 – 16.2 mm |
Part No. : 24/16
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 16 |
| Max. cable diameter | 14.5 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 8 x 3.2 – 5.5 mm 6 x 5 – 8.5 mm 2 x 9.5 – 14.5 mm |
Part No. : 24/16-1
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 16 |
| Max. cable diameter | 16.2 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 2 x 3.2 – 6.3 mm 9 x 4 – 7.5 mm 1 x 5.5 – 10.5 mm 1 x 8 – 12.5 mm 3 x 12 – 16.2 mm |
Part No. : 24/17
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 17 |
| Max. cable diameter | 12.5 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 4 x 3.2 – 6.3 mm 2 x 4 – 7.5 mm 1 x 5.5 – 10.5 mm 10 x 8 – 12.5 mm |
Part No. : 24/20
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 20 |
| Max. cable diameter | 10.5 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 12 x 3.2 – 5.5 mm 8 x 5 – 10.5 mm |
Part No. : 24/21
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 21 |
| Max. cable diameter | 12.5 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 1 x 3.2 – 6.3 mm 14 x 4 – 7.5 mm 4 x 5.5 – 10.5 mm 2 x 8 – 12.5 mm |
Part No. : 24/32
| Mounting options | Screw type mounting, Snap-in |
| For max. no. of cables | 32 |
| Max. cable diameter | 6.3 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 14 mm |
| Mounting height | 14 mm |
| Colour | blue (similar RAL 5005) |
| Surface roughness (ISO 4287) | Ra = 0,421 μm |
| Cut-out size | 112 × 36 mm |
| Thread | M4 |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 4 mm |
| Clamping range | 32 x 3.2 – 6.3 mm |
