Cable Entry System, Electrical, Industrial Solution
EMC Shiled Clamps (RCL , RCLZ , PFS , PFSZ & PFSZ2)
EMC Shiled Clamps (RCL, RCLZ , PFS, PFSZ & PFS2Z)
Material : Clamp : Spring Steel ; Zinc plated Mounting Foot : Poly Carbonate
Mounting Option : Clamping or Snap it
Mounting Location : PE-Leiter or 10*3 mm Busbar
Properties : Vibration Proof
₹3,000.00 ₹4,500.00
EMC Shiled Clamps (RCL, RCLZ , PFS, PFSZ & PFS2Z)

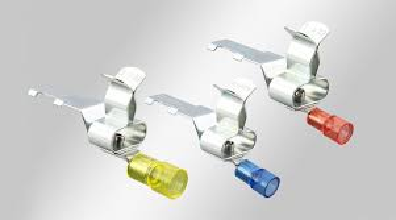

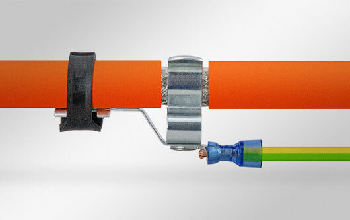

- The EMC Shiled Clamps (RCL & RCLZ) are mounted on ring cable lugs which can be crimped on PF conductors.
The size of the ring cable lug diameter is shown by different colour :
Red : 0.5 – 1.5 mm2
Blue : 1.0 – 2.5mm2
Yellow : 4 – 6mm2

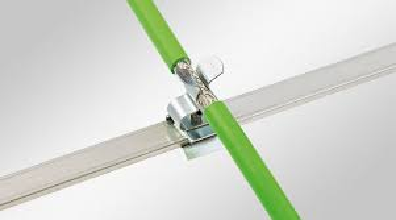

– The EMC Shiled Clamps (PFS, PFSZ & PFS2Z)
The EMC Shiled Clamps (PFS, PFSZ & PFS2Z) are mounted by snapping them onto a 10 x 3 mm
- Large Contact area
- Partially with integrated strain relief
- Shiled contact and strain relief separated
- Quick assembly without tools
- The Spring design requires no adjustments and will permanently maintain contact to the cable shield
- Shock and vibration resistant, maintenance free
- Designed for high density application
