EtherNet MPI Adapter
EtherNet MPI Adapter - Image 2
, , ,

EtherNet MPI Adapter

Compare

Delivery Time: 3-4 week
GT100-IE-MPI

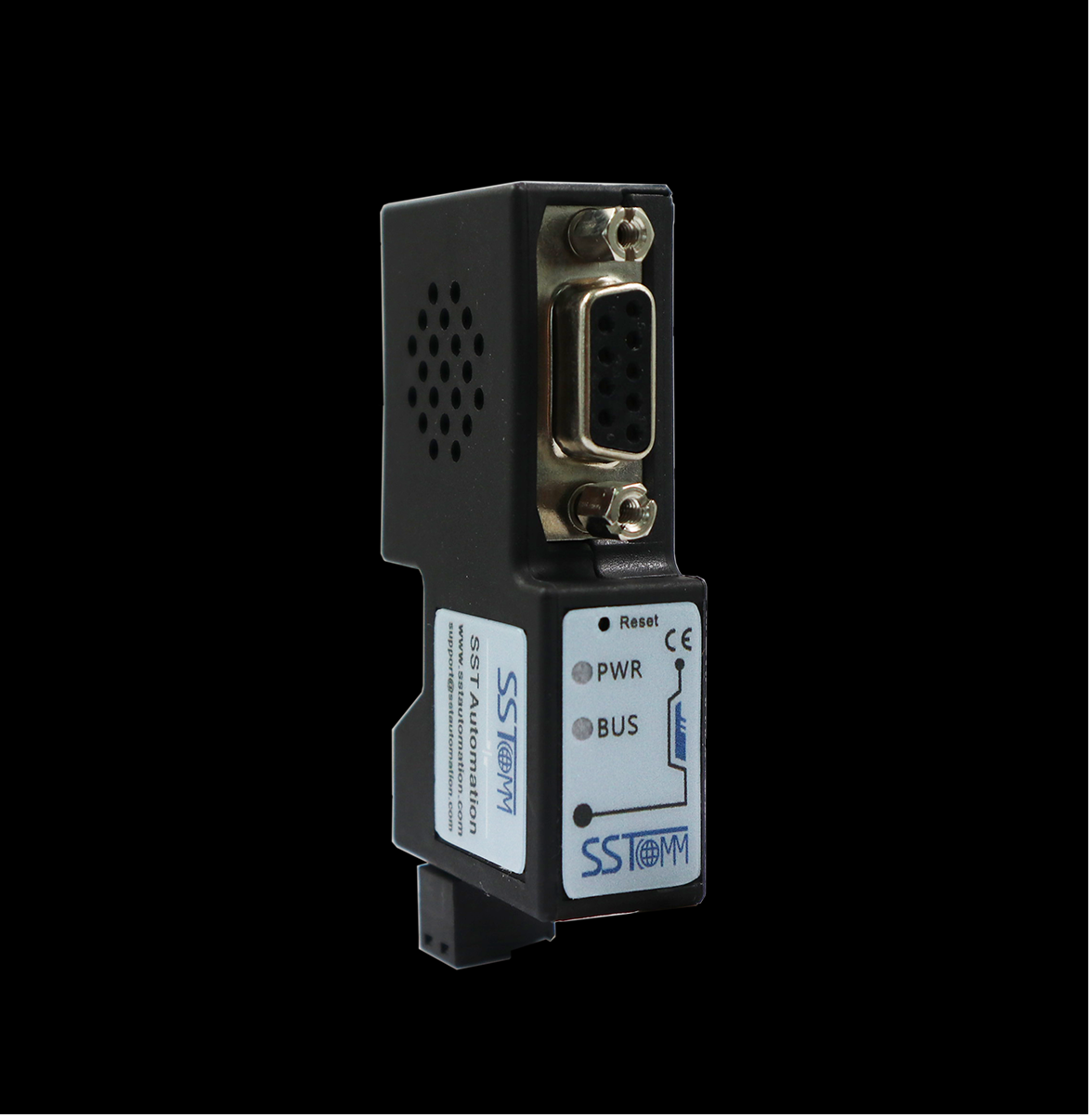

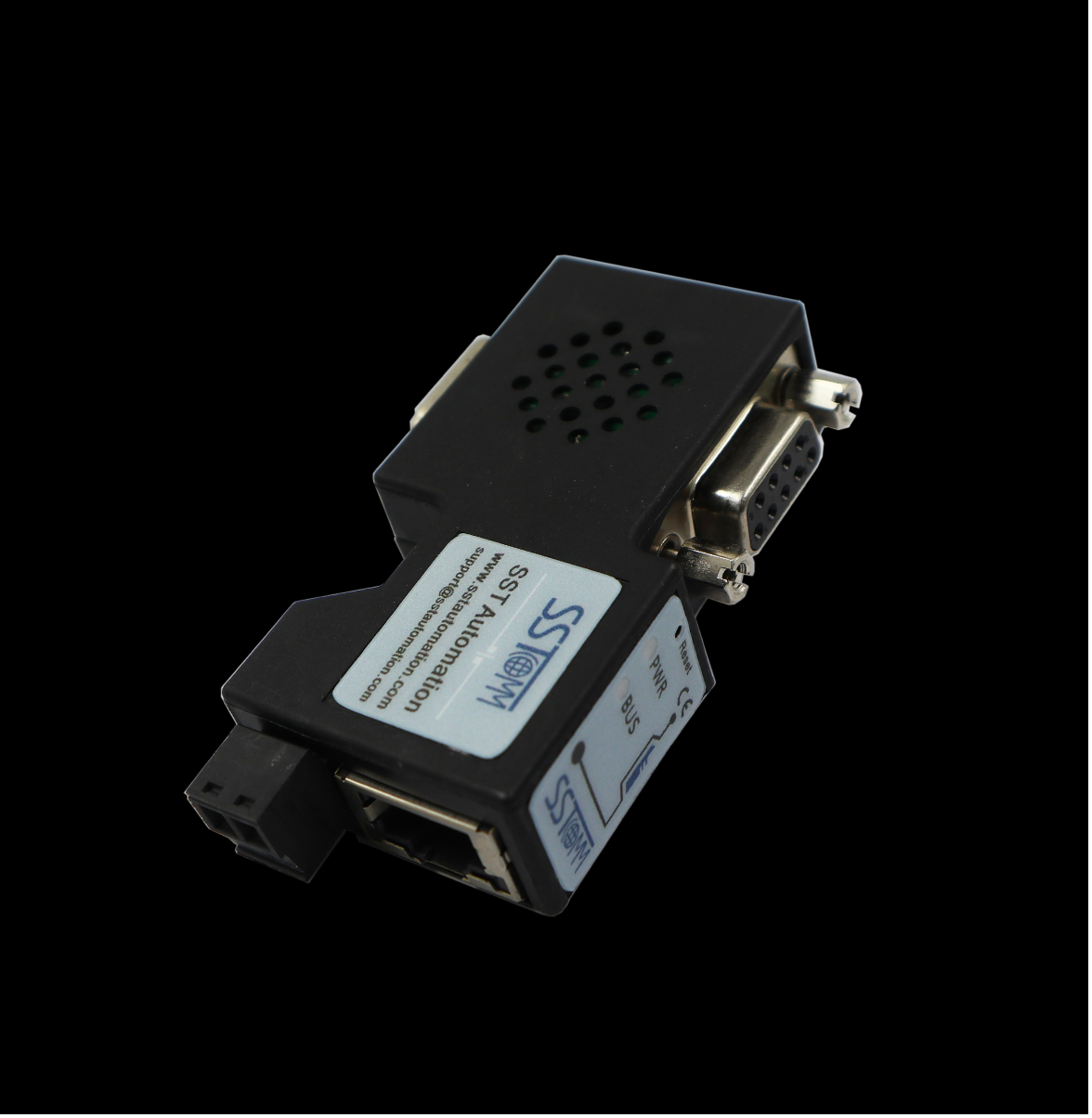

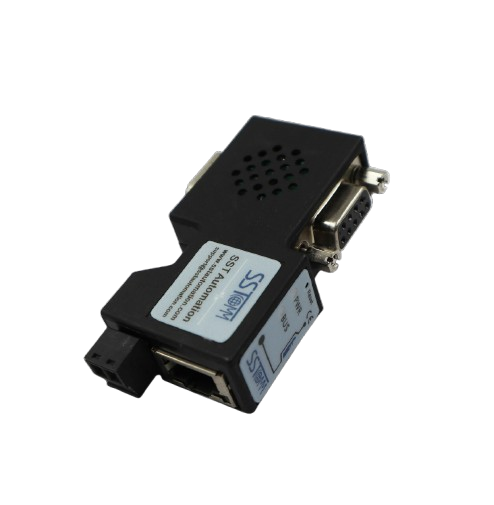

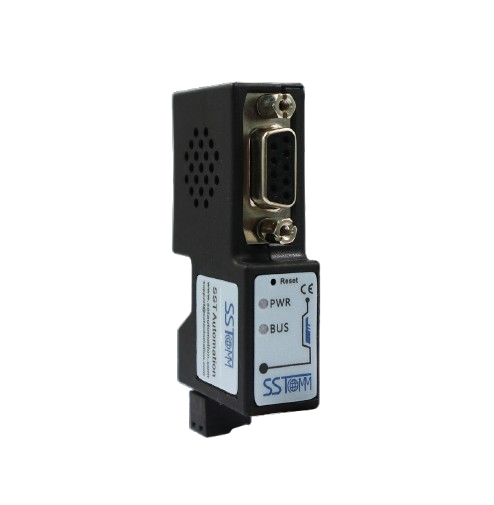

The GT100-IE-MPI adapter can effortlessly bridge your Siemens SIMATIC S7 series PLCs including the S7-200, S7-300, S7-400 models and Siemens CNC systems like the 840D and 840DSL to Ethernet networks. This innovative adapter enables real-time data monitoring through the MPI port, ensuring smooth integration of traditional Siemens PLCs into modern Ethernet infrastructures. Even for Siemens PLCs lacking an Ethernet port, the GT100-IE-MPI facilitates seamless communication when paired with KEPServerEX, enhancing your system’s flexibility and efficiency

₹28,329.00 ₹35,075.00

Inquire on WhatsApp
Compare
Add to quote

Technical Specification:

  • DB9 communication port:
    • Interface type: TIA/EIA RS-485 compatible, ESD: ±15KV, up to 32 nodes.
    • Protocol supported: Siemens S7 bus multi-master protocol, supports PPI, MPI and PROFIBUS.
    • Baud rate (bps): 9600, 19200, 45450, 93750, 187500, 500K, 1.5M.
  • Ethernet port:
    • Network port type: a 10M/100M adaptive network port.
    • Protocol supported: S7TCP (16 TCP/IP connections), Modbus TCP Server.
  • Support the connection to Node-Red.
  • Operating temperature: -4°F~140°F(-20°C ~ 60°C). Humidity: 5%~90% (non-condensing).
  • Dimensions (W*H*D): 0.67 in *2.56 in *1.29 in (17mm*65mm*33mm).
  • Installation: Siemens S7 PLC DB9 communication port plug.
  • Protection Level: IP20.

Data Sheet

Download Document

Test / Quality Data

Download Document

Drawing

Download Document
