Enclosure & Accessories, Heater

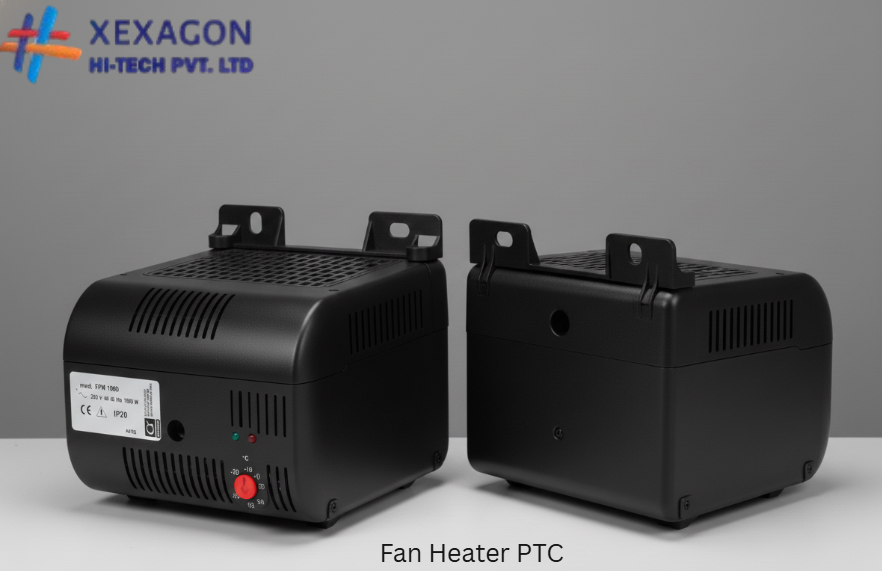

FAN HEATER FPH1200.01
Delivery Time : 3-4 Week
FAN HEATER FPH1200.01
Fan Heater PTC 1200 W 230 V, 95x160x120, w/bimetal thermostat
₹19,108.00 ₹21,714.00
FAN HEATER FPH1200.01
Fan Heater PTC 1200 W 230 V, 95x160x120, w/bimetal thermostat
| FEATURES | Unit | FPH1200 | FPH1201 | FPH1500 | FPH1501 | |
| Heating Capacity* | W | 1200 | 1500 | |||
| Power supply | V | Hz | 230 | 50/60 | 115 | 50/60 | 230 | 50/60 | 115 | 50/60 | |
| Heating element type | – | PTC Radiator | ||||
| Thermal protection | – | Thermal cut out in case of fan failure (auto-reset for 100,000 cycles) | ||||
| Casing | – | Plastic according to UL94 V-0, black | ||||
| Axial fan | – | Ball bearing, service life 50 000 hrs at 25°C (77°F), air flow rate 160 m3/h, free flow | ||||
| Control operation | – | optional | – | optional | – | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm2 | ||||
| Alarm output | – | optional | – | optional | – | |
| Protection class | – | Class I, earthed | ||||
| Protection degree EN60529 | – | IP20 | ||||
| Operating temperature | °C (°F) | -40 / +70 (-40 / +158) | ||||
| Storage temperature | °C (°F) | -45 / +80 (-49 / +176) | ||||
| Mounting | – | Screw fixing (M4) | ||||
| Installation position | – | Best efficiency in vertical position | ||||
| Dimensions HxDxW | mm | 95x160x120 | ||||
| Weight (with packaging) | Kg | 1.20 (1.27) | ||||
| Conformity/Certification | – | CE | ||||
Data Sheet
Test / Quality Data
Drawing
