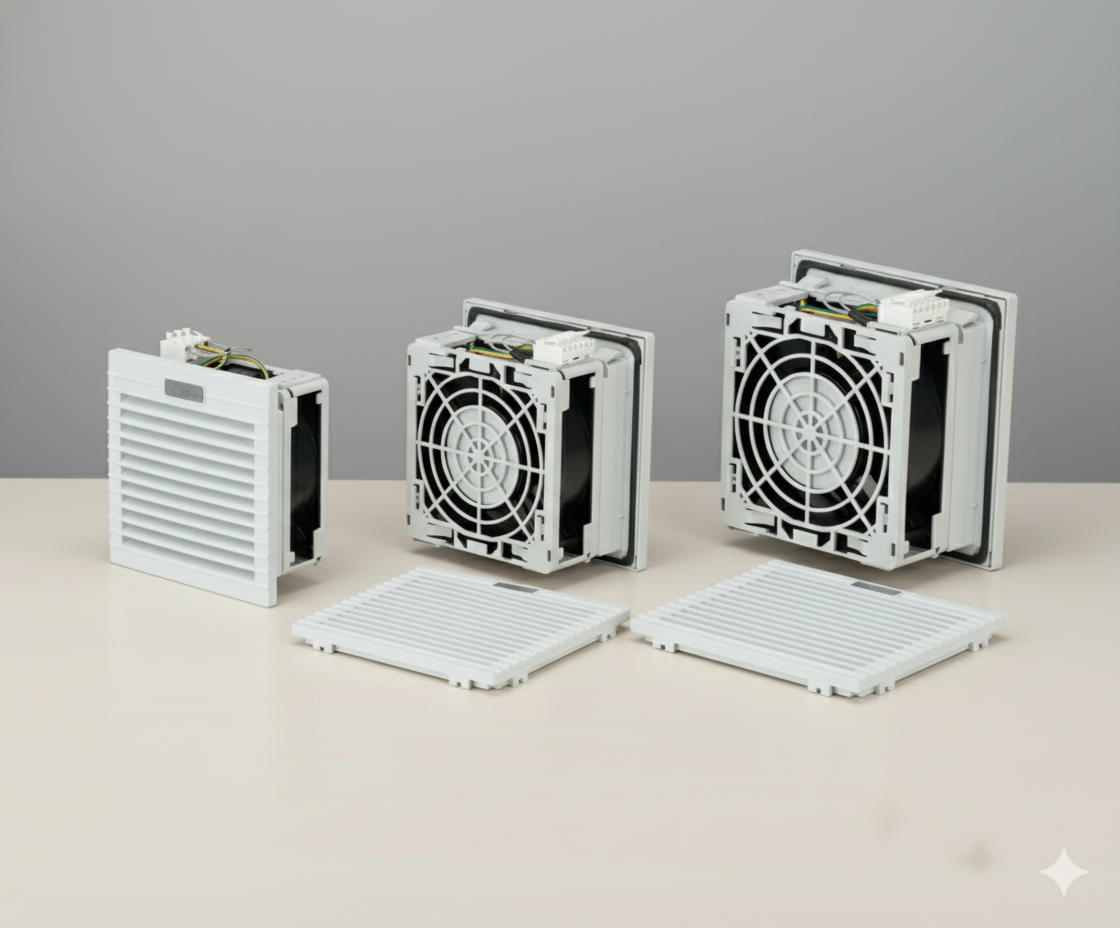

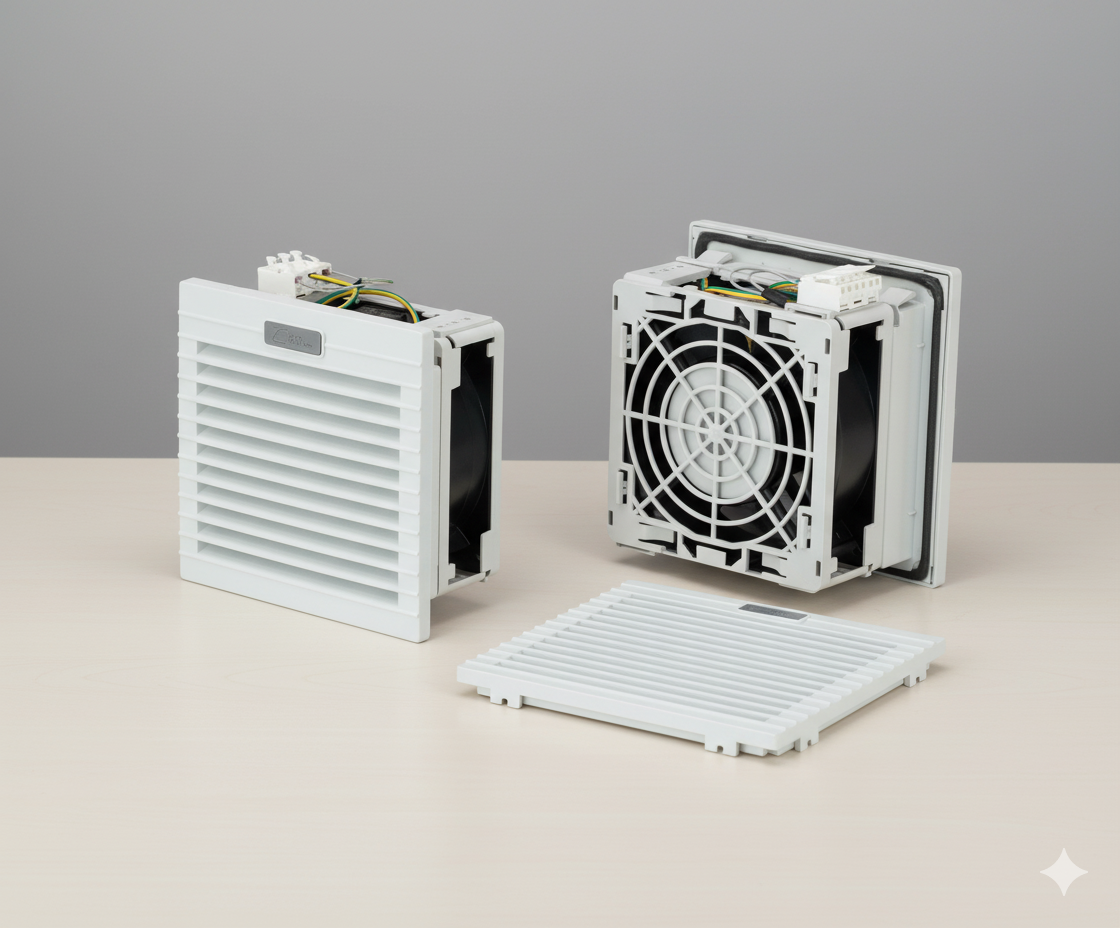

FILTER FAN ATV1100
26 m3/h, IP54, 114x114mm, 230V-50/60Hz, CE
₹3,474.00 ₹4,342.00
11 in stock
Compare| IP54 | IP55 | IP56 | IP57 | |||||||||||||
| NEMA Type12 File n. E301228 | ATV1000U | ATV1100U | ATV1101U | |||||||||||||
| IP54 UV resistant | ATV1000V | ATV1100V | ATV1101V | |||||||||||||
| Air flow rate, free blow | m3/h | – | 26 / 30 | 26 / 30 | ||||||||||||
| Air flow rate with exit filter | m3/h | – | 15 / 18 | 15 / 18 | ||||||||||||
| Filter mat EN779 | – | G3 | G3 | G3 | ||||||||||||
| Power supply | V | ph | Hz | – | 230 | 1 | 50/60 | 115 | 1 | 50/60 | ||||||||||||
| Dimensions HxWxD | mm | 114x114x27 | 114x114x73 | 114x114x73 | ||||||||||||
| Power consumption | W | – | 13 / 12 | 13 / 12 | ||||||||||||
| Current consumption | A | – | 0.10 / 0.08 | 0.14 / 0.12 | ||||||||||||
| Overcurrent protection | – | – | impedance | impedance | ||||||||||||
| Electrical connection | – | – | 3-poles spring terminals * | 3-poles spring terminals * | ||||||||||||
| Duty cycle | – | – | 100% | 100% | ||||||||||||
| Operating temperature | °C (°F) | -10 / +70 (+14 / +158) | -10 / +70 (+14 / +158) | |||||||||||||
| Protection class | – | – | Class I | Class I | ||||||||||||
| Noise level | dB(A) | – | 30 (35) | 30 (35) | ||||||||||||
| Flow direction | – | – | reversible, default factory setting outside-in | reversible, default factory setting outside-in | ||||||||||||
| Bearing | – | – | ball | ball | ||||||||||||
| Service life (at 40°C) | hr | – | 50,000 | 50,000 | ||||||||||||
| Material | – | thermoplastic UL94V-0, color RAL7035 | thermoplastic UL94V-0, color RAL7035 | thermoplastic UL94V-0, color RAL7035 | ||||||||||||
| (IP54 UV resistant): thermoplastic, color RAL7035 | (IP54 UV resistant): thermoplastic, color RAL7035 | (IP54 UV resistant): thermoplastic, color RAL7035 | ||||||||||||||
| Wall thickness | mm | 1.2 – 2.4 | 1.2 – 2.4 | 1.2 – 2.4 | ||||||||||||
| Gasket | – | Foam seal gasket | Foam seal gasket | Foam seal gasket | ||||||||||||
| Weight (with packaging) | kg | 0.09 (0.11) | 0.41 (0.46) | 0.41 (0.46) | ||||||||||||
| Package dimensions H x W x D | mm | 125x125x35 | 125x125x80 | 125x125x80 | ||||||||||||
| Mounting | – | Fast clip-on | Fast clip-on | Fast clip-on | ||||||||||||
| Conformity/Certifications | – |
|
CE, UL (model with U letter at the end of the code) | CE, UL (model with U letter at the end of the code) | CE, UL (model with U letter at the end of the code) | CE, UL (model with U letter at the end of the code) | ||||||||||
