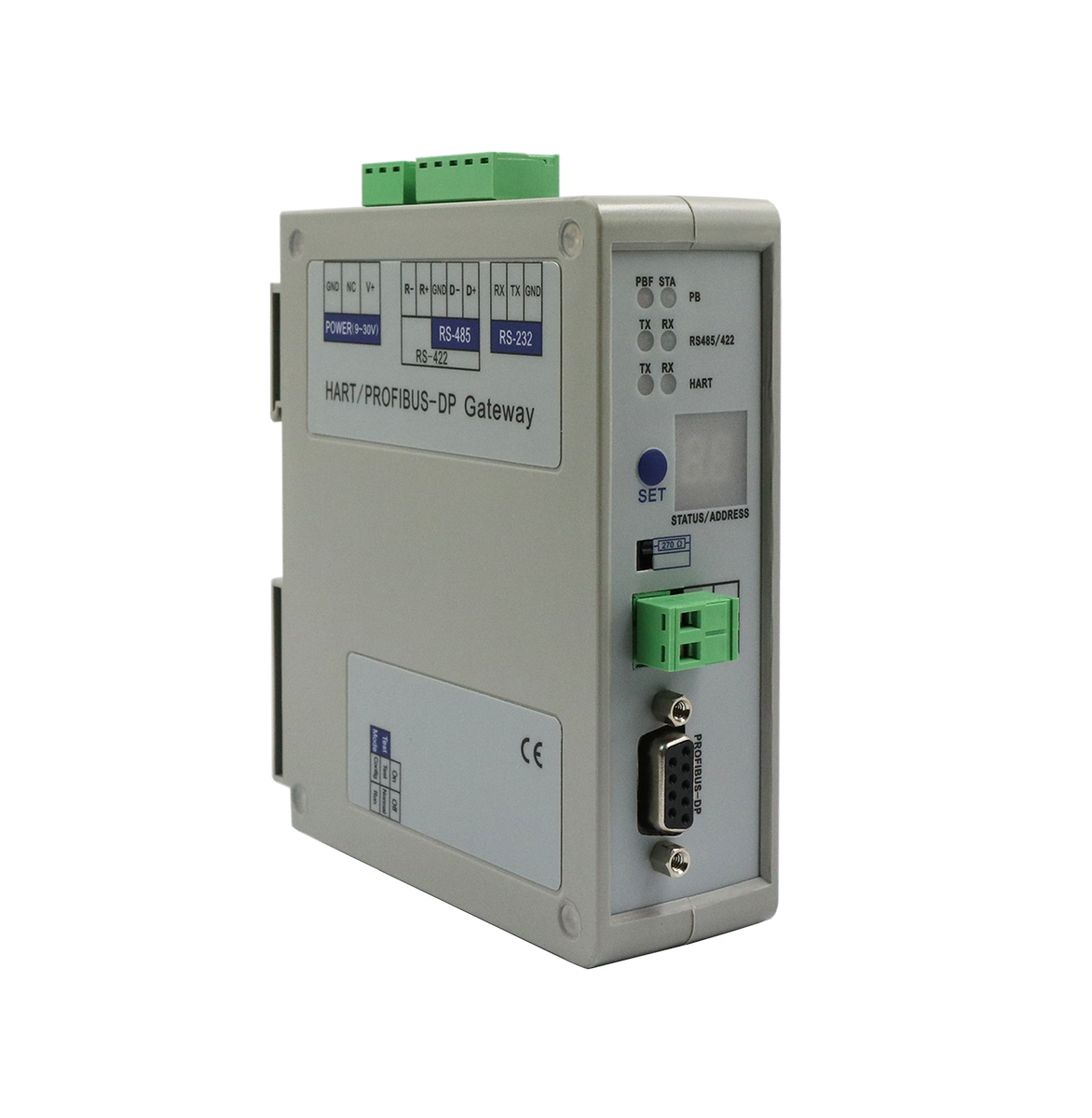

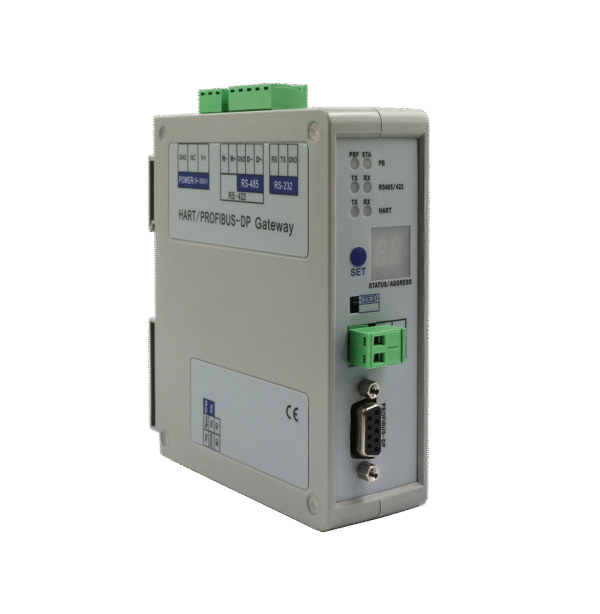

HART / PROFIBUS DP Gateway

Technical Specification:

• Supports one HART channel.
  • HART can be used as a primary or secondary master.
  • Supports connecting at most 13 HART devices when using internal resistor (270Ω).
  • Supports connecting at most 15 HART devices when using external resistor (250Ω).
• Supports burst mode, long frame format and all HART commands.
• Easy configuration with free SST-HT-CFG software tool.
  • Supports monitoring and debugging HART commands.
• PROFIBUS DP input-bytes and output-bytes can be set freely:
  • Max Input-bytes ≤244 Bytes;
  • Max Output ≤244 Bytes;
  • Max Input-bytes + Max Output-bytes ≤ 488 bytes.
• Operating Temp: -40°F to 158°F(-40ºC to 70ºC); Rel. Humidity: 5% to 95% (non-condensing).
• Dimension (W*H*D): 1.6 in*5 in*4.33 in (40mm*125mm*110mm).
• Mounting: DIN Rail Mounting (35mm).
