HEATER HT150.000

HEATER HT150.000

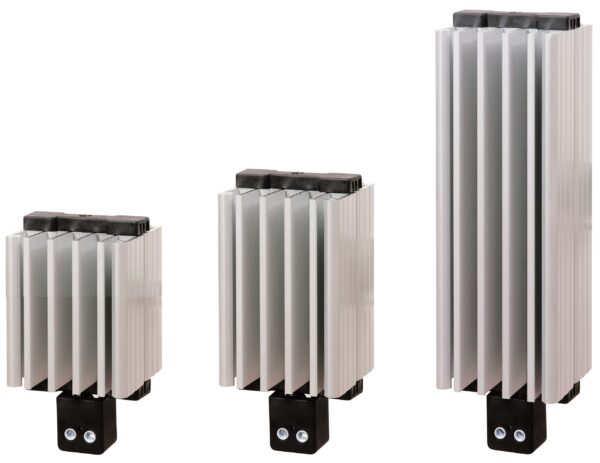

Heater PTC 150 W terminals, 220x61x59 mm, CE, UL

₹6,386.00 ~~₹7,983.00~~

FEATURES	Unit	HT25.000	HT50.000	HT75.000	HT100.000	HT150.000
Heating Capacity*	W	25	50	75	100	150
Power supply	V	120-240V AC/ DC
Inrush current	A	2.5	3.5	4	5	9.5
Delayed fuse (advised)	A	4	4	6.3	8	10
Heating element type	–	PTC resistor, self-regulation
Electrical connections	–	screw terminals for stranded or rigid wire 2.5 mm²
Protection class	–	Class II
Protection degree EN60529	–	IP20
Operating temperature	°C (°F)	-45 / +70 (-49 / +158)
Storage temperature	°C (°F)	-45 / +80 (-49 / +176)
Radiator	–	Extruded aluminium profile
Mounting	–	Clip for mounting on DIN rail 35 mm EN50022
Installation position	–	Best efficiency in vertical position
Dimensions HxWxD	mm	110x61x59		140x61x59		220x61x59
Weight (with packaging)	Kg	0.25 (0.28)		0.32 (0.36)		0.57 (0.62)
Conformity/Certification	–	CE – UL File n. E301228

Data Sheet

Test / Quality Data

Drawing

HEATER HT150.000
Heater PTC 150 W terminals, 220x61x59 mm, CE, UL
