-20%

HEATER STHT50.000

HEATER STHT50.000

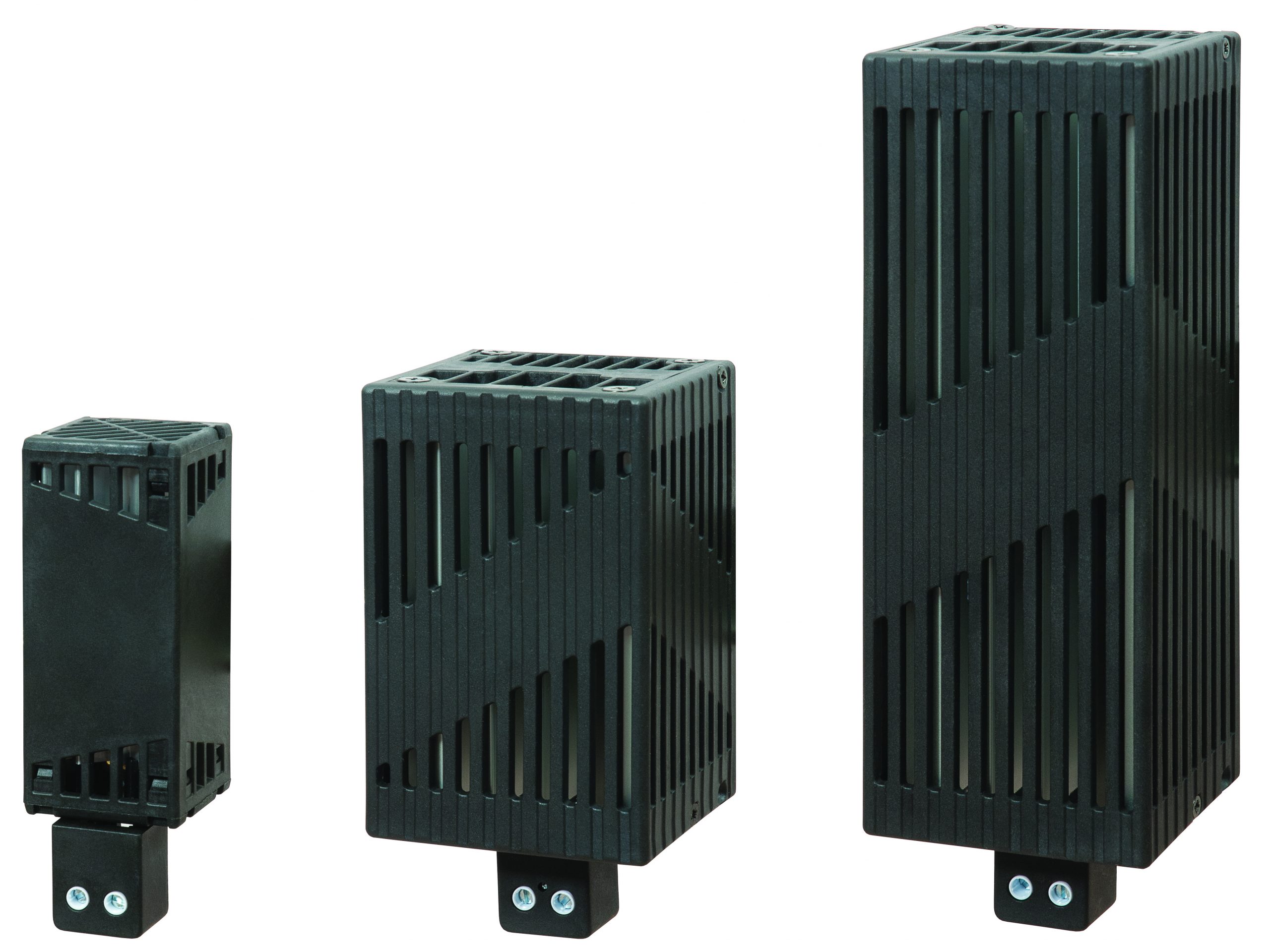

Heater PTC 50 W, safe touch finger protection, terminals, 41x41x125 mm, CE, UL

₹3,691.00 ~~₹4,614.00~~

FEATURES	Unit	STHT25.000	STHT50.000	STHT75.000	STHT100.000	STHT150.000
Heating Capacity*	W	25	50	75	100	150
Power supply	V	120-240V AC/DC
Inrush current	A	2.5	3.5	4	5	9.5
Delayed fuse (advised)	A	4	4	6.3	8	10
Heating element type	–	PTC resistor, self-regulation
Electrical connections	–	screw terminals for stranded or rigid wire 2.5 mm²
Protection class	–	Class II
Protection degree EN60529	–	IP20
Operating temperature	°C (°F)	-45 / +70 (-49 / +158)
Storage temperature	°C (°F)	-45 / +80 (-49 / +176)
Radiator	–	Extruded aluminium profile, with plastic cover
Mounting	–	Clip for mounting on DIN rail 35 mm EN50022
Installation position	–	Best efficiency in vertical position
Dimensions HxWxD	mm	125x41x41		140x70x63		220x70x63
Weight (with packaging)	Kg	0.17 (0.19)		0.41 (0.45)		0.69 (0.74)
Conformity/Certification	–	CE – UL File n. E301228

Data Sheet

Test / Quality Data

Drawing

HEATER STHT50.000
Heater PTC 50 W, safe touch finger protection, terminals, 41x41x125 mm, CE, UL
