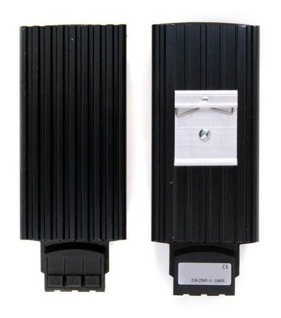

HEATER XHG-100
,

HEATER XHG-100

Compare

HEATER XHG-100
» Pressure Clamp Connectors
» Dynamic Heating Up
» Wide Voltage Range
» Temperature Limiting
» Energy Saving
» Clip Fixing
» Quick Installation

₹1,650.00 ₹1,700.00

Inquire on WhatsApp
Compare
Add to quote

HEATER XHG-100
» Pressure Clamp Connectors
» Dynamic Heating Up
» Wide Voltage Range
» Temperature Limiting
» Energy Saving
» Clip Fixing
» Quick Installation

Product Code XHG15 XHG30 XHG45 XHG60 XHG75 XHG100 XHG150
Model Code HG14001 HG14003 HG14004 HG14005 HG1400G HG14007 HG14008
Capacity 15W 30W 45W G0W 75W 100W 150W
Supply Voltage 120-240v AC/DC (Min. 110v, Max. 2G5v)
Max. Current 1.5A 2.5A 3.0A 3.5A 4.0A 4.5A 9.0A
Heating Element PTC Resistor, Self-regulating & Temp. Limiting
Heater Body Extruded Aluminium Profile, Anodized
Connection 3 Pressure Clamps For Stranded Wire 0.5-1.5mm² And Rigid Wire 0.5- 2.5mm²
Connection Casing Plastic According To Ul94 V-0, Black
Mounting Clip For 35mm Din Rail, En 50022
Operating Temp. -45 To +70 °C (-49 To +158 °F)
Protection Type IP20 / I (Earthed)
Length G5mm G5mm G5mm 140mm 140mm 140mm 220mm
Weight 0.3 Kg 0.3 Kg 0.3 Kg 0.5 Kg 0.5 Kg 0.5 Kg 0.8 Kg
Certification CE, RoHS Compliance

Data Sheet

Download Document

Test / Quality Data

Download Document

Drawing

Download Document
