Enclosure & Accessories, Thermostat

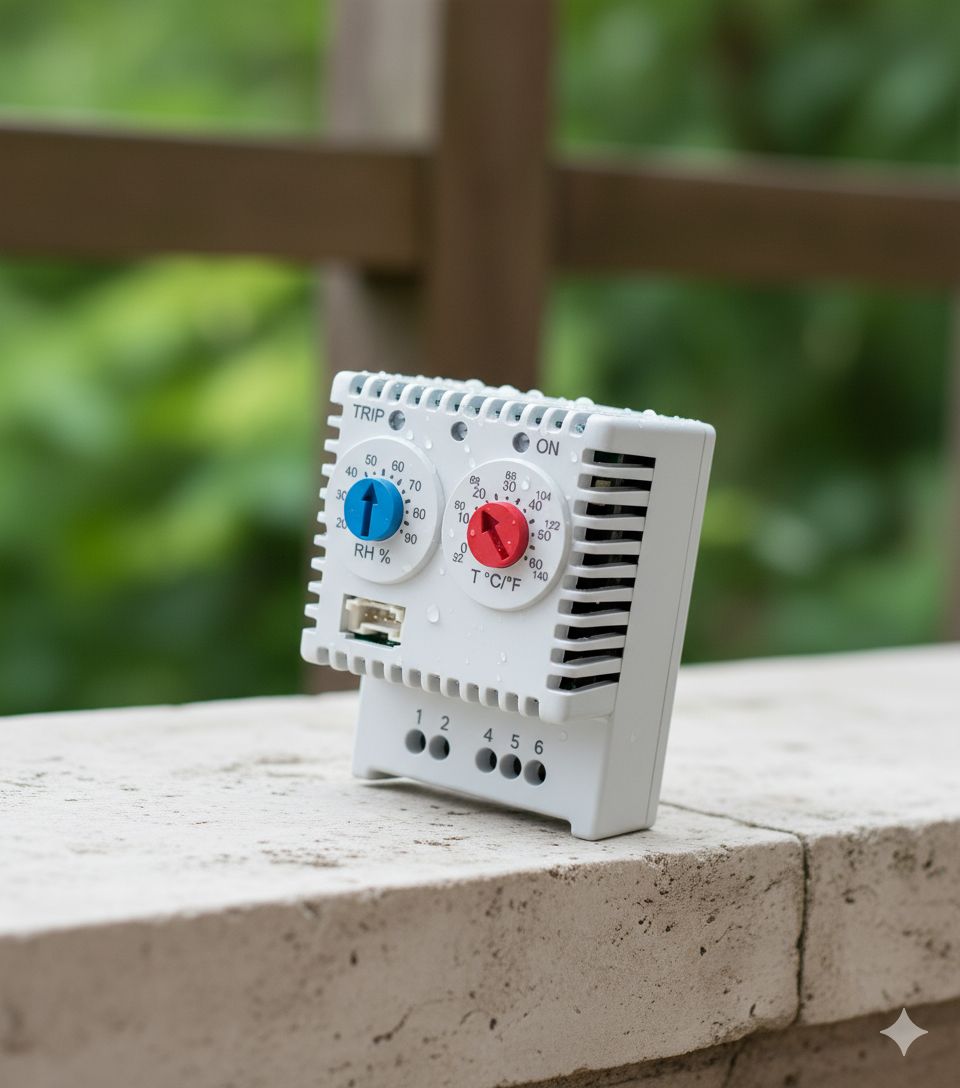

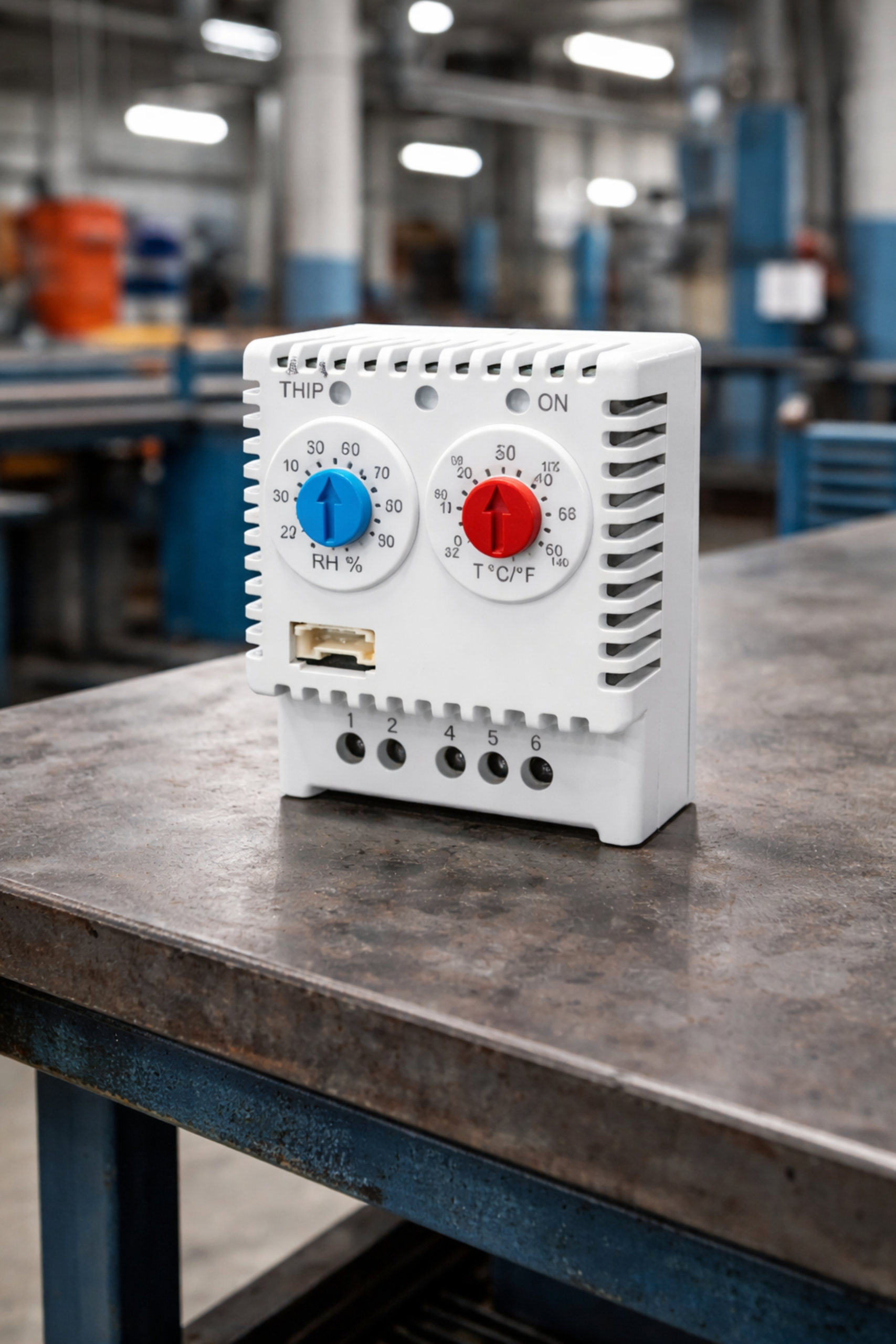

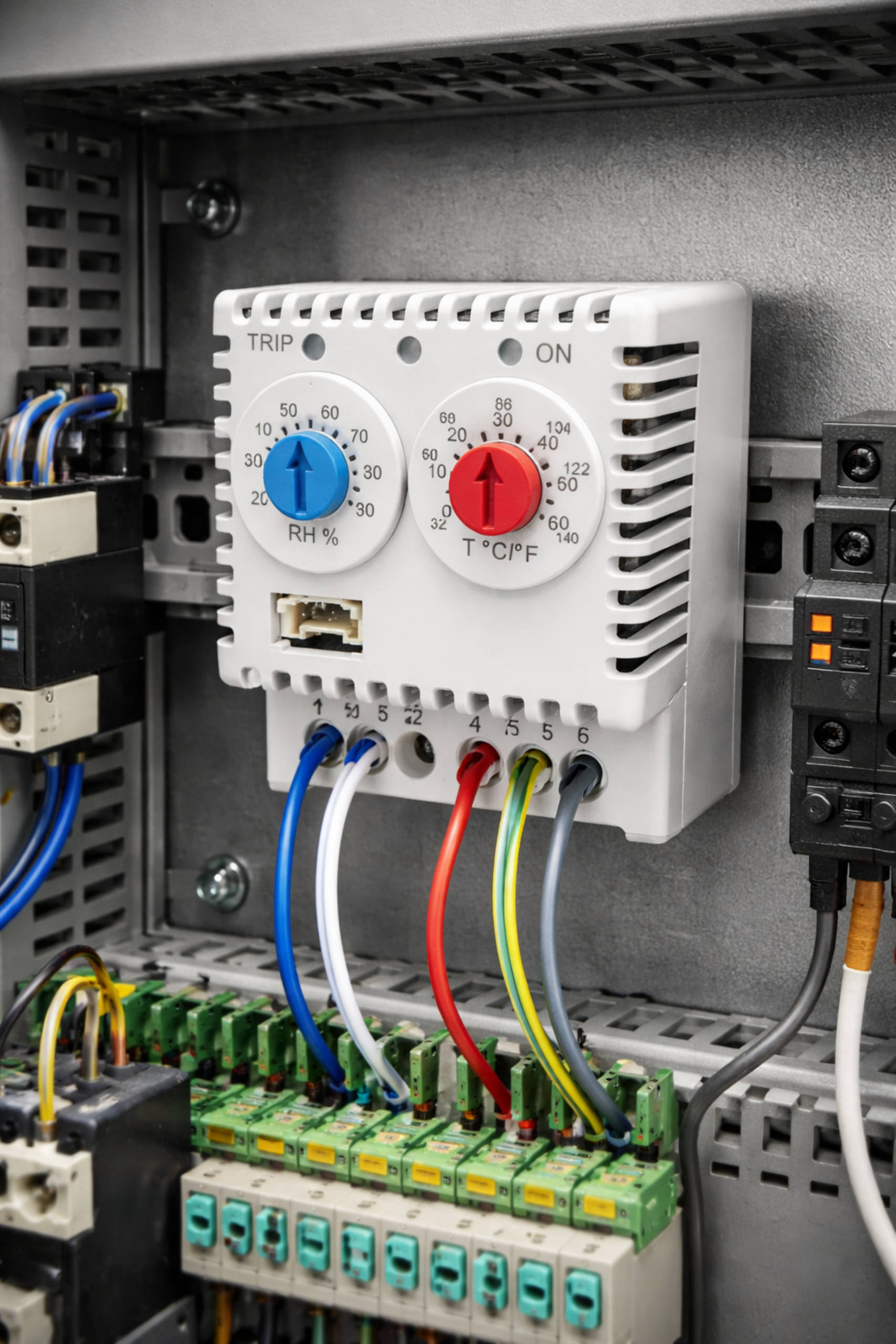

HYGRO – THERMOSTAT ETUH22
HYGRO-THERMOSTAT ETUH22 Electronic Hygro-thermostat 0-60 °C 30-90% RH, 230V-50/60Hz, CE, UL
₹6,950.00 ₹8,900.00
| FEATURES | Unit | ETUH22.AA0 | |||||||||
| Power supply | V | Hz | 24-72 Vdc 24-250 | 50/60 Hz | |||||||||
| Temperature setting range | °C (°F) | 0 / +60°C (+32 / +140°F) | |||||||||
| Rel. Humidity setting range | Rh% | 20 / 90Rh% | |||||||||
| Precision | – | ±1K | ±1% | |||||||||
| Temperature Hysteresis | K | 2 | |||||||||
| Relative Humidity Hysteresis | % | 4 | |||||||||
| Max switching current | |||||||||||
| NO at 250Vac resistive load | A | 10 | |||||||||
| NO at 30Vdc resistive load | A | 8 | |||||||||
| NO at 240Vac motor load | Hp | 1/2 | |||||||||
| NO at 120Vac motor load | Hp | 1/4 | |||||||||
| NC at 250Vac resistive load | A | 10 | |||||||||
| NC at 30Vdc resistive load | A | 8 | |||||||||
| Contact type | Change over | ||||||||||
| Contact resistance | < 10 | ||||||||||
| Service life | cycles | > 100.000 | |||||||||
| Electrical connection | – | 5-pole terminal for 2.5 mm² wire | |||||||||
| Optical signal | – | LED | |||||||||
| Casing | – | PA6, UL94 V0 self-extinguishing, light grey RAL 7035 | |||||||||
| Protection degree EN60529 | – | IP20 | |||||||||
| Operating | °C (°F) | 0 / +60°C (+32 / +140°F) | |||||||||
| Storage temperature | °C (°F) | -40 / 70 °C (-40 / +158°F) | |||||||||
| Mounting | – | Clip for mounting on DIN rail 35 mm EN60715 | |||||||||
| Installation position | – | Vertical | |||||||||
| Dimensions HxWxD | mm | 69x53x39 | |||||||||
| Weight (with packaging) | kg | 0.11 (0.12) | |||||||||
| Conformity | – | CE, UL File n. E348803 | |||||||||
Data Sheet
Test / Quality Data
Drawing
HYGRO-THERMOSTAT ETUH22 Electronic Hygro-thermostat 0-60 °C 30-90% RH, 230V-50/60Hz, CE, UL
