Enclosure & Accessories, Thermostat
KTO011 THERMOSTAT
Availability:
1060 in stock
Delivery Time : 3-4 Week
KTO011Thermostat

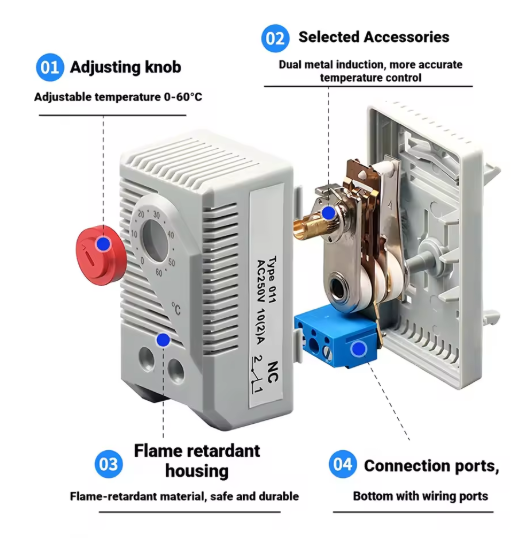

Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.
₹280.00 ₹320.00
1060 in stock
Compare
KTO011Thermostat
Thermostat (NC); contact breaker for regulating heaters. The contact opens when temperature is rising.
| Temperature Range | 0 to 60 °C |
| Sensor Element | Thermostatic Bimetal |
| Contact Type | NC |
| Contact Resistance | <10m Ohm (Incidental Connection Line) |
| Max. Switching Capacity | 250 Vac, 10(2) A / 120vac, 15(2) A DC 30W At 24VDC To 72VDC |
| Connection | 2-pole Terminal, Clamping Torque 0.5nm Max., Rigid Wire 2.5mm², Stranded Wire1 1.5mm² |

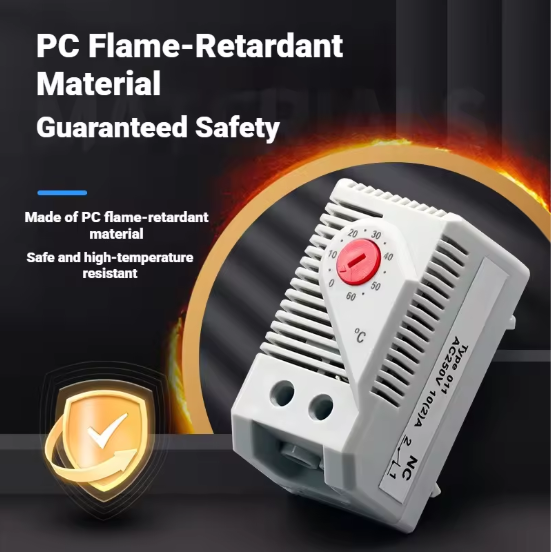

| Casing | Plastic According To UL94 V-0, Light Grey |
| Mounting | Clip For 35mm Din Rail |
| Operating Temp. | -20 To +80°C |
| Protection Type | IP20 |
| Certification | CE, RoHS Compliance |
Data Sheet
Test / Quality Data

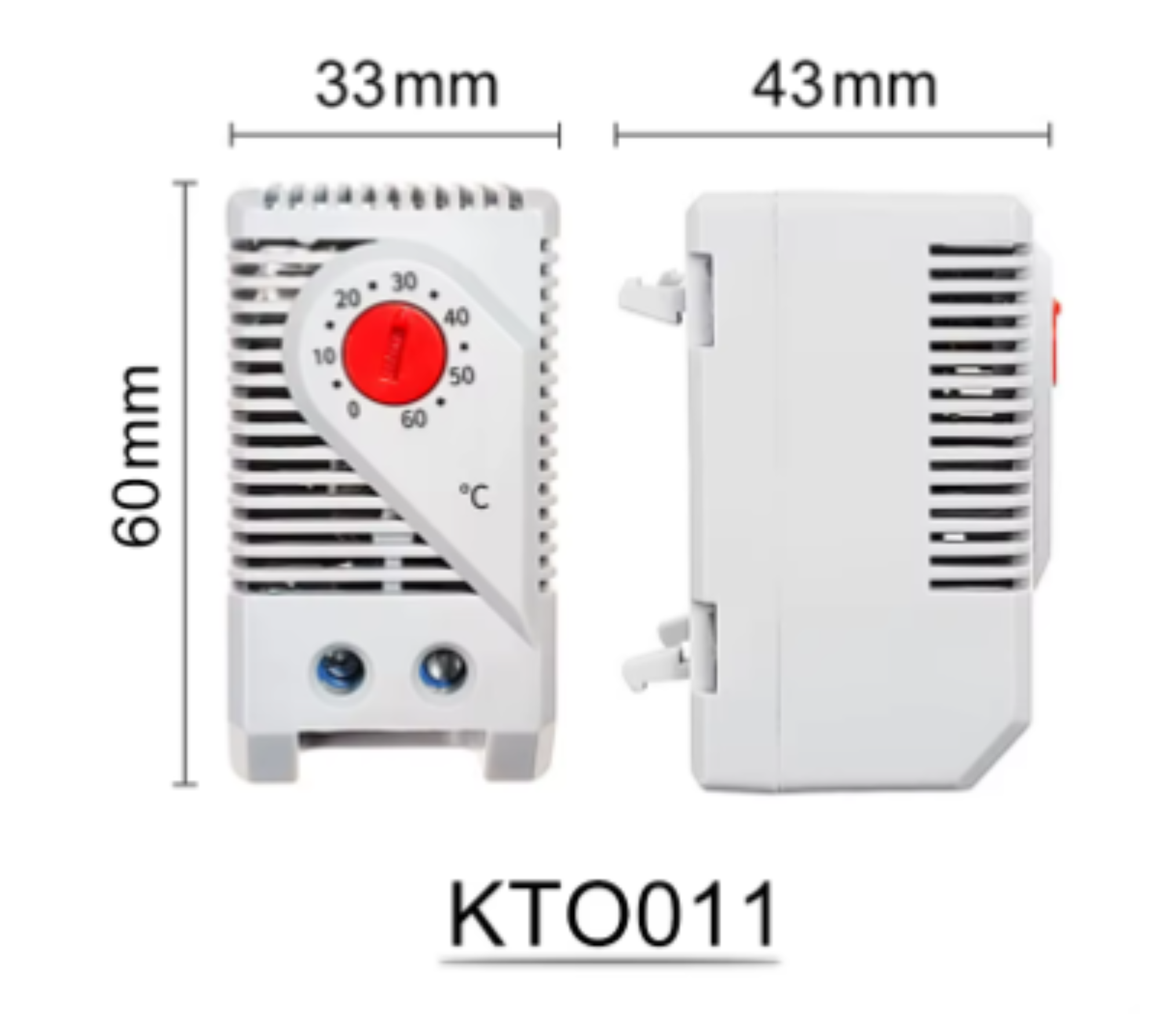

Drawing
