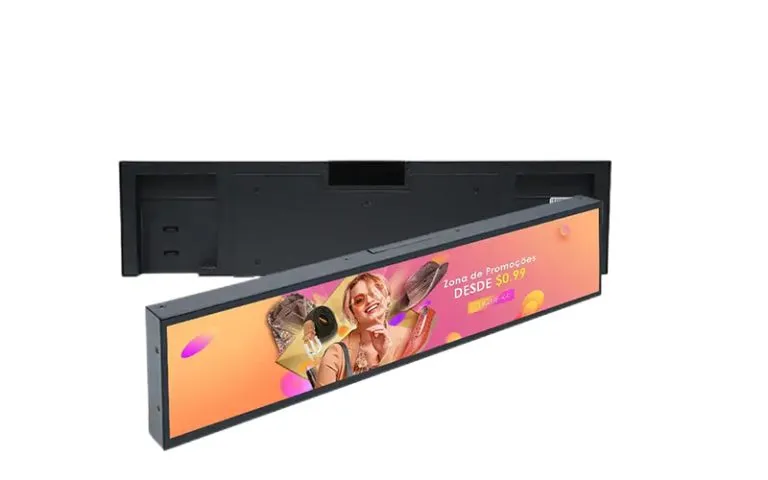

Panoramic Stretched Bar LCD display 19″
Panel model : XN190FBM-NB0
Diagonal Size : 19″
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1920(RGB)×3600,
₹75,040.00 ₹78,000.00
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.64(H) × 89.37(V) |
| Outline Dim. | 491.5(H) × 109.4(V) × 8.4(B) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Min.) |
| Contrast Ratio | 1200:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 80% NTSC |
| Light Source | WLED , 10K hours , W/O Driver |
| Weight | 780G |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Power Supply | 3.3/3.3V (Typ.)(VDD/VDDA) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
XEXAGON is a 19 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C , and the maximal vibration level of 2.9G (28.4 m/s²). It’s general features are following: sRGB, Wide Temperature, 3G Vibration, Hight Brightness, WLED Backlight, Bar Display, U/D,L/R Reverse, Matte . Based on its features,
