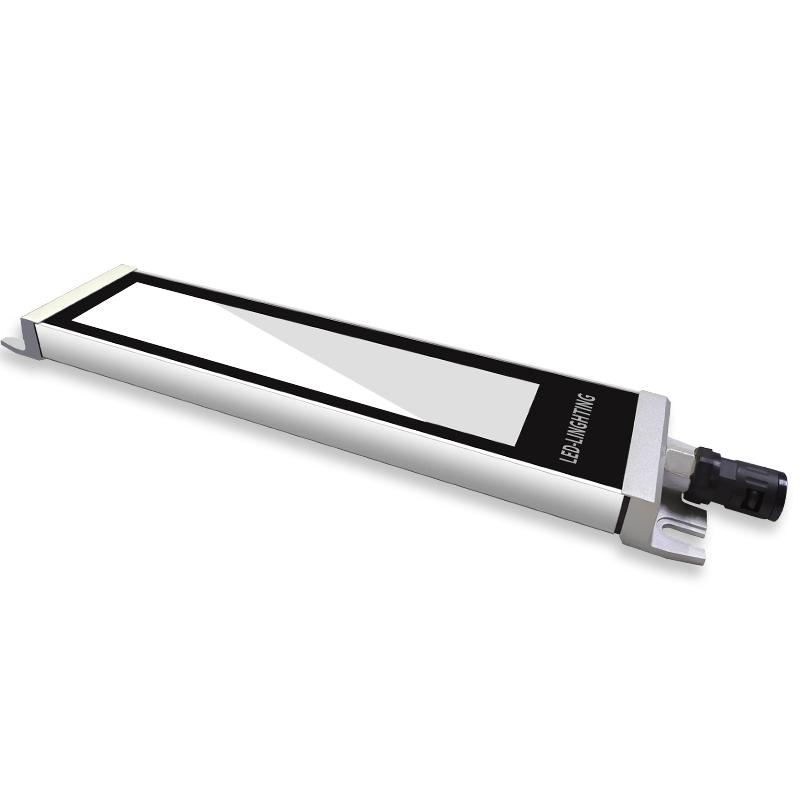

MACHINE LIGHT XNH-M9P

Light Solution, Linear Machine Light, Machine Light

MACHINE LIGHT XNH-M9P

DeliveryTime :-3-4 Week

MACHINE LIGHT XNH-M9P

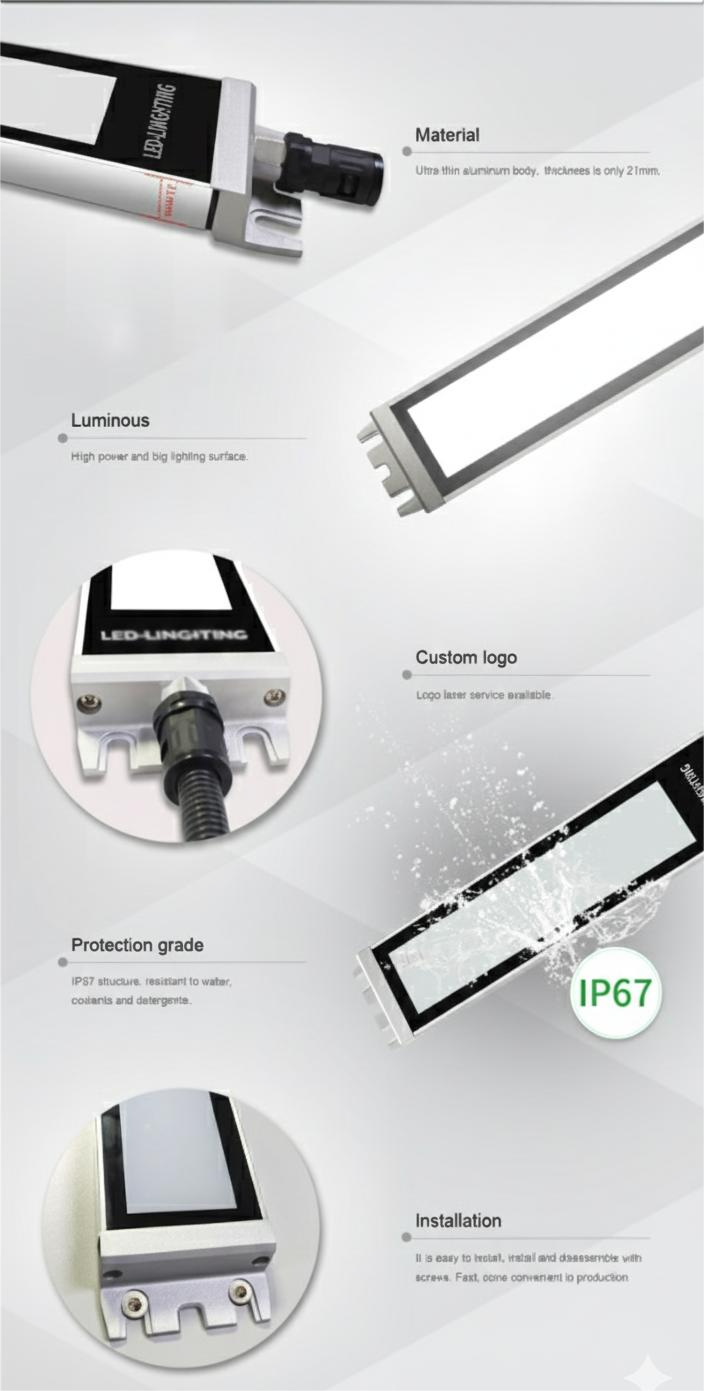

XNH-M9S is designed for harsh environment.
Using anodizedaluminum lamp body, tempered glass, PA + glass fiber end cap.
IP67 rating, resistant to high pressurewash, coolants and detergents.
Adopt high brightness SMD2835 LED chip, 120lm/w.
Frosted cover available to decrease glare.
Easy to install and control the lighting direction.
Variety input voltages optional: AC90-240V50/60Hz, AC/DC12V, AC/DC24V.

₹3,168.00 ~~₹5,270.00~~

Inquire on WhatsApp

MACHINE LIGHT XNH-M9P

XNH-M9S is designed for harsh environment.
Using anodizedaluminum lamp body, tempered glass, PA + glass fiber end cap.
IP67 rating, resistant to high pressurewash, coolants and detergents.
Adopt high brightness SMD2835 LED chip, 120lm/w.
Frosted cover available to decrease glare.
Easy to install and control the lighting direction.
Variety input voltages optional: AC90-240V50/60Hz, AC/DC12V, AC/DC24V.

Specification	Details
Model No.	XNH-M9P
Ordering Code Example	ONN M9P – B 1 600S 12W
Power (Length)	12 W (304 mm), 18 W (404 mm), 28 W (604 mm)
Input Voltage	DC 24V
Lumen Efficiency	90 lm/W
CRI	>80
Beam Angle	120°
Material	Aluminum housing + tempered glass
Color Temperature	2800–3200K / 4000–4500K / 6000–6500K
Length Options	300S: 304 mm 400S: 404 mm 600S: 604 mm
IP Rating	IP67
Lifetime	50,000 h
Working Temperature / Humidity	–20°C to +45°C / 10%–90%
Storage Temperature / Humidity	–40°C to +60°C / 10%–90%
Installation	Fixed by screws
Cable	0.55 m (2 × 0.3 mm²)
Color Options	Cool White: 6000–6500K Natural White: 4000–4500K Warm White: 2800–3200K
