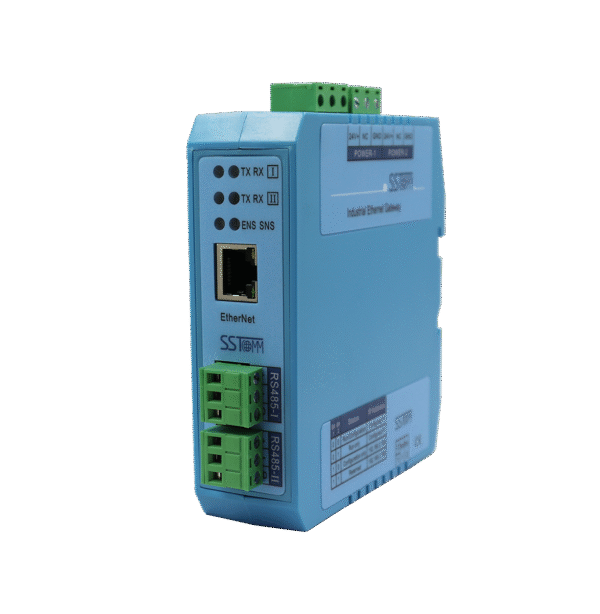

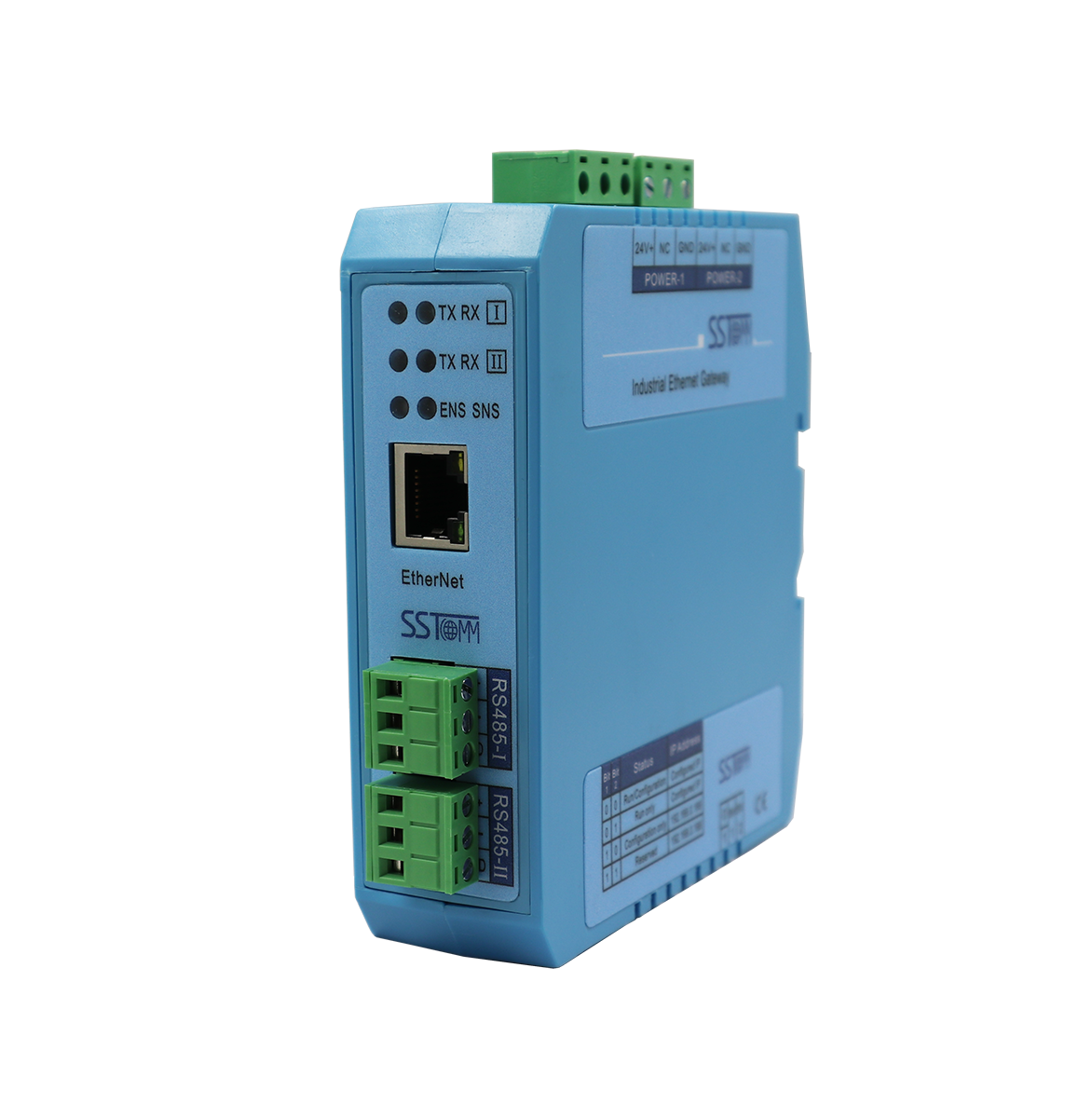

Modbus / BACnet IP Gateway

BACnet/IP Features

• Supports protocol conversion between BACnet/IP and Modbus serial.
• Ethernet self-adaptive with IP address conflict detection and automatic routing for reliable networking.
• Provides online scanning and configuration for efficient device management.
• Supports BACnet/IP services: Who-Is, I-Am, Who-Has, I-Have, Read Property, Write Property, Read Property Multiple.
• Supports up to:
  • 500 Binary Inputs (BI)
  • 300 Binary Outputs (BO)
  • 300 Binary Values (BV)
  • 500 Analog Inputs (AI)
  • 300 Analog Outputs (AO)
  • 300 Analog Values (AV)
  • 500 Multi-State Inputs (MSI)
  • 100 Multi-State Outputs (MSO)

Modbus Serial Features

• Each serial port supports up to 100 Modbus commands.
• Dual RS485 ports with half-duplex communication.
• Baud rate options: 9600, 19200, 38400, 57600, 115200 bps.
• Configurable parity: none, odd, even, mark, and space.
• Selectable stop bits: 1 or 2 bits.
• Each RS485 port includes 1kV galvanic isolation for signal integrity and device protection.

General

• Redundant dual power inputs for enhanced reliability.
• Power supply: 24VDC (range: 11–30VDC), 90mA @ 24VDC.
• Operating temperature: -20°C to 60°C (-4°F to 140°F).
• Humidity: 5% to 95% RH (non-condensing).

Physical Features

• Dimension (W*H*D): 1.33 in * 4.56 in * 4.21 in (34 mm * 116 mm * 107 mm).
• Mounting: 35mm DIN rail.
• Protection rating: IP20.
