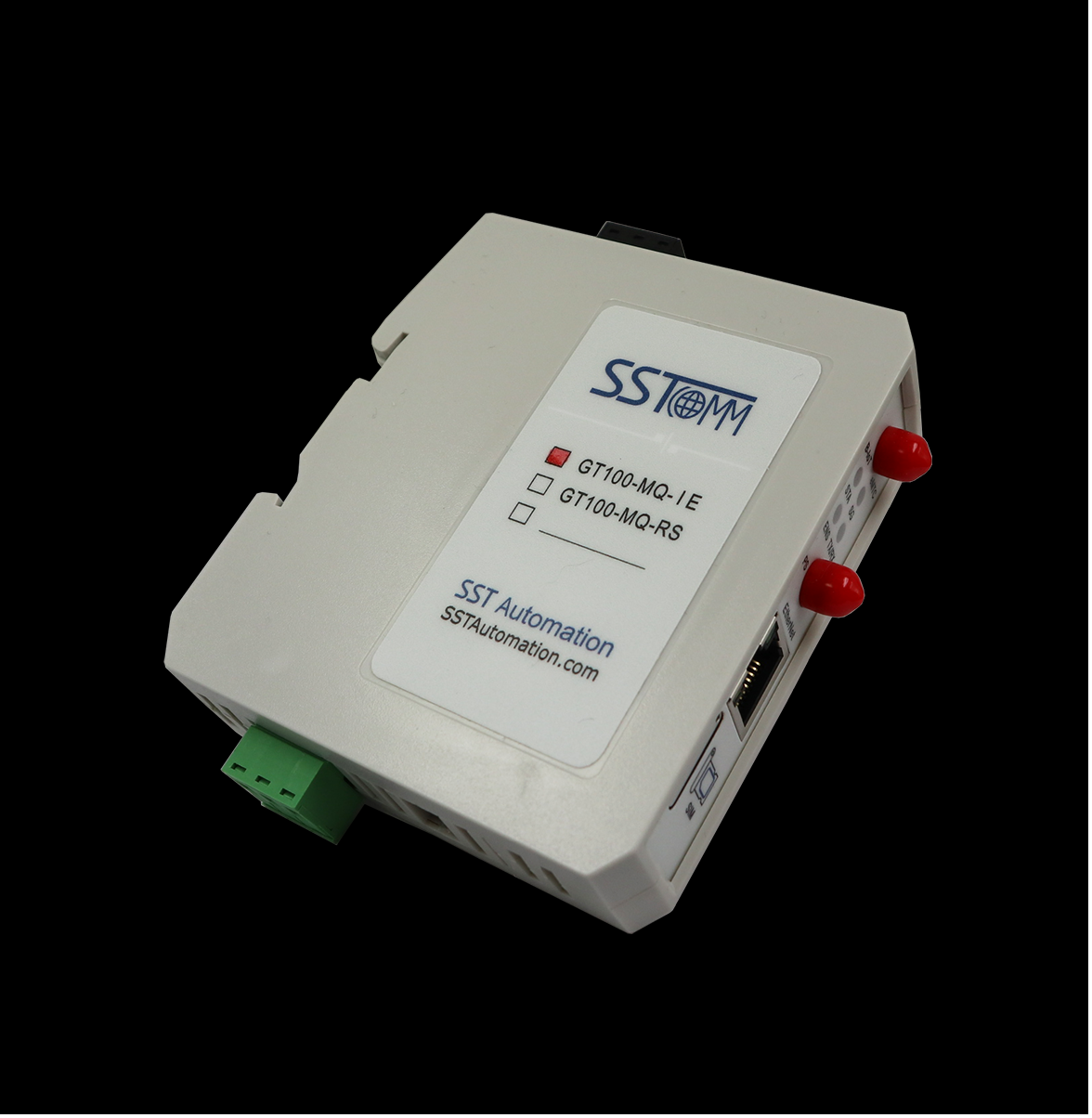

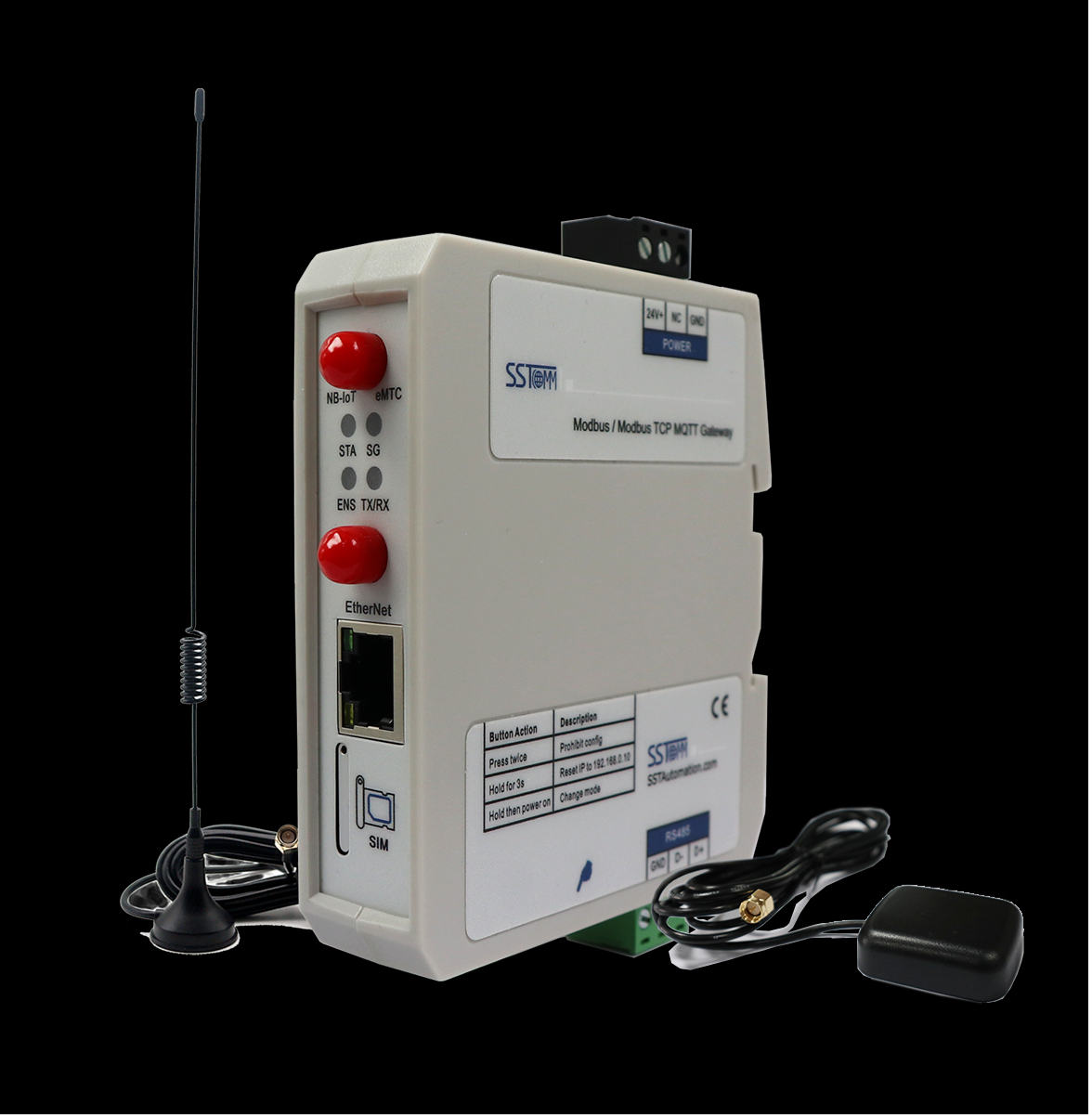

Modbus RS485/TCP to Cellular MQTT Gateway
Model No. GT100-MQ-IE
Make: SSTCOM
₹33,264.00
Compare
The GT100-MQ-IE gateway offers the ability to connect Modbus serial/RS485 devices and Modbus TCP/Ethernet client/servers to MQTT publisher/subscriber over LTE cellular network.
Supports MQTT connection via eMTC/NB-IoT network
Carrier Network Category: CAT-M1/NB1
Speed: Up CAT-M1 – 375 kbps; NB1 – 66kbps Down CAT-M1 – 375 kbps; NB1 – 26kbps
LTE Band Support: 2, 3, 4, 5, 8, 12, 13, 20, 25, 26, 28, 71, 85
GPS Feature: Standalone
TLS V1.2 and DTLS 1.0/1.2 supported
MQTT: version 3.1.1
The JSON format used for uploading/downloading data on the cloud platform, users can customize the JSON content format.
Provides remote firmware updating and remote restarting the gateway.
Supported protocol types: Modbus protocol, supports Modbus RTU/ASCII master/slave station; Modbus TCP protocol, supports Modbus TCP master/slave station (Modbus TCP Client/Server)
Supported function codes: 01, 02, 03, 04, 05, 06, 15, 16
Baud rate: 600 – 115200bps
Number of Modbus RTU/TCP connections:
The max input bytes ≤512Bytes, the max output bytes ≤512Bytes:
The maximum number of RTU/TCP connected stations:31(without relay) and 4 TCP connections
Number of commands: 100
Note: Modbus RTU and TCP bytes and commands are counted independently and do not affect each other;
Maximum number of attributes: 1000 attributes for Modbus RTU+Modbus TCP
Power supply: 12VDC 24VDC ( 9V-30VDC)
Operating Temp: -4°F to 140°F (-20°C to 60°C), Rel. Humidity: 5% -95%, non-condensing
Dimension (W* H* D): 1.0 in*4.0 in*3.6 in (25mm*100mm*90mm)
Installation: 35mm DIN RAIL
Protection Level: IP20
