Modbus Serial / PROFINET IO Gateway
Delivery Time: 3-4 week

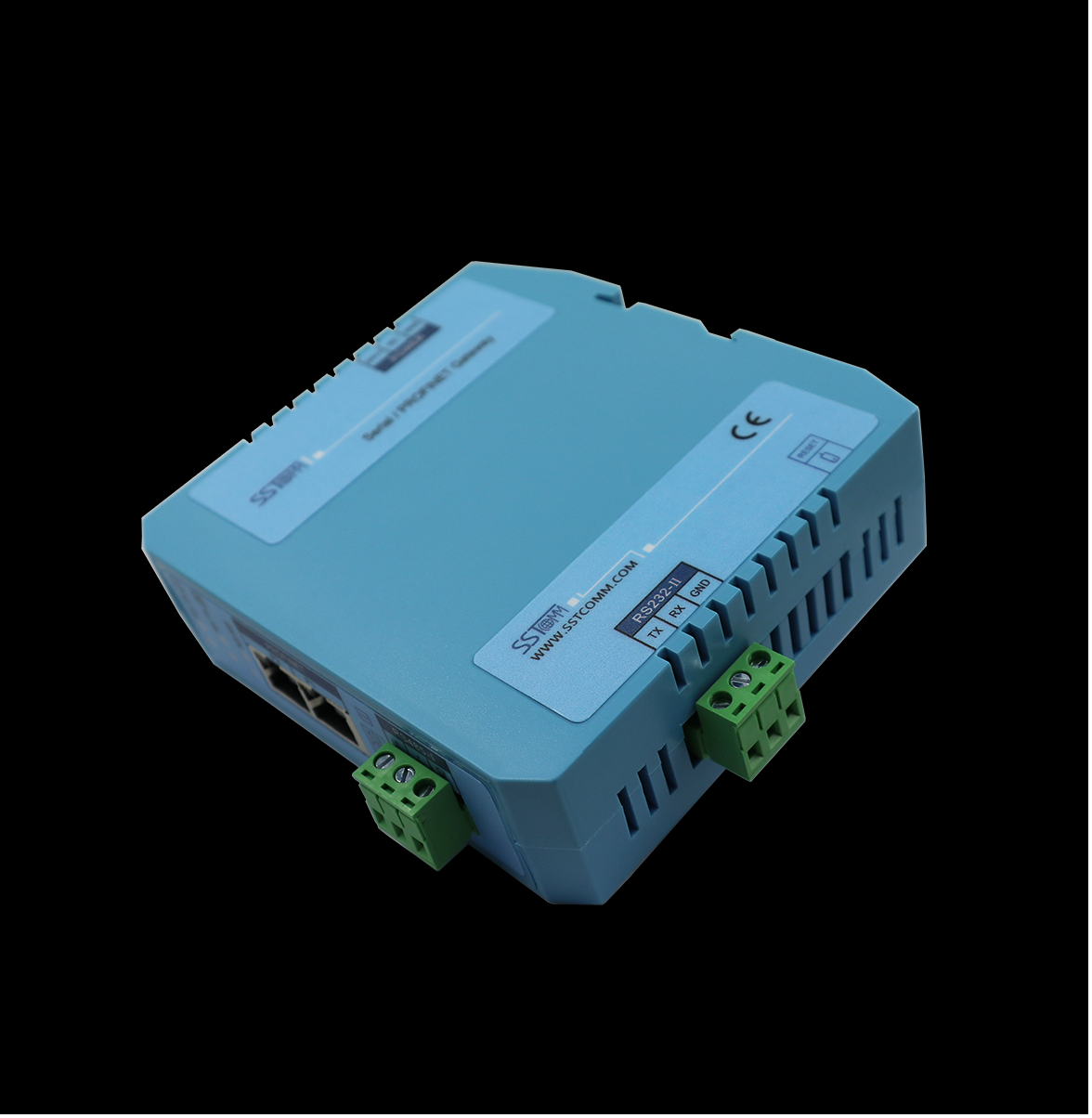

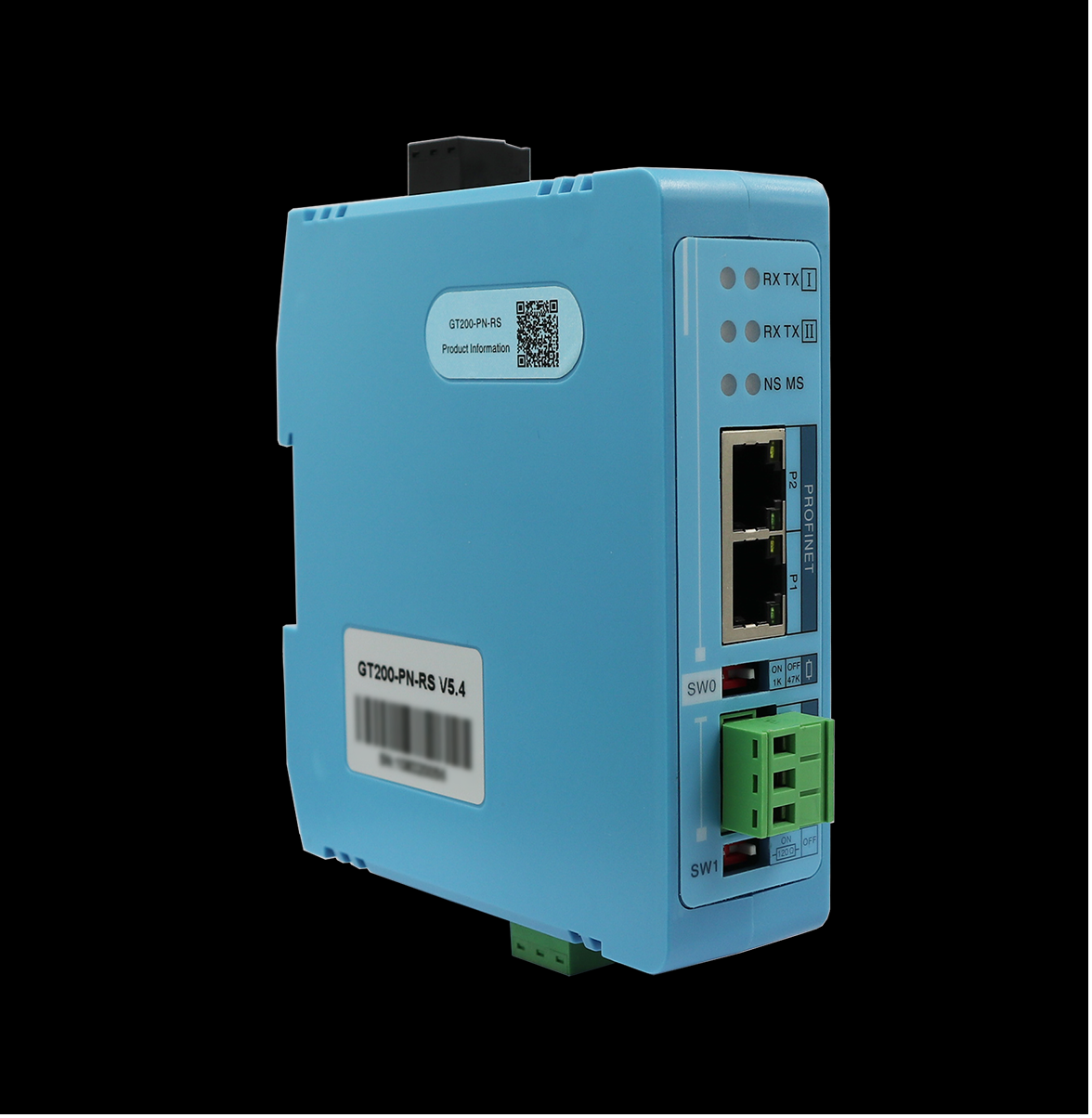

GT200-PN-RS
The GT200-PN-RS gateway provides a seamless and reliable connection between Modbus devices and PROFINET networks. Equipped with two serial ports, it supports RS-485 and RS-232 interfaces, allowing communication with up to four Modbus devices.The GT200-PN-RS requires no modifications to existing equipment, ensuring a smooth and hassle-free deployment in industrial automation systems.
₹30,658.00 ₹37,957.00
Technical Specification:
Protocol conversion between PROFINET and Modbus.
Supports standard PROFINET I/O RT protocol;
PROFINET: supports up to 32 slots, the length of input/output bytes can be set by STEP7;
Supported protocol type of serial ports: Modbus protocol and universal serial protocol;
Two 10/100M self-adaptive network ports, built-in switch function. Support daisy chain connection and cascade.
Two (2) Serial Ports – can be used as communication ports, and they can communicate at the same time.
Serial I supports RS-485; Serial II supports RS-232
Serial port parameters:
Operation mode: half duplex;
Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 bps;
Data bits: 7, 8;
Check bit: none, odd, even, mark and space optional;
Stop bits: 1 bit, 2 bits.
Modbus master:
Function code: 01H, 02H, 03H, 04H, 05H, 06H, 0FH and 10H;
Format: RTU and ASCII;
Output mode of write command: Cycle, Forbidden and Change of Value;
Each master can configure up to 48 Modbus commands;
Modbus server:
Function code: 03H, 04H, 06H and 10H;
Format: RTU and ASCII
Built-in electrostatic protection: 15 KV ESD; Communication interface isolation: 3KV;
Power supply: 24VDC (11V-30V), 250mA (24VDC).
Operating Temp: -4°F to 140°F (-20°C to 60°C); Rel. Humidity: 5%-95% (non-condensing).
Dimension (W* H* D): 1.33 in*4.56 in*4.21 in (34mm*116mm*107mm).
Mounting: DIN Rail Mounting (35mm).
Data Sheet
Test / Quality Data
Drawing
