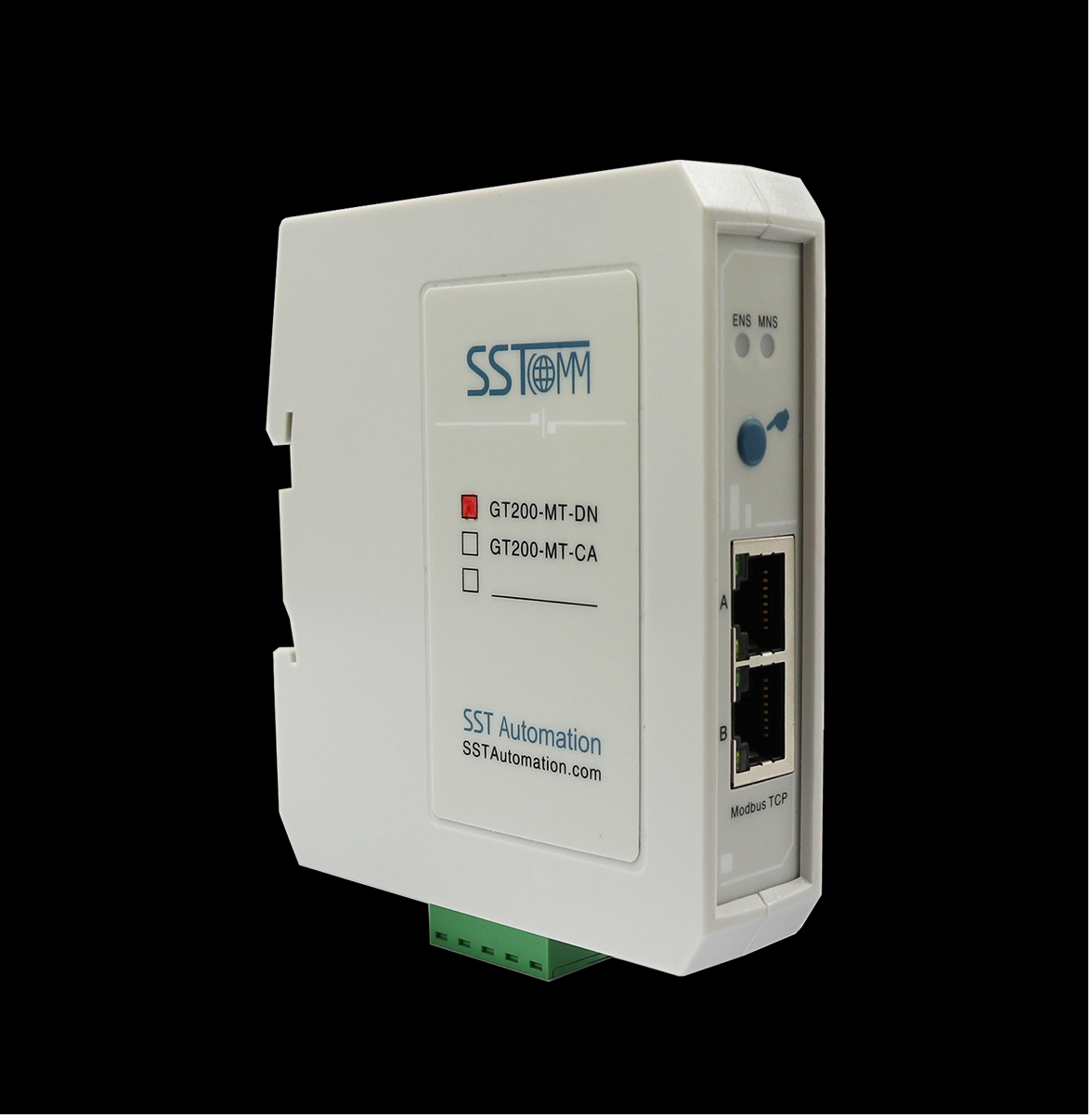

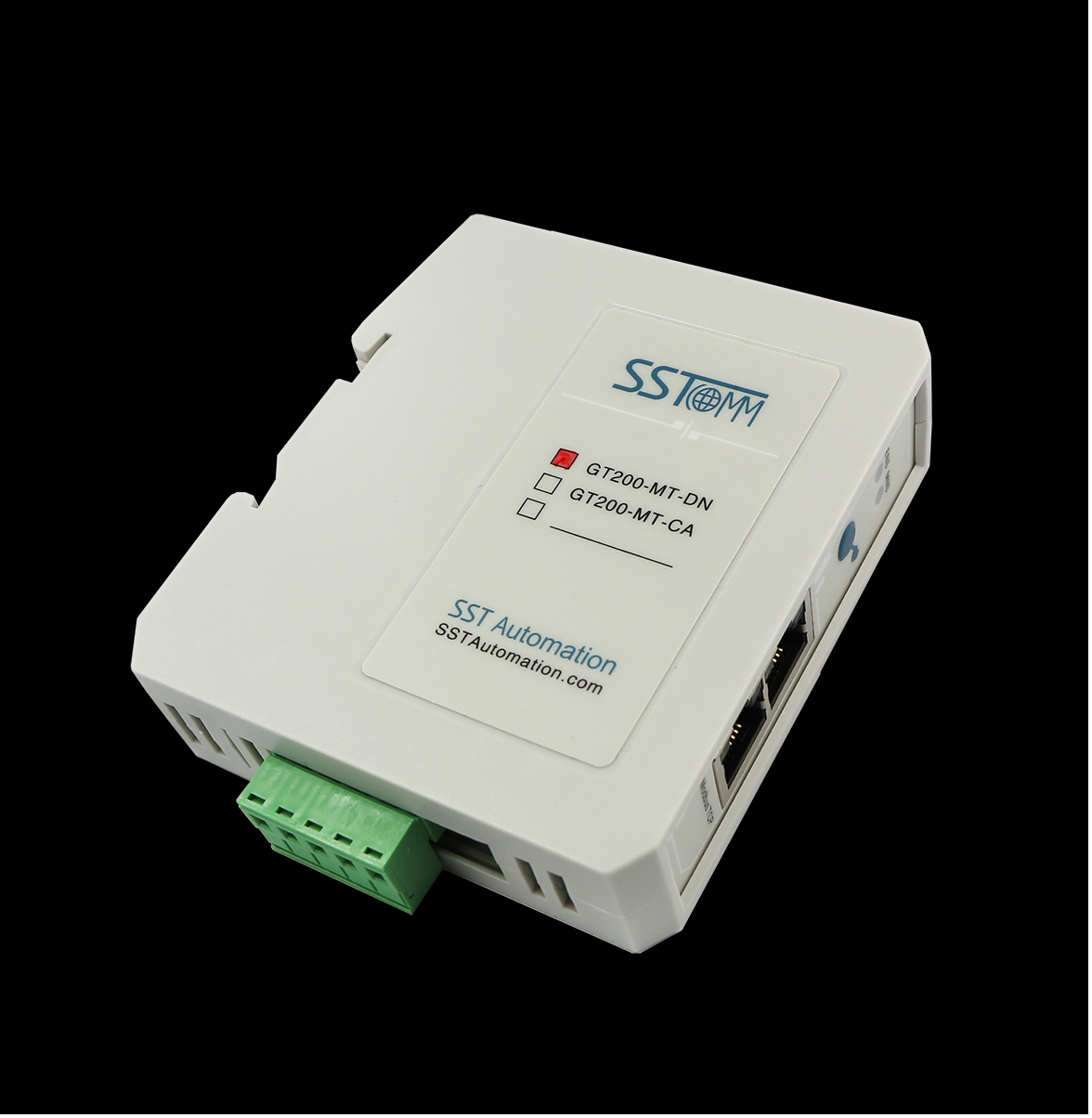

Modbus TCP / DeviceNet Gateway

Technical Specification:

• Acts as a Modbus TCP server.
  • Two 10M/100M adaptive network ports.
  • Supports up to 4 Modbus TCP clients.
  • Supported function codes: 03, 04, 06, 16.
• Acts as DeviceNet scanner or adapter at the side of DeviceNet network.
  • Supported baud rate: 125K, 250K, 500K.
  • When acting as a DeviceNet scanner:
    • Supports pre-operational and operational state.
    • It can scan DeviceNet adapter station online through SST-DNET-COM software, quickly obtain its I/O parameters and configuration parameters, support online debugging function, offline upload and download, offline configuration, and scanner/adapter mode switching.
    • Supports up to 40 DeviceNet adapters. Maximum 1428 bytes of input and 1428 bytes of output. (Max. 224 bytes input and 224 bytes output for single adapter)
    • Supports scanning DeviceNet adapters and parameters configuration.
    • Supports I/O messaging (Polling) and COS.
    • Supports byte swap function on DeviceNet scanner side.
    • Supports clear and hold function.
  • When acting as a DeviceNet adapter:
    • Maximum 224 bytes of input and 224 bytes of output.
    • Supports DeviceNet scanner I/O Polling.
    • Supports byte swap function on DeviceNet adapter side.
    • Supports clear and hold function, connection status information on DeviceNet adapter and Modbus TCP side.
    • Modbus TCP supports 03/04 function code options to choose to read the input/output data area. The register starting address can be configured on DeviceNet adapter side.
• Power: 24VDC (11V~30V), maximum 80mA (24V).
• Operating temperature: -4°F~140°F (-20°C to 60°C).
• Humidity:5 to 95% (No Condensing).
• Dimension (W*H*D): 1 in*4 in*3.5 in (25mm*100mm*90mm).
• Mounting: DIN Rail Mounting (35mm).
• Protection level: IP20.
