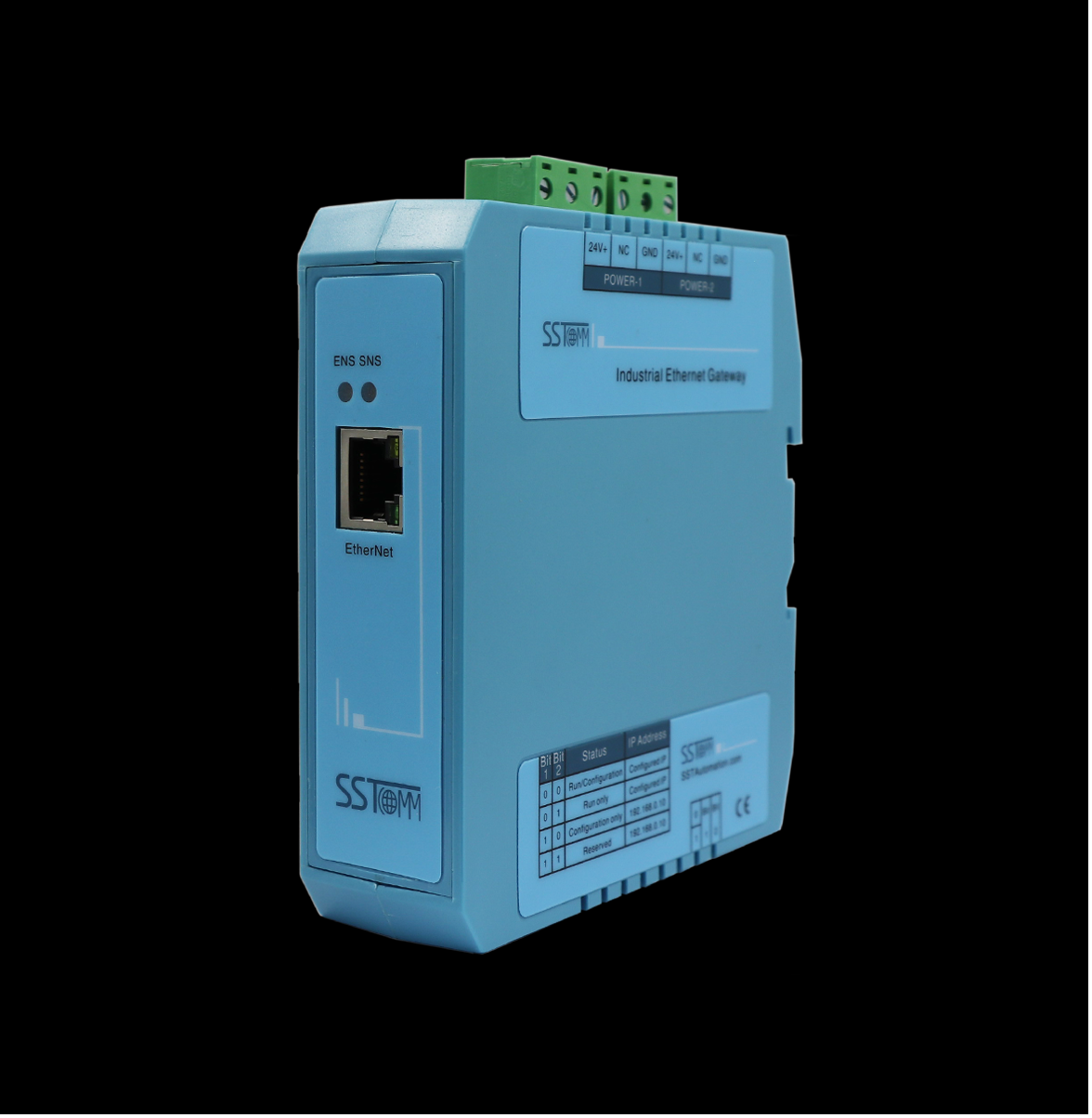

Modbus TCP / EtherNet/IP Gateway
Model: GT200-MT-EI
Make: SSTCOM
₹61,424.00
Compare
Data Sheet
Test / Quality Data
Drawing
The gateway GT200-MT-EI can connect Modbus TCP devices to the Ethernet network. It can finish the data exchange between Modbus TCP network and EtherNet/IP network.
Technical Specification:
- Acts as adapter at the side of EtherNet/IP, support ODVA standard EtherNet/IP communication protocol.
- One Ethernet interface, Modbus TCP and EtherNet/IP shares this interface together; Ethernet 10/100M self-adaptive.
- EtherNet IP Max input bytes: 492 bytes, max output bytes: 492 bytes.
- As Modbus TCP client, support visiting at most 36 different IP or Modbus TCP servers of different unit ID, support function code 01H, 02H,03H, 04H, 05H, 06H, 0FH, 10H.
- Act as server at the Modbus TCP side, support 36 TCP connections, support function code 03H, 04H, 06H, 10H.
- Provide byte swap function: No swap, double-byte swap, four-byte swap.
- Power Supply: 9V~30VDC.
- Operating Temp.: -4°F to 140°F (-20°C to 60°C), relative humidity: 5% ~ 95% (non-condensing).
- Dimension (W*H*D): 1.6 in*5 in*4.33 in (40mm*125mm*110mm).
- Mounting: DIN Rail Mounting (35mm).
- Protection class: IP20.
