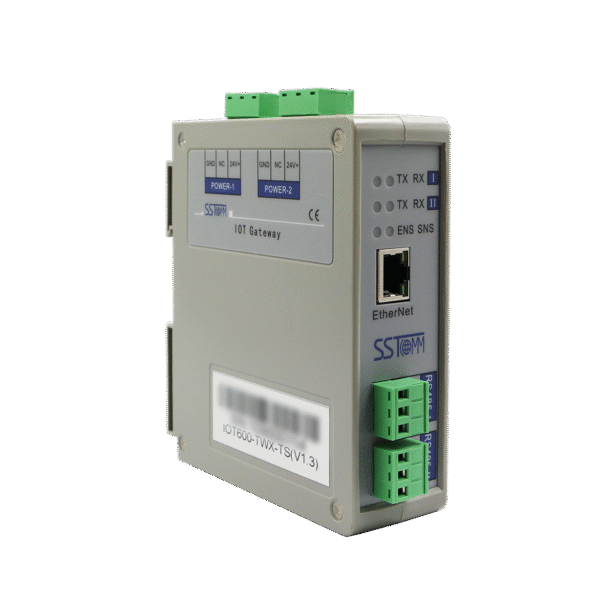

Modbus / ThingWorx Gateway

Technical Specification:

1. Two independent RS485 interfaces, baud rate: 9600~115200bps, 1KV galvanic isolated.

2. Modbus RTU command has auto demotion and error handling function.

3. Mapping Modbus data to properties of one thing easily.

4. Supports TLS/SSL.

5. Power supply: 24VDC (9V-30V), 90mA (24VDC), Redundant power supply.

6. Operating Temp.: -4°F to 140°F (-20°C to 60°C), Rel. Humidity: 5%-95%, non-condensing.

7. Dimension (W*H*D):1.6 in*5 in*4.33 in (40mm*125mm*110mm);

8. Installation: DIN Rail Mounting (35mm).
