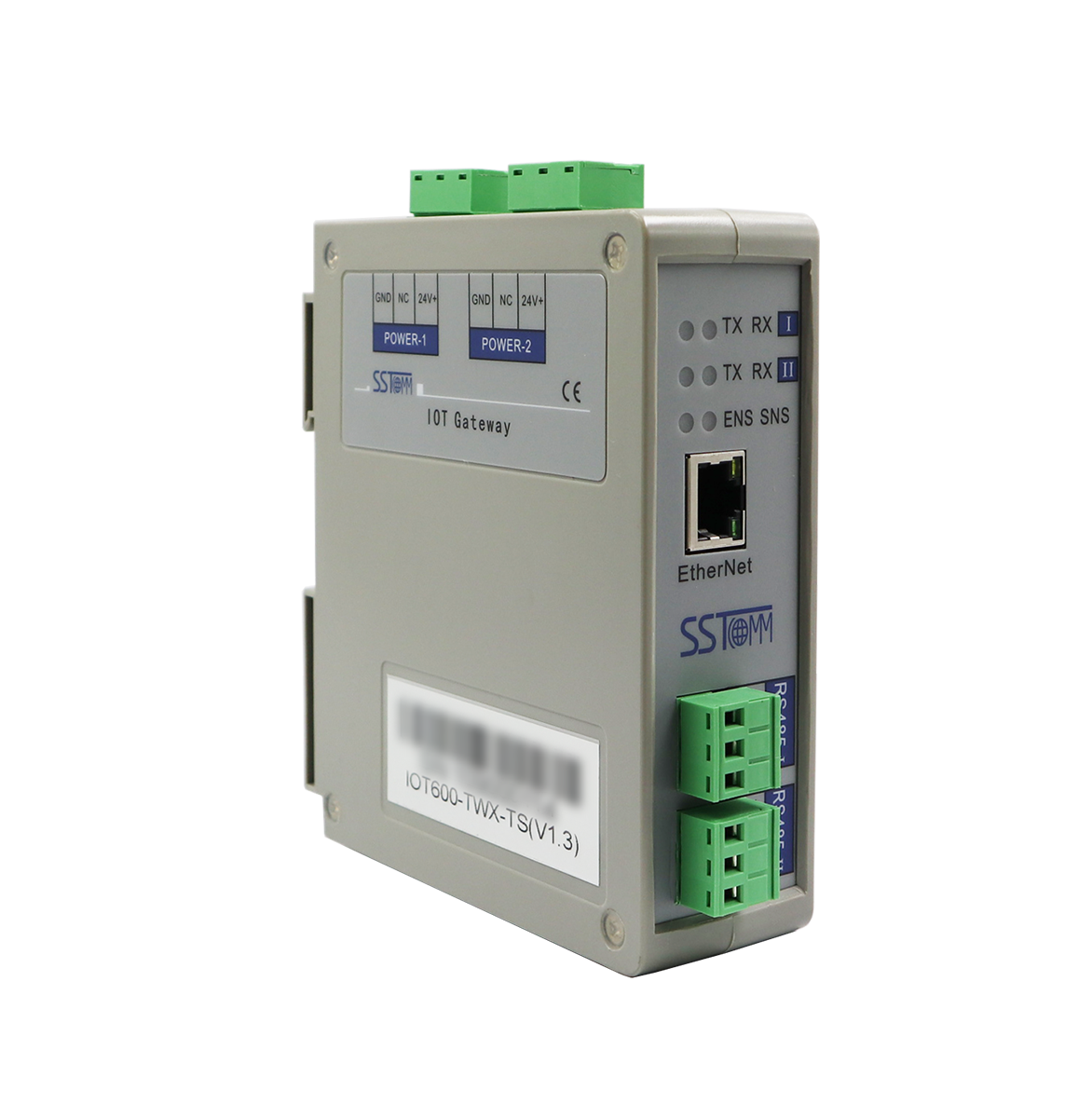

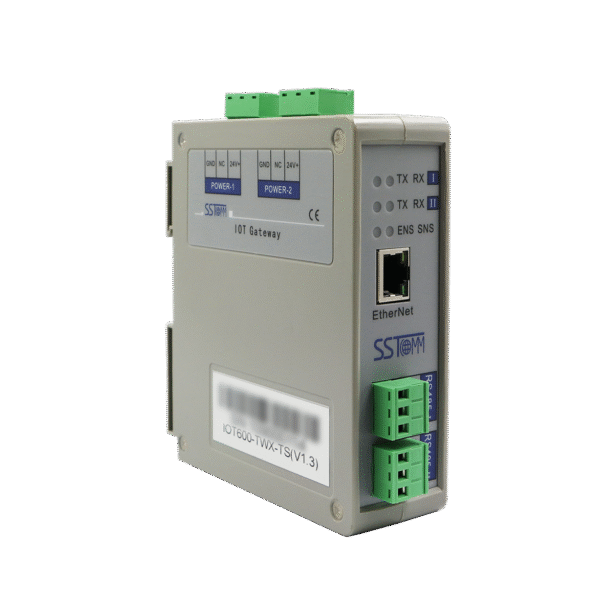

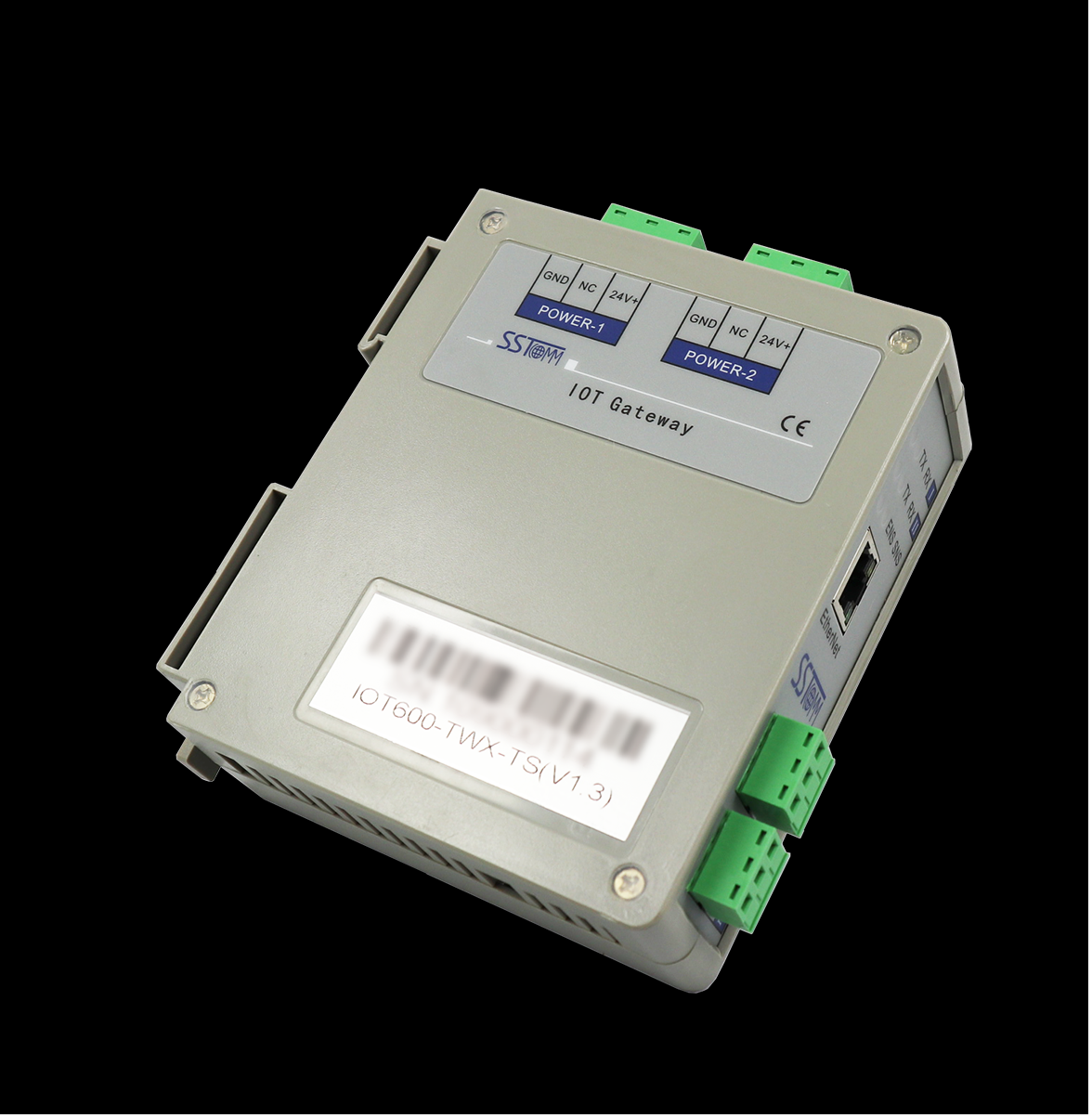

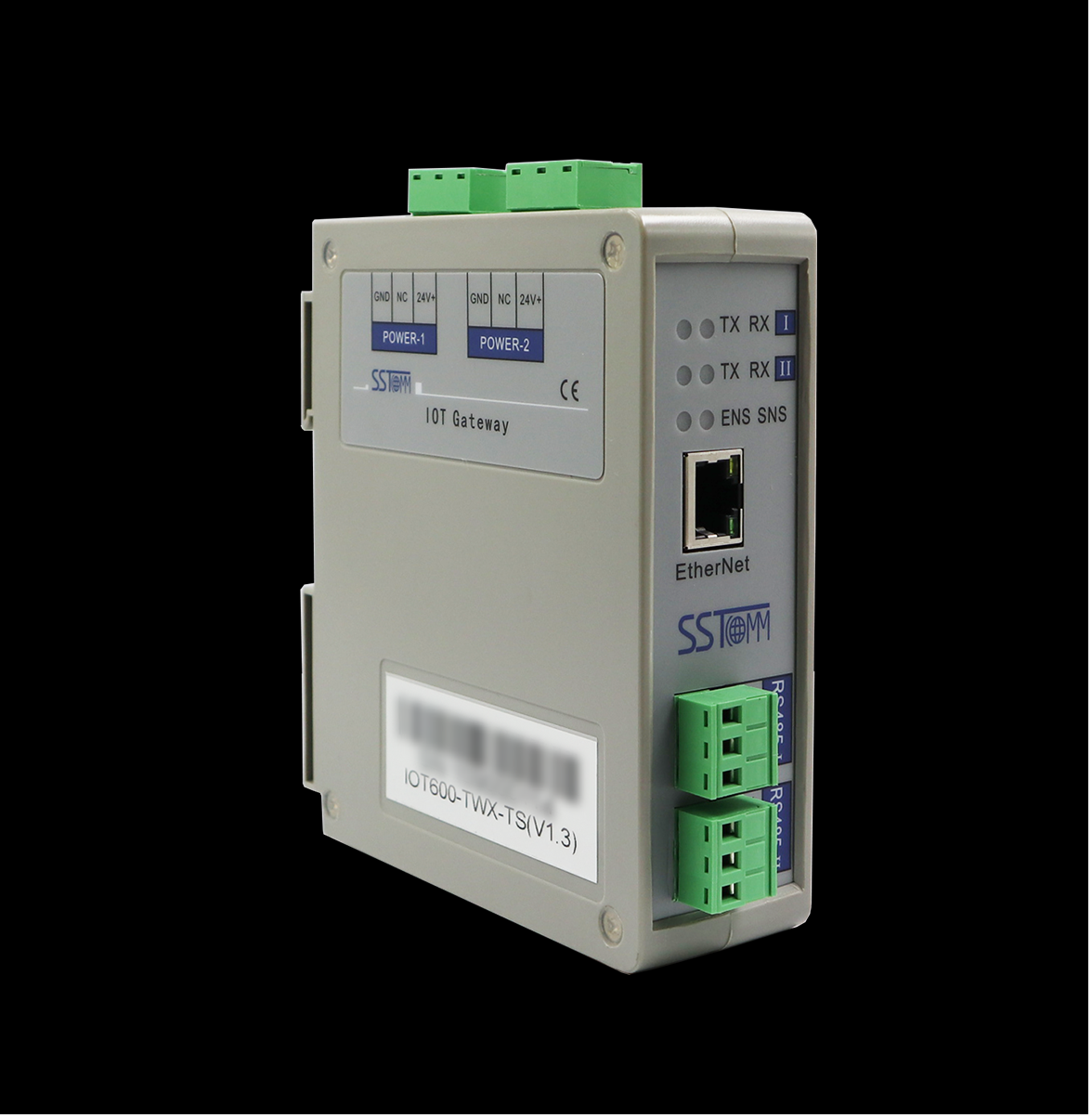

Modbus / ThingWorx Gateway
Model: IOT600-TWX-TS
Make: SSTCOM
₹77,264.00
Compare
Data Sheet
Test / Quality Data
Drawing
It is designed to let ThingWorx users connect Modbus RTU and Modbus TCP devices with simple configuration. The gateway could be an edge gateway that securely connects industrial Modbus devices over Ethernet networks to ThingWorx.
Technical Specification:
1. Two independent RS485 interfaces, baud rate: 9600~115200bps, 1KV galvanic isolated.
2. Modbus RTU command has auto demotion and error handling function.
3. Mapping Modbus data to properties of one thing easily.
4. Supports TLS/SSL.
5. Power supply: 24VDC (9V-30V), 90mA (24VDC), Redundant power supply.
6. Operating Temp.: -4°F to 140°F (-20°C to 60°C), Rel. Humidity: 5%-95%, non-condensing.
7. Dimension (W*H*D):1.6 in*5 in*4.33 in (40mm*125mm*110mm);
8. Installation: DIN Rail Mounting (35mm).
