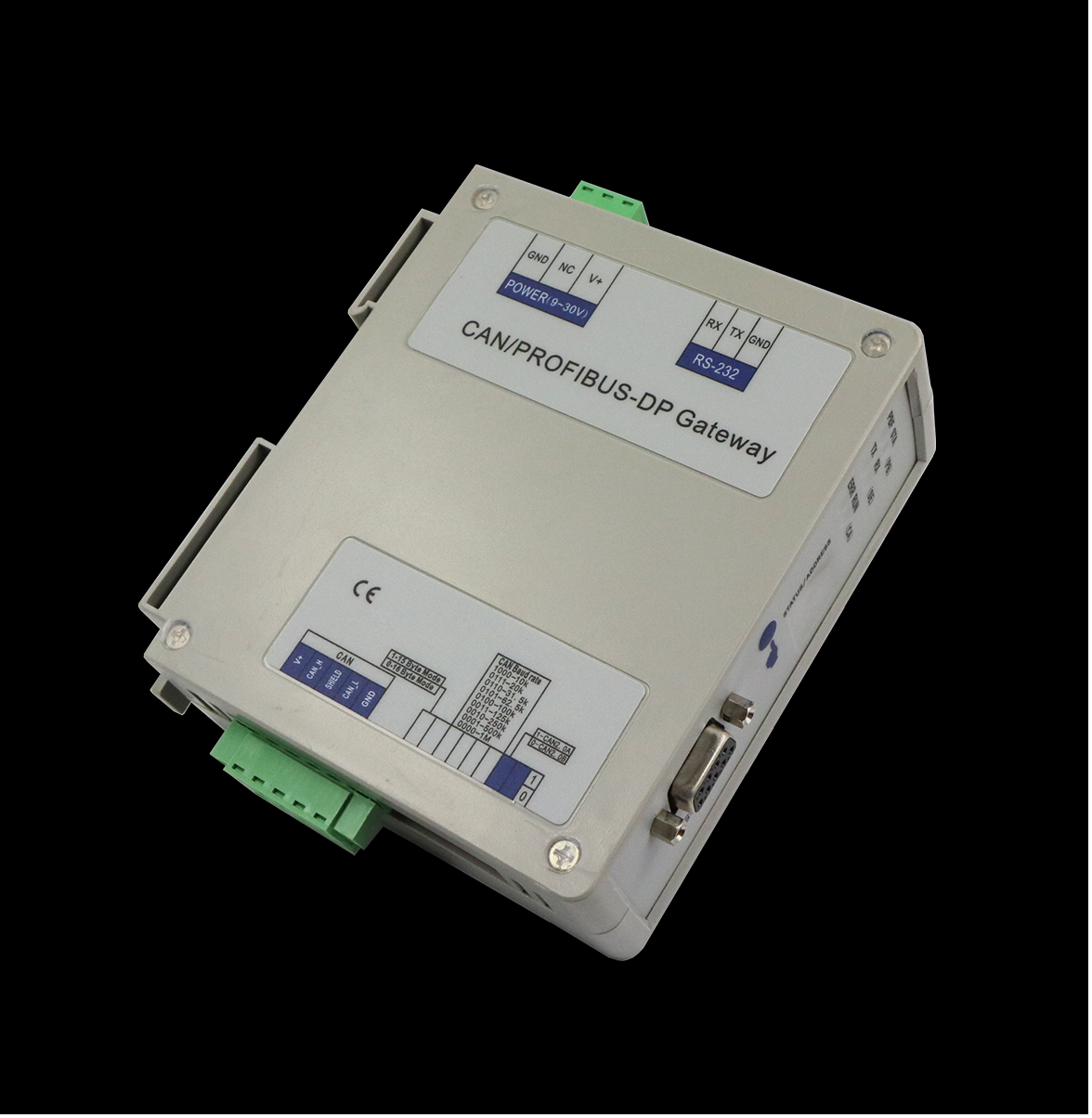

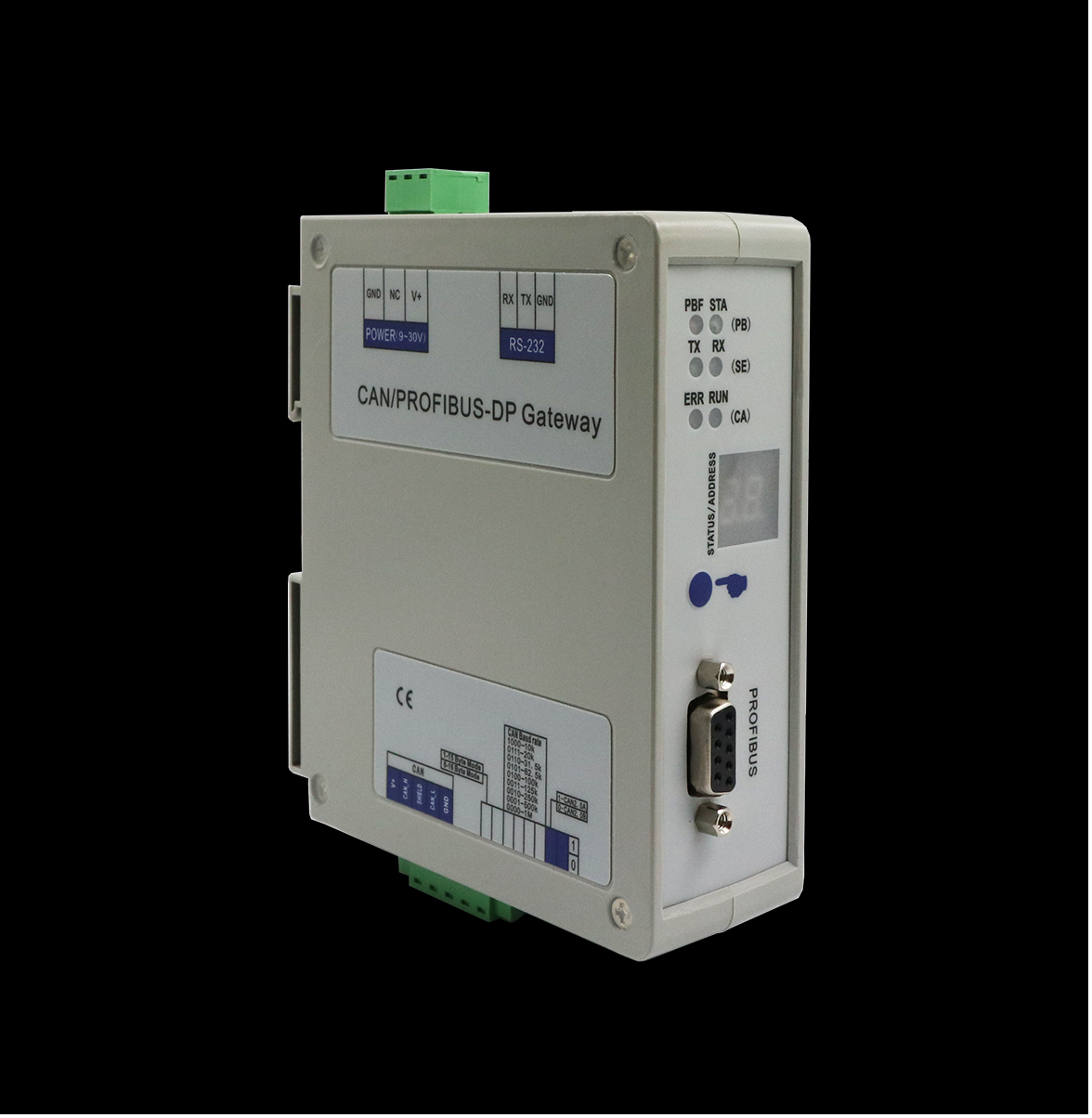

PROFIBUS DP / CAN Gateway

Technical Specification:

1.   Supports CAN2.0A / 2.0B.

2.   CAN baud rate up to 1Mbps.

3.   Automatic baud rate detection on PROFIBUS DP(9600bit/s~12Mbit/s).

4.   2.5KV galvanic isolated on PROFIBUS DP and CAN interfaces.

5.   Power Supply:11V-30VDC, Maximum Power Dissipation:2W.

6.   Operating Temp.:-40°F to 158°F (-40ºC to 70ºC),Rel.Humidity:5%-95% RH non-condensing.

7.   Dimension(W*H*D):1.6 in*5 in*4.33 in (40mm*125mm*110mm).

8.   Mounting: DIN Rail Mounting(35mm).
