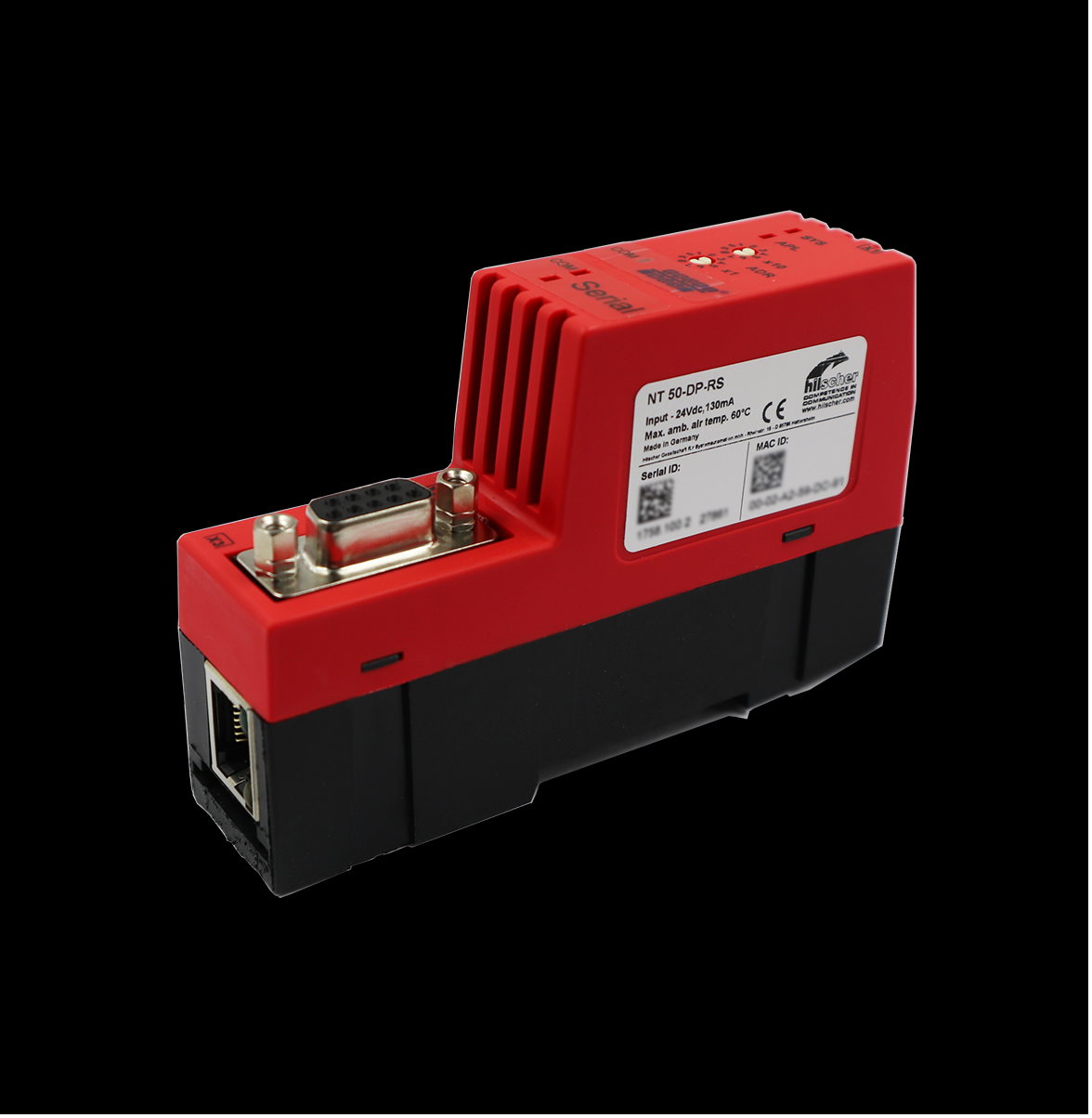

PROFIBUS DP (master) / Modbus Gateway NT50-DP-RS

Technical Specification:

• Supports one PROFIBUS DP Master interface to connect with one PROFIBUS DP device.
• Supports connecting to one Modbus RTU Master.
• Maximum input/output data: 244 bytes.
• Supports debug function based on Ethrnet interface.
• Power supply: 24VDC (18-30V), 130mA.
• Operating Temp: 32°F to 140°F (0°C to 60°C).
• Dimension (W* H* D): 0.39in*1.02in*2.6in (10mm*26mm*66mm).
• Conformance with EMC directives:
  • CE Sign.
  • Emission: CISPR 11 Class A.
  • Immunity: EN 61131-2:2003.
