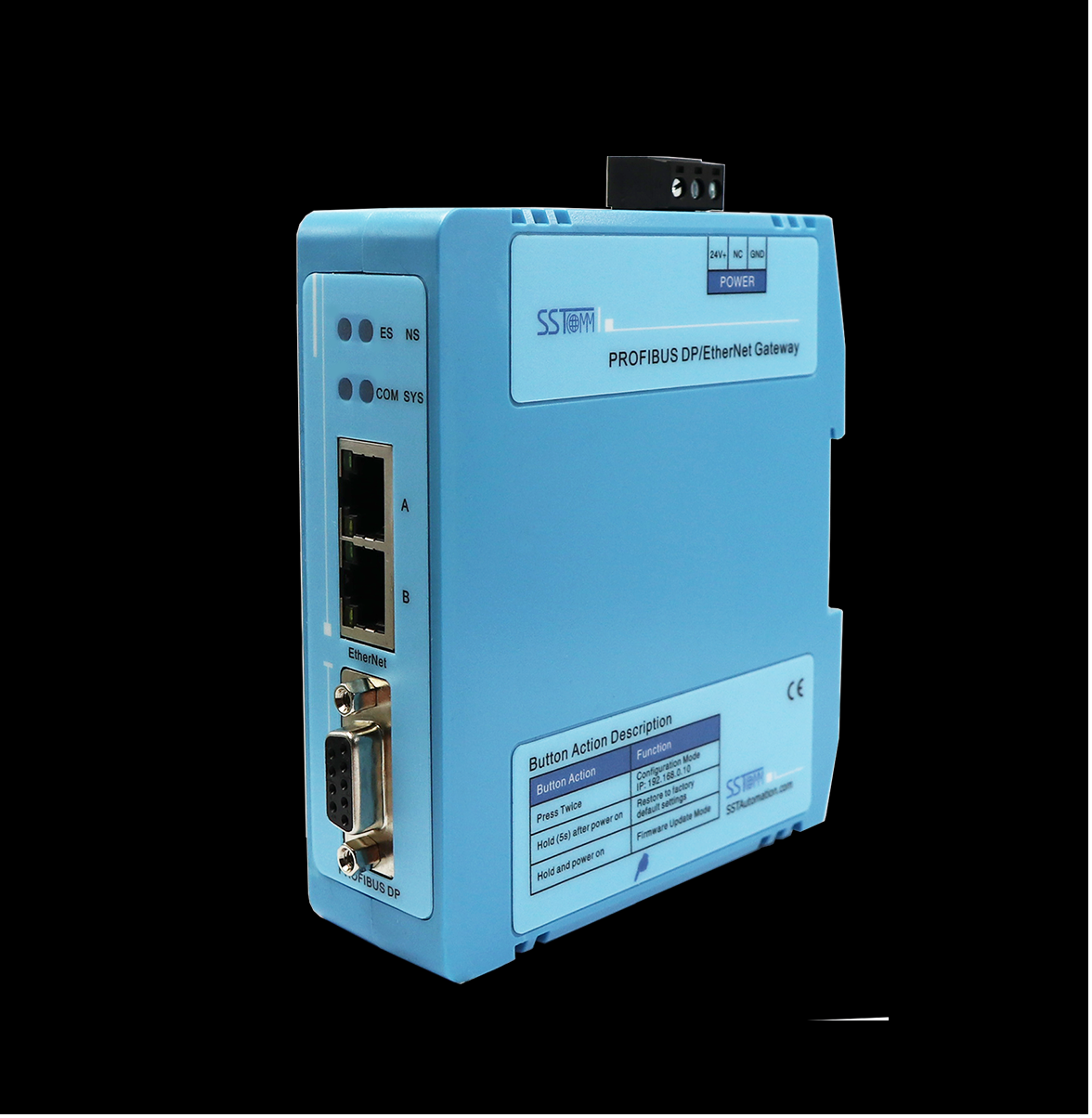

PROFIBUS DP (Master) to EtherNet/IP / Modbus TCP Gateway

Network Interfaces

• Two self-adaptive network ports, built-in switch function. Support daisy chain connection and cascade.

PROFIBUS DP Features

• Supports PROFIBUS DP V0 Master.
• Connects Up to 40 PROFIBUS DP Devices.
• DP Device Data Clear/Hold on Network Loss.

EtherNet/IP Features

• Supports ODVA-compliant EtherNet/IP communication protocol.
• Acts as an EtherNet/IP adapter device.
• Supports Non-DLR (Device Level Ring) operation.
• Supports Both I/O(Class1) and MSG(Class3) Communication Modes.
• Status Word Function.
• Custom Vendor Code Support.
• Data Clear/Hold on DP Device Disconnection.

Modbus TCP Features

• Acts as a Modbus TCP Server.
• Handles up to 8 TCP client connections.
• Supported function codes:0x03, 0x04, 0x06, 0x10.
• Supports byte swapping options:No swap, 2-byte swap, 4-byte swap.
• Supports custom server port number; default port is 502.
• Status Word Function.
• Data Clear/Hold on DP Device Disconnection.

General

• Power supply: 24VDC (range: 9–30VDC), 160mA @ 24VDC.
• Power interface isolation: 1.5kV.
• Operating temperature: -20°C to 60°C (-4°F to 140°F).
• Relative humidity: 5%–95%, non-condensing.

Physical Features

• Dimensions (W × H × D): 1.33 in × 4.56 in × 4.10 in (34 mm × 116 mm × 105 mm).
• Mounting: 35 mm DIN rail.
• Protection rating: IP20.
