Electrical, Power Supply

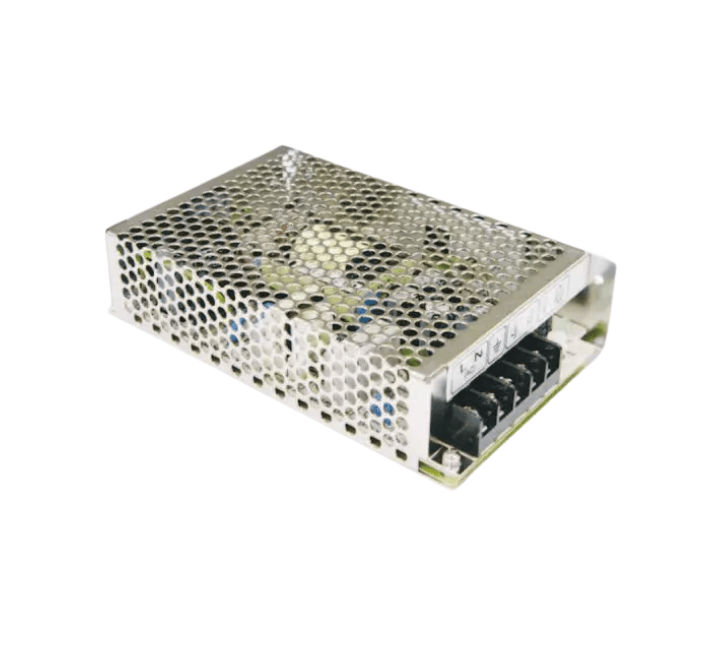

S-60W Single Output Switching Power Supply 24V, 2.5A
Availability:
17 in stock
- Model No S-60-24
- Description S-60W Single Output Switching Power Supply 24V, 2.5A
- Make Xexagon
- Certification CE
₹741.00
17 in stock
Compare
- Stock: 3.0 Can Dispatch Immediately
- Factory Lead Time: 15 Days
Technical Specifications
| Dc output voltage | 24V |
| Output voltage tolerance | ±1% |
| Rated output current | 2.5A |
| Output current range | 0-2.5A |
| Output power | 60W |
| Ripple and the noise | 150mVp-p |
| Dc voltage adjustable scope | ±10% |
| Start, rise, keep time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
| Input voltage range | 90 ～132 VAC / 180-264VAC by switch 47～63 Hz；120～370VDC |
| Exchange input current | 2A/115 V 1A/ 230 V |
| efficiency | 79% |
| Impulse current | Cold start current 30A/115VAC 60A/230VAC |
| Leakage current | ＜3.5 mA/240VAC |
| Overload protection | 115%～165%, Protection way: current limiting, automatic recovery |
| Over-voltage protection | 115%～135%, Protection way: hiccups, auto recovery mode |
| Working temperature, humidity | -10℃～+60℃；20%～90 %RH |
| Keep temperature, humidity | -20℃～+85℃；10%～95 %RH |
| Vibrate resistance | 10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis |
