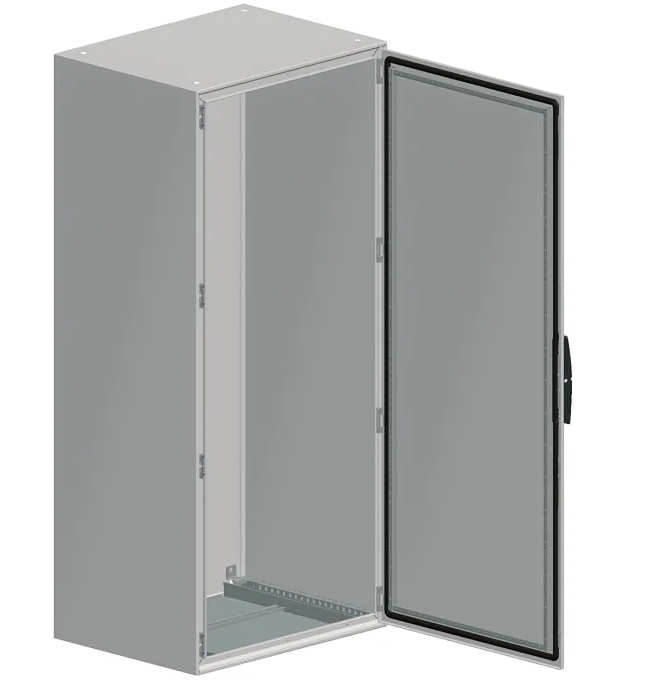

Single-Door Enclosure
Concept Enclosures have streamlined styling, flush quarter-turn latches and an attractive, durable finish
₹25,000.00
Compare
Seams continuously welded and ground smooth
Corner-formed doors
Simple easy-to-remove and install hinge pins with built-in captivation clip
High-torque threadless studs and fasteners on door
Minimum-width body flange provides maximum door opening (210 degrees)
Door opens 210 degrees
External formed body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for optional external wall-mount brackets
Removable door with hidden hinges for clean, aestheti…
Height: 12in
Width: 10in
Depth: 6in
Material: Mild Steel
Finish: Powder Coated
Color: Gray
Color Code: ANSI 61
Body Thickness: 16ga
Door Thickness: 16ga
Mounting: 10.50 x 8.50in
Latch Quantity: 1
Latch Type: Quarter-Turn
Weight: 12lb
