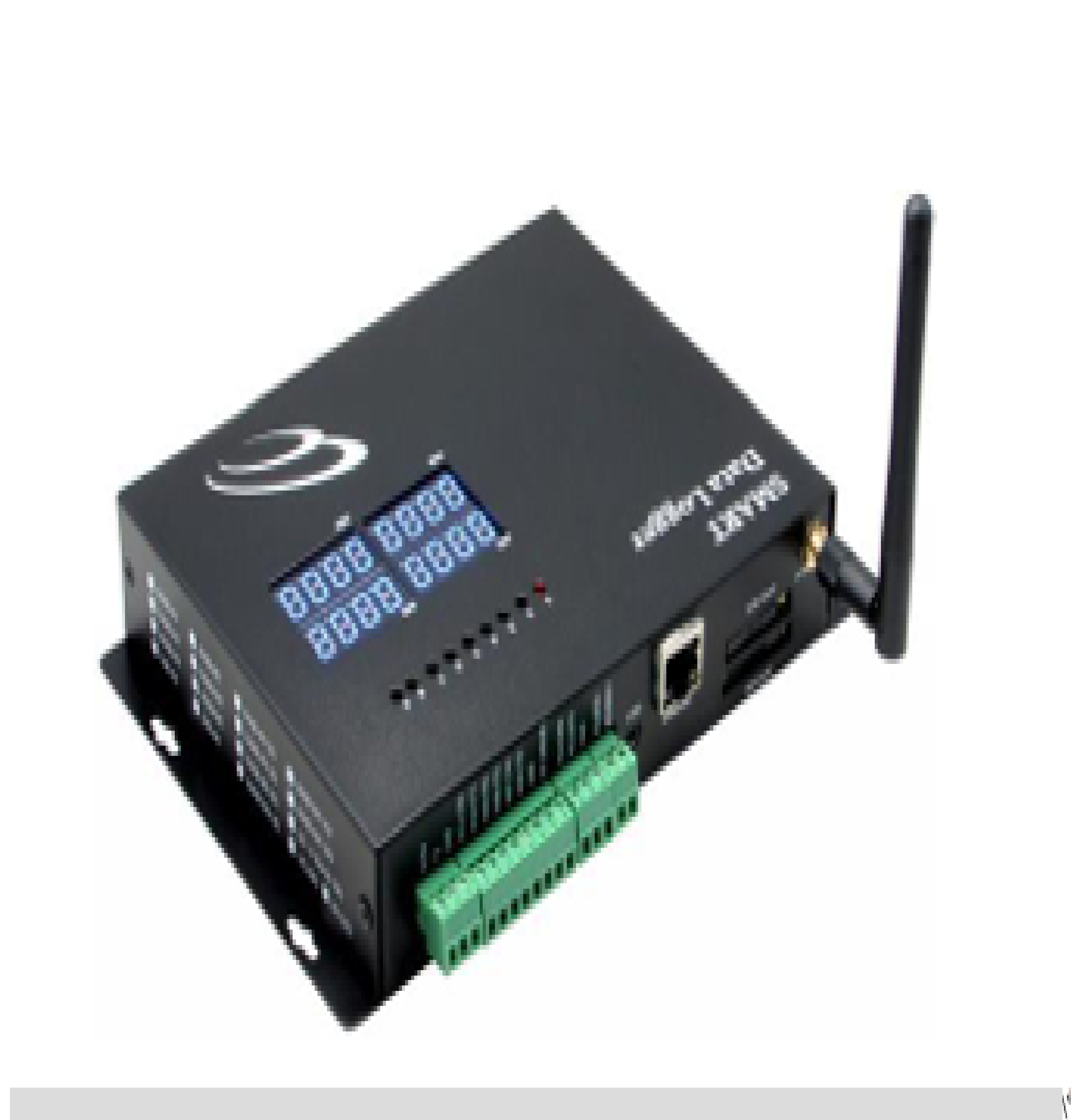

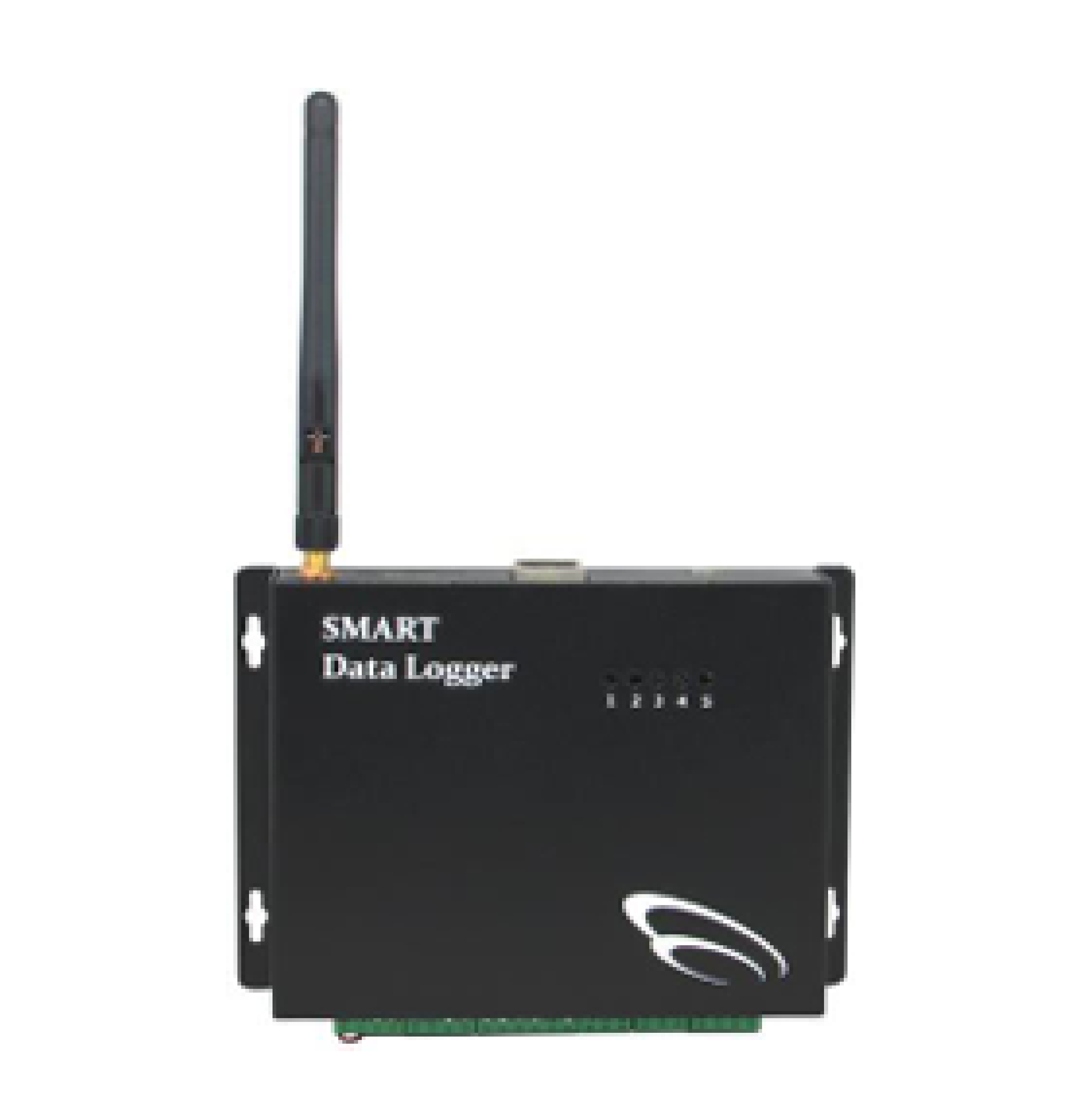

Smart Datalogger
DELIVERY TIME :- 3 – 4 WEEK
XNX4-HV/MS
–> GPRS Wireless & Ethernet Network Simultaneous Data Transmission
–> 4MB Internal Data Logging Memory
–> SD Memory Card Expansion Slot (max. 32GB)
–> Data & Alarm via GPRS, SMS & Ethernet
–> Mobile Phone SMS Alarm
–> Programmable Data Upload Interval as fast as 5s
–> Programmable Data Logging Interval
–> Multi-I/O Channels: temperature, humidity, analog, digital, pulse channels or RS232/485 Modbus
–> Digital Alarm Input & Relay Output
–> Up to 11 temperature sensors
–> Modbus Support via RS232/485
Compare
| Communication Module Selection | |||||
| Model Selection | XNX8-HV | XNX8-MS | XNX4-HV | XNX4-MS | |
| High Performance | Economic | ||||
| Metal Enclosure | 17 x 13 x 3 cm | 13 x 11 x 3 cm | |||
| Power Input: 9 ~ 15VDC | ü | ü | ü | ü | |
| Rechargeable Backup Battery | ü | ü | ü | ü | |
| Power Loss Alert | ü | ü | ü | ü | |
| Built-in 5VDC output | ü | ü | ü | ü | |
| AD Channel (AD) | 11 | 11 | 4 | 4 | |
| * Analog Sensor | 8 | 8 | 2 | 2 | |
| * Temperature Sensor | 8 | 2 | 4 | 1 | |
| Digital Channel (DI) | 4 | 10 | 3 | 3 | |
| * Pulse Sensor | 4 | 4 | 3 | 3 | |
| * Alarm Sensor | 4 | 10 | 3 | 3 | |
| Relay Output (DO) | 4 | 4 | 2 | 2 | |
| Internal Memory | 4MB | 4MB | 4MB | 4MB | |
| SD Memory Card Slot | ü | ü | — | — | |
| Modbus Device Support | — | 16 data registers | — | 8 data registers | |
| Digital Temperature Sensor (max.) | 8 | 2 | 4 | 1 | |
| Humidity Sensor | 1 | 1 | 1 | 1 | |
| Data Logging Interval | Programmable (1 ~ 60 minutes) | ||||
| Data Upload Interval | Programmable (5s ~ 24 hours) | ||||
| Data Upload | On Schedule / Manual Request / Alarm Triggered | ||||
| Internal Data Record | Average 30000 records (4MB) | ||||
| Alarm Trigger | Analog Level: Ultra-High/High/Low/Ultra-Low, Digital On/Off Alarm, Power Loss/Resume | ||||
| Server Network Connection | Dynamic Domain Name & Fixed IP | ||||
| Data Transmission | [XNX4/8: GPRS, SMS] * [XNN4/8: GPRS, SMS, Ethernet] * [NSX4/8: Ethernet] | ||||
| Protocol | [Ethernet – UDP & TCP], [GPRS – UDP & TCP] | ||||
| Central Server | Independent Server IP for GPRS & Ethernet Data | ||||
| Modbus Device Port | RS485 & RS232 | ||||
| Alarm Data | GPRS / Ethernet / SMS | ||||
| SMS Alarm Text | User programmable SMS alarm text to max. 8 mobile phones | ||||
| Local Setup | via Ethernet or USB Port by PC Software | ||||
| PC Communication Port | RJ45 10/100M Ethernet or USB Port | ||||
| Remote Command | GPRS, SMS or Ethernet | ||||
| XNM Module | 2G Quad Band [XNM 850/900/1800/1900MHz] MC55i | ||||
| 3G Module | 3G Five Band Worldwide [UMTS 800/850/900/1900/2100MHz] – Optional | ||||
| 4G Module | LTE US, Europe, Australia – Optional | ||||
| Bundled Software Free | Standard Edition | ||||
| Setup Software | Ethernet Network, or USB Port | ||||
| Client Software [Direct Mode] | Smart Client Lite [for Windows, iOS, Android] | ||||
| Centre Software | Data Receiving & Saving in txt file, max. 99 data loggers | ||||
| TCP Modbus Tool | Support TCP Server mode in Modbus protocol | ||||
| OPC Server Driver | Third Party OPC Server integration | ||||
| Optional Software | Ultimate Server Client Software Package | ||||
