Enclosure & Accessories, Thermostat

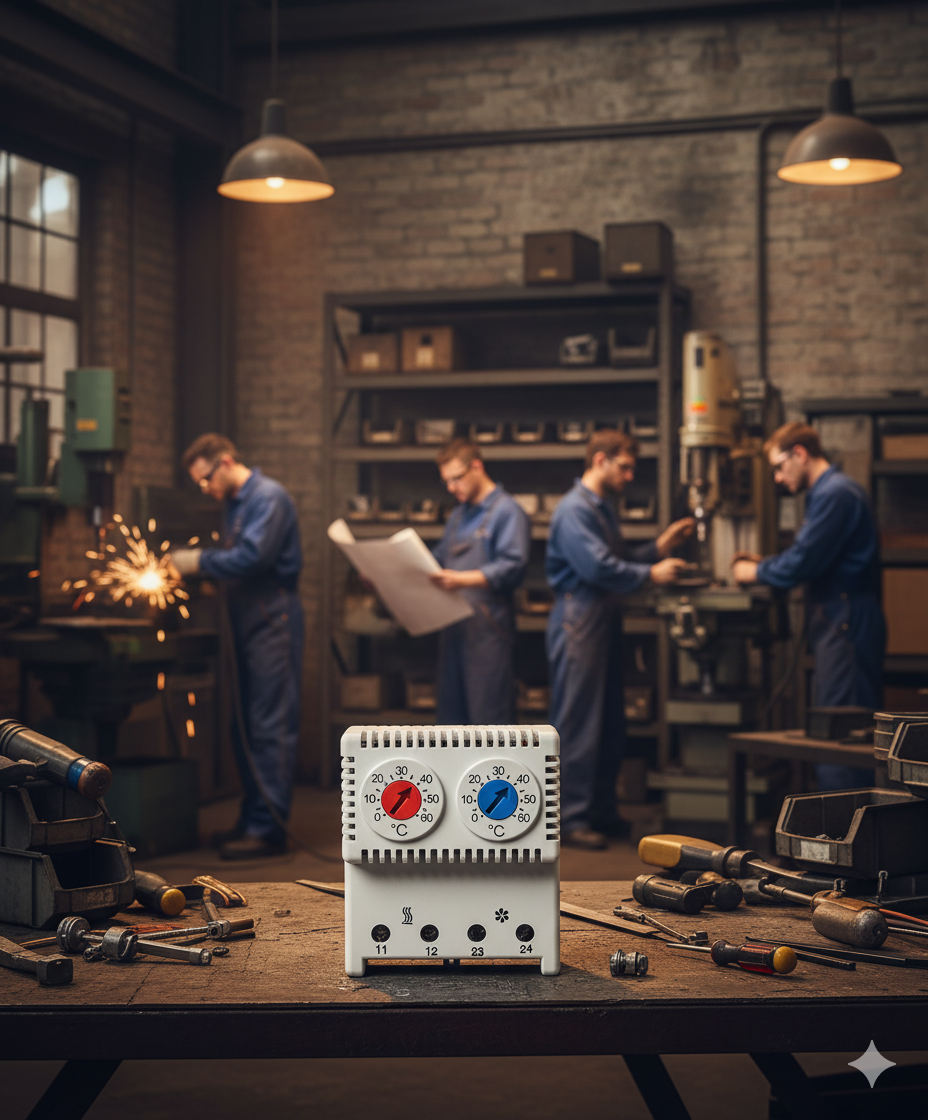

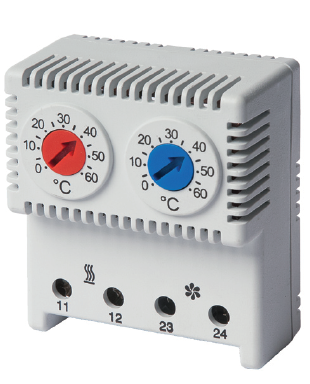

THERMOSTAT THVV22
Delivery Time: 3-4 Week THERMOSTAT THVV22 Double thermostat NO 0/60°C NO 0/60°C, 53x68x38 mm, CE, UL
₹2,235.00 ₹2,845.00
| FEATURES | Unit | THRV13 | THRV22 | THVV22 | ||||||||
| Contact function | – | NC | NO | NC | NO | NO | NO | |||||
| Temperature setting range | °C | -10 / +50 | +20 / +80 | 0 / +60 | 0 / +60 | 0 / +60 | 0 / +60 | |||||
| Precision | °C | ±4 | ±4 | ±4 | ±4 | ±4 | ±4 | |||||
| Hysteresis | °C | 7 | 7 | 7 | 7 | 7 | 7 | |||||
| Max switching current | ||||||||||||
| 250Vac resistive load (inductive load) | A | 10 (1.6) | 10 (1.6) | 10 (1.6) | 10 (1.6) | 10 (1.6) | 10 (1.6) | |||||
| 125Vac resistive load (inductive load) | A | 15 (2.5) | 15 (2.5) | 15 (2.5) | 15 (2.5) | 15 (2.5) | 15 (2.5) | |||||
| Max. switching power in Vdc | W | 30 | 30 | 30 | 30 | 30 | 30 | |||||
| Temperature sensor type | – | Thermostatic bimetal | Thermostatic bimetal | Thermostatic bimetal | Thermostatic bimetal | Thermostatic bimetal | Thermostatic bimetal | |||||
| Contact type | – | Snap action | Snap action | Snap action | Snap action | Snap action | Snap action | |||||
| Contact resistance | mOhm | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 | |||||
| Service life | cycles | > 100 000 | > 100 000 | > 100 000 | > 100 000 | > 100 000 | > 100 000 | |||||
| Electrical connections | – | 2-pole terminal for 2.5 mm² wire | 2-pole terminal for 2.5 mm² wire | 2-pole terminal for 2.5 mm² wire | 2-pole terminal for 2.5 mm² wire | 2-pole terminal for 2.5 mm² wire | 2-pole terminal for 2.5 mm² wire | |||||
| Casing | – | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 | PA6, UL94 V0 self-estinguishing, light grey RAL 7035 | |||||
| Protection degree EN60529 | – | IP20 | IP21 | IP22 | IP23 | IP24 | IP25 | |||||
| Operating temperature | °C (°F) | -25 / +80 (-13 / +176) | -25 / +80 (-13 / +176) | -25 / +80 (-13 / +176) | -25 / +80 (-13 / +176) | -25 / +80 (-13 / +176) | -25 / +80 (-13 / +176) | |||||
| Storage temperature | °C (°F) | -45 / +80 (-49 / +176) | -45 / +80 (-49 / +176) | -45 / +80 (-49 / +176) | -45 / +80 (-49 / +176) | -45 / +80 (-49 / +176) | -45 / +80 (-49 / +176) | |||||
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | Clip for mounting on DIN rail 35 mm EN50022 | Clip for mounting on DIN rail 35 mm EN50022 | Clip for mounting on DIN rail 35 mm EN50022 | Clip for mounting on DIN rail 35 mm EN50022 | Clip for mounting on DIN rail 35 mm EN50022 | |||||
| Installation position | – | Variable | Variable | Variable | Variable | Variable | Variable | |||||
| Conformity/Certifications | – | CE-UL File n. E348803 | CE-UL File n. E348803 |
|
CE-UL File n. E348803 | CE-UL File n. E348803 | CE-UL File n. E348803 | |||||
| Dimensions HxWxD | mm | 61x53x35 | 61x53x35 | 61x53x35 | 61x53x35 | 61x53x35 | 61x53x35 | |||||
| Weight (with packaging) | kg | 0.080 (0.09) | 0.080 (0.09) | 0.080 (0.09) | 0.080 (0.09) | 0.080 (0.09) | 0.080 (0.09) | |||||
Data Sheet
Test / Quality Data
Drawing
THERMOSTAT THVV22 Double thermostat NO 0/60°C NO 0/60°C, 53x68x38 mm, CE, UL
