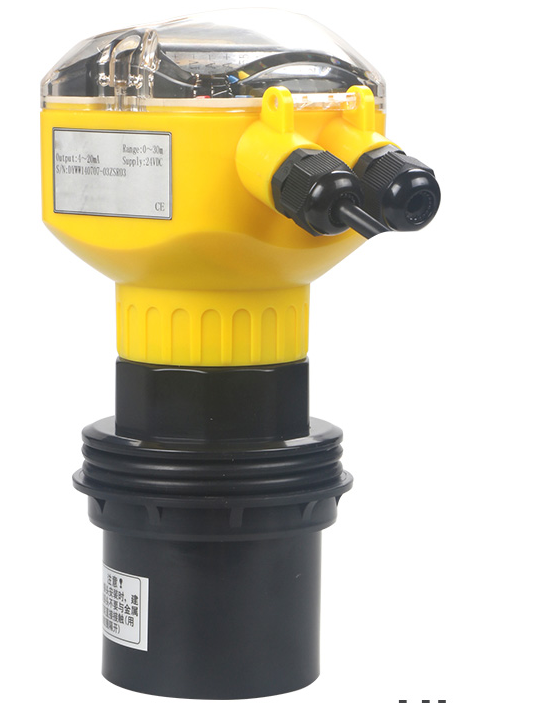

Ultrasonic Level Sensor (UL20)
Ultrasonic Level Sensor (UL20)
Range : 0 ~ 5….50M
Output : 1~5V/0~5V/0-10V ; 4-20mA RS485
Power Supply : AC250V/8A ; DC30V/5A
Blind Zone : 25~100cm
Application : Liquid , Solid
₹52,078.00 ₹57,286.00
Item: Ultrasonic level sensor
Model No.: UL20
P/N: UL203X01511
Measuring Medium: water
Level Range: 0~5meters
Signal Output: 4-20ma
Power Supply: 24VDC
Accuracy: 0.5%
Process Connect: G2A
Materials of housing: Plastic
Water proof: IP65
