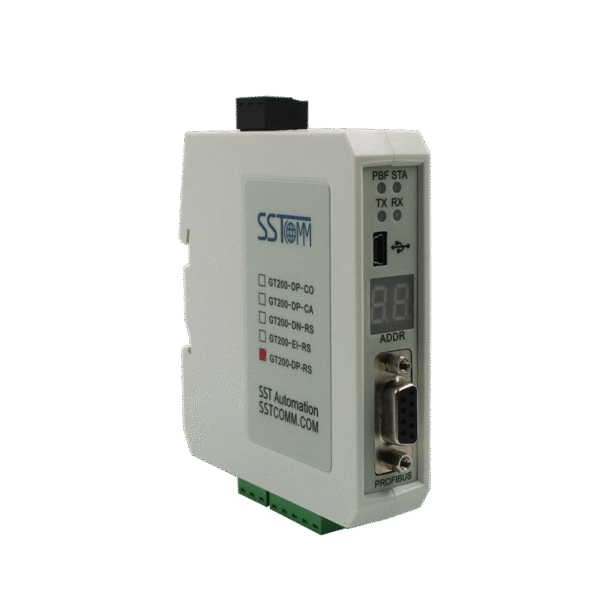

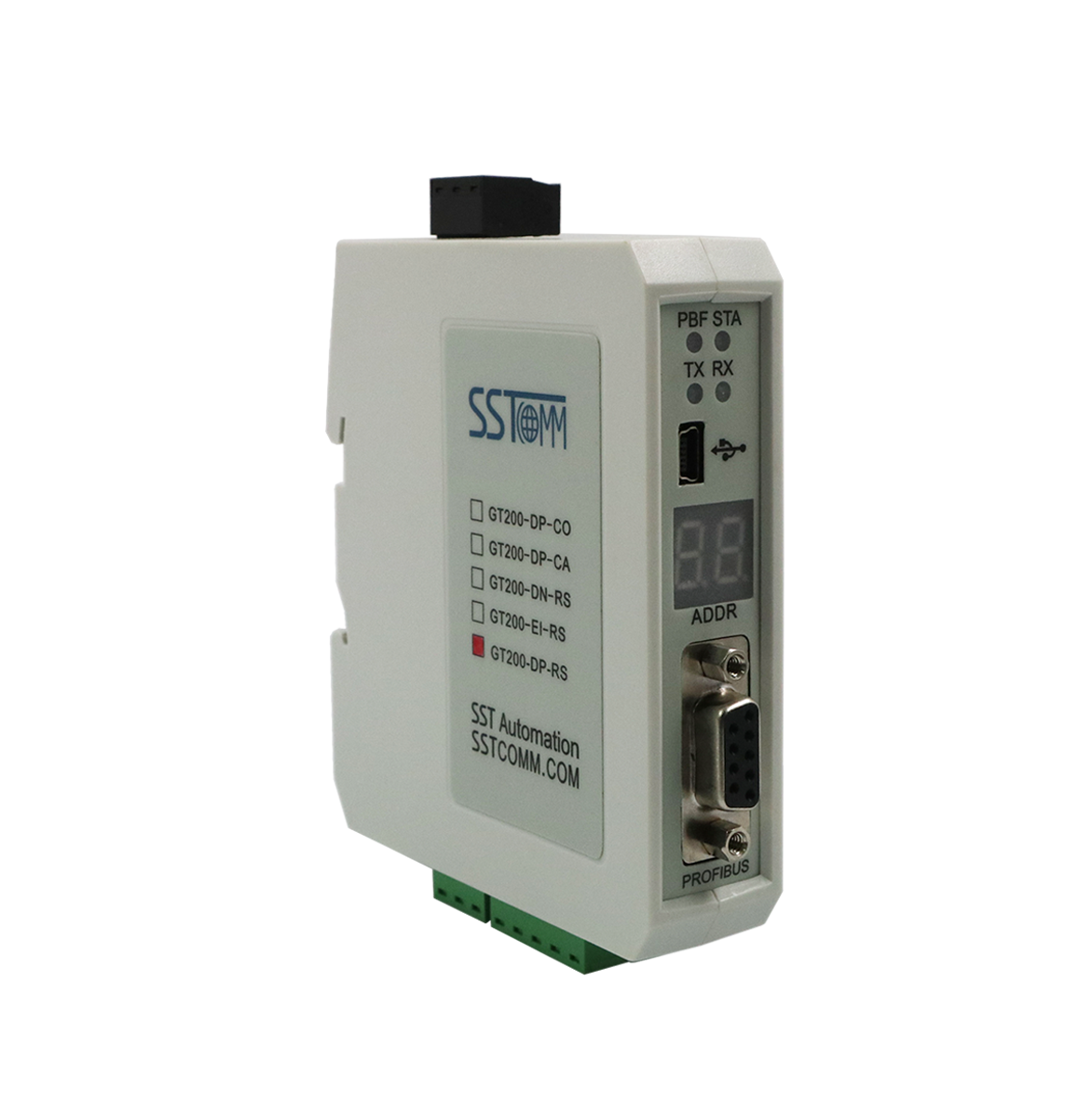

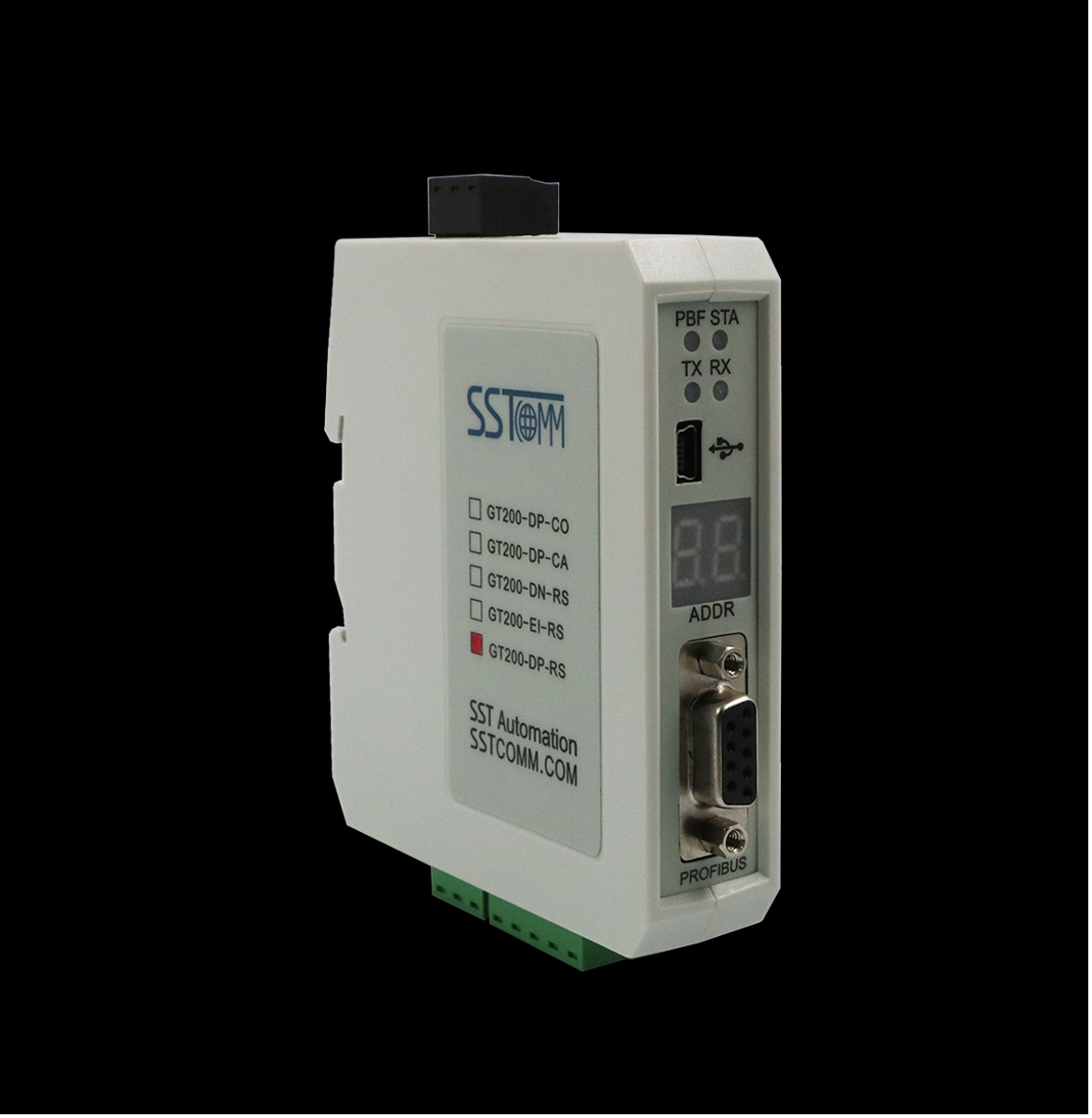

Universal RS485/232 / PROFIBUS DP Gateway

 Technical Specification:

• Acts as the PROFIBUS DP slave device and connect your device with PROFIBUS DP controller Siemens 1500/1200/400/300 PLC. Supports PROFIBUS DP V0/V1.
• Supports Modbus RTU/ASCII protocol and Master/Slave mode.
  • Serial: RS485, RS232, RS422, half-duplex.
  • Serial Baud rate: 300, 600, 1200, 2400, 9600, 19.2 K, 38.4K, 57.6K and 115.2Kbps can be selected.
  • Automatic baud rate detection (9600bit/s~12Mbit/s) on PROFIBUS DP side.
• Serial port RS232/485 Selection via software.
• Supports transparent data transfer mode between PROFIBUS DP PLC and serial devices that does not support Modbus.
• Max Input: 244 bytes; Max Output: 244 bytes; Max Input+Output: 488 bytes.
• Power Supply: 9V-30VDC, Maximum Power Dissipation: 2W.
• Operating Temp.:-40°F to 140°F (-40°C to 60°C); Rel. Humidity: 5%-95% RH (non-condensing).
• Dimension(W*H*D): 1 in*4 in*3.5 in (25mm*100mm*90mm).
• Mounting: DIN Rail Mounting (35mm).
• Protection Level: IP20.
