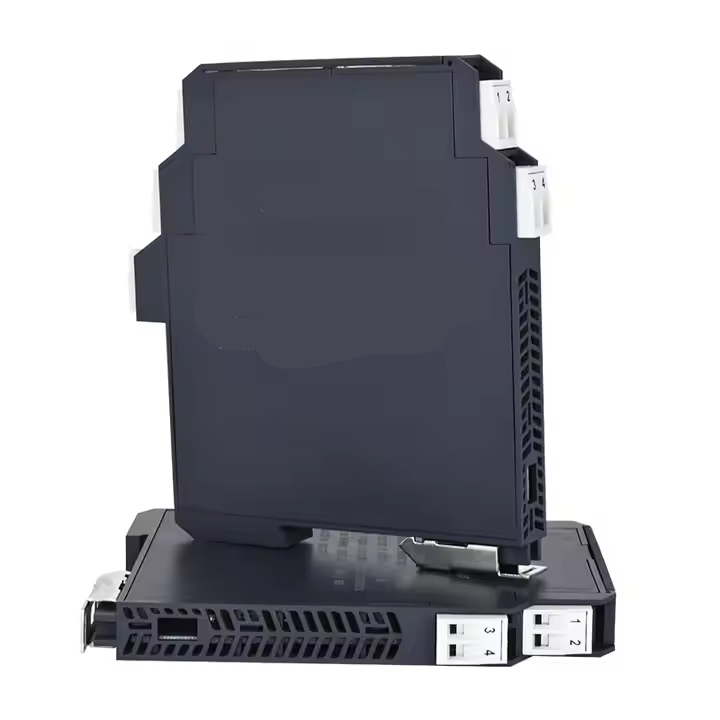

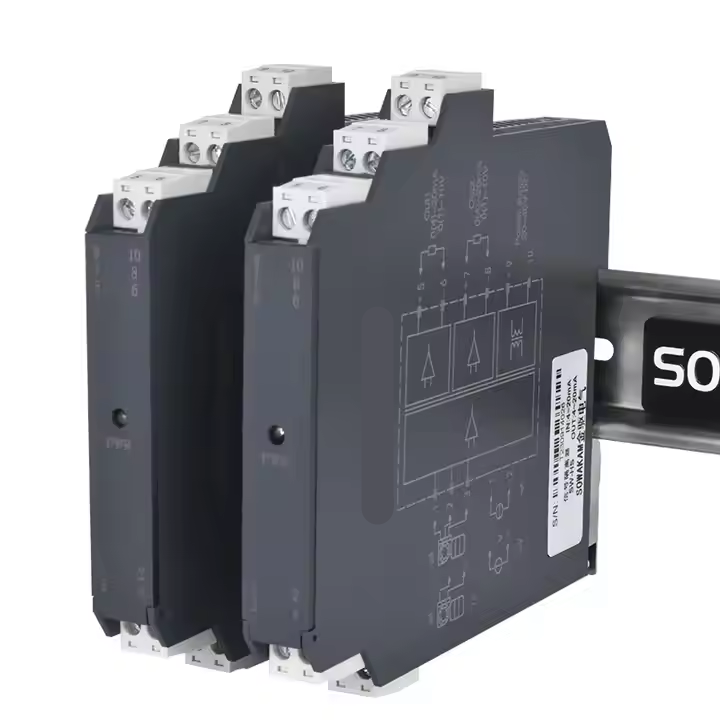

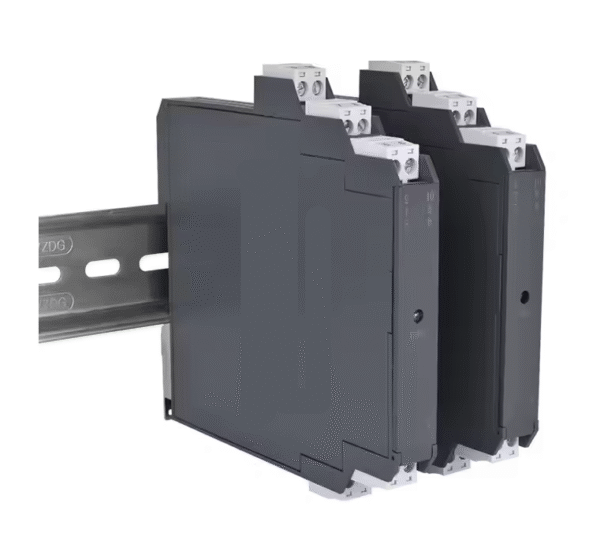

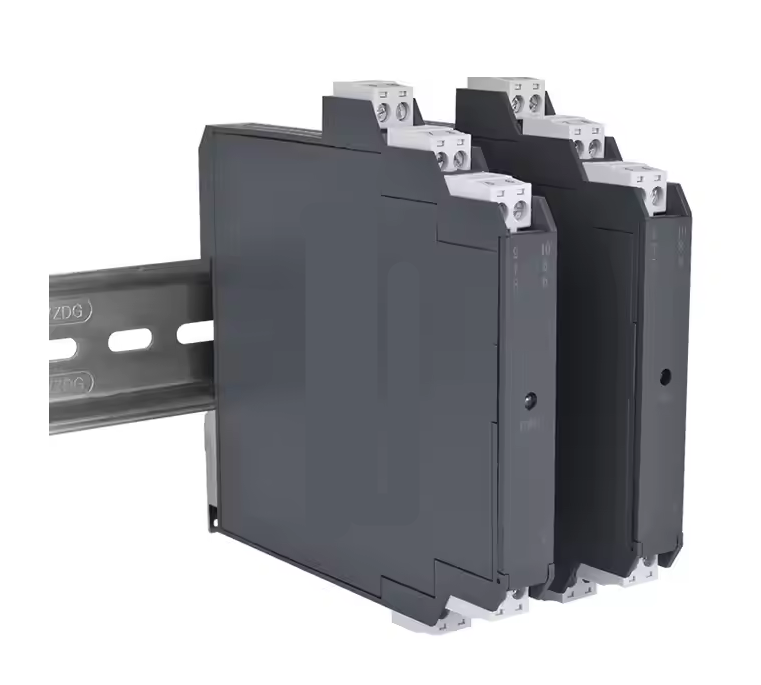

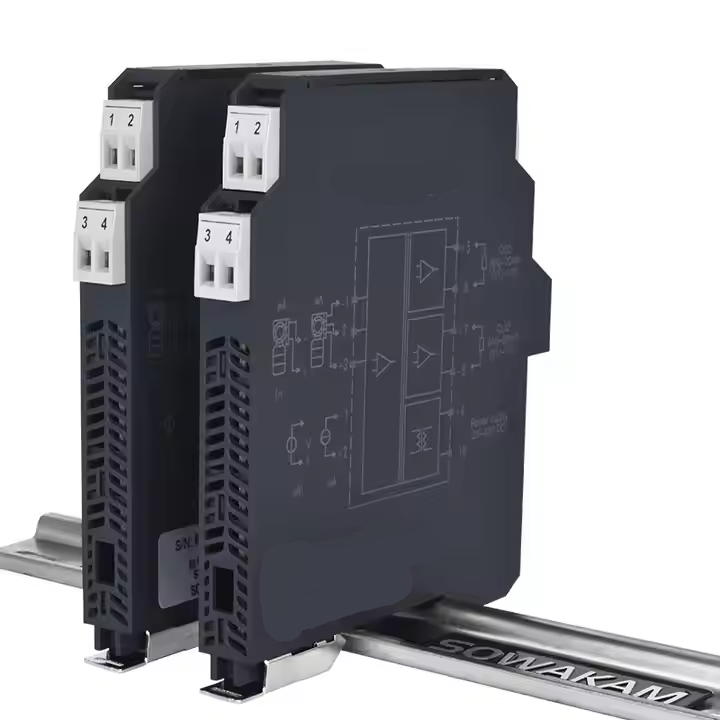

1 Input 2 Outputs DC24V Signal Isolator, 4-20ma for Electrical Equipment

A high-precision signal isolator with 1 IN 2 OUT configurations. Supports 4-20mA, 0-20mA, 0-5V, and 0-10V input/output signals with ±0.1% F.S accuracy. Operates on DC 12V/24V power with a max input current of 25mA. Features low temperature drift (0.05% F.S/℃) and works in -10℃ to 65℃. Ideal for industrial signal conditioning and isolation.

Key Features:
✔ High accuracy (±0.1% F.S)
✔ Wide input/output signal compatibility
✔ Low power consumption
✔ Stable performance in harsh environments

Product Name: XN­-GLN­-A2-­I1-­O1-­P2 DC Signal Isolator
Channel: 1 IN 2 OUT
Input Signal: 4-20mA,0-20mA,0-5V,0-10V
Output Signal: 4-20mA,0-20mA,0-5V,0-10V
Accuracy: ±0.1%F.S
Power supply: DC12V,24V
Max input current: 25mA
Distribution voltage :≥21VDC
Input impedance: ≤25Ω
Temperature drift: 0.05%F.S/℃(-20-70℃)
Operating temperature: -10℃-65℃
